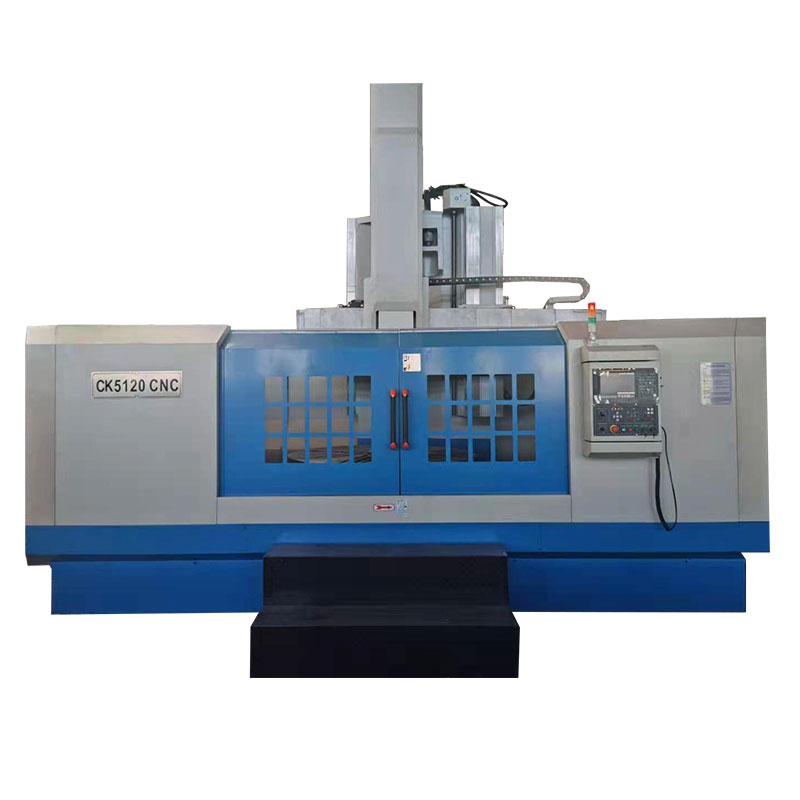

CK5120 Single Column 2000mm Turing Diameter Cnc Vertical Turning Lathe Machine

  • CK5120

  • WMT

Availability:
Quantity:

Product Description

Main features:
1). It is mostly used to process middle-diameter tire mould and flanges, various valves and pipelines, pressure vessels, screw propeller, steamer machine accessories , plastic mould, shafts and other work-piece .
2). It is suitable for processing the internal/external cylindrical surface, conical surface, end face etc
3). Spindle bearings use domestic famous-brand company products.
4). Headstock takes symmetrical structure to make thermal deformation be even, avoiding the spindle center generates offsets.
5). Gears in headstock and guide way are processed by quenching to ensure accurate transmission and high rigidity.
6). Vertical lathe table inlaids with zinc alloy wear-resistant guide guard and can access pressure oil (0.2-0.4MPA) between the rails for improving load-carrying ability of workbench.
7). Vertical lathe casting has passed through strict artificially aged and vibration aging in order to make sure the rigidity and stability of lathe.
Based on excellent processing equipments, strong technical force, perfect inspection way, and inpectable management system.

CK5120 vertical lathe

Specification CK5116 CK5120
Table dia. 1400mm 1800mm
Max. turning dia. 1600mm 2000mm
Max. workpiece height 1000,*1200,*1400,*1600mm 1200,*1600mm
Max. workpiece weight 5t 8t
Max.torque of table 30KN.m 40KN.m
Table rotation speed range 1-160,*(6.3-200)r/min 1-100,*(5-160)r/min
Max cutting force of the vertical holder 22KN 22KN
Range of feed rates(stepless) 0.1-500mm/min 0.1-500mm/min
Horizontal travel of rail head 915mm 1050mm
Ram travel of rail head 800mm,*1000mm 800mm,*1000mm
Beam Travel 850mm 900mm
Fast moving speed of tool heads 2500mm/min 2500mm/min
Beam lift speed 440mm/min 440mm/min
Tool bar section size(Wx D) 30x40mm 30x40mm
Main motor power 30kw 30kw
Overall size(LxWxH) 4000x4350x3060,*3260,*3460,*3660mm 4300x5000x3530,*3920mm
Machine weight 12.5t,*13t,*13.5t,*14.2t 17.5t,*18.5t
