CK60T CNC Lathe with 12 Position & 3 1/2'' Bore

  • CK60T
  • WMT
  • 8459310000
Availability:
Quantity:

Product Description

Features:

  • 45 degree Integrated slant bed structure.easy liquid leaking, high rigidity and good operation.

  • High precision ball screw Rexroth, fast feeding for high working efficiency.

  • All-closed stainless steel protection, strong liquid protection without any water leak.

  • 8-12 position hydraulic turret, easy machining for complex parts.

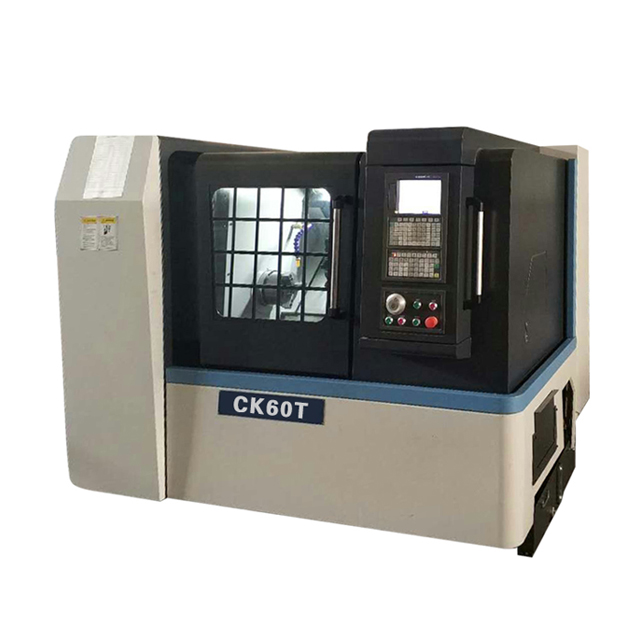

CK60T

CK38T配件

CK38T细节

Specification CK60T
Max.swing over bed Φ570mm
Max. processing diameter Φ500mm
Max.processing diameter on the tool holder Φ230mm
Max.processing length 520/750mm
Spindle head type A2-6
Hydraulic chuck 8/10 inches
Spindle motor power 11-15KW
Max.spindle speed 4200rpm
Spindle bore diameter Φ66mm
Bar diameter Φ52mm
Size of X/Z axis screw 3210mm/4010mm
Max.travel of X axis 270mm
X axis motor torque 11N.M
Size of X/Z Axis linear guideway 45/45
Max.travel of Z axis 610/840mm
Z axis motor torque 11 N.M
center height of 12-station power turret 100mm
center height of 12-station servo hydraulic turret 100mm
Sleeve diameter 80mm
Sleeve travel 80mm
Max. travel of Tailstock 480mm
Tailstock sleeve taper MT-4
Angle 30°
Dimensions (L×W×H) 1800×1320×1438mm / 2100×1386×1660mm
weight 3400/3700kg

Standard accessories:

  • CNC control system: Fanuc or Siemens or Mitsubishi as you select

  • Spindle bearing: Japan NSK or Germany FAG P4 class.

  • Hydraulic chuck: Japan HOWA Hollow

  • Hydraulic cylinder: Japan HOWA Hollow

  • Linear guideway: Japan THK or Germany Rexroth.

  • Leadscrew: Taiwan Yintai precision ball screw

  • Leadscrew bearing: Japan NSK or Germany ESKY

  • Taiwan Liuxing 12 positions

  • Hydraulic station: Made in Taiwan famous brand

  • Alarm lamp

  • Auto-lubricating system

  • Cooling system
