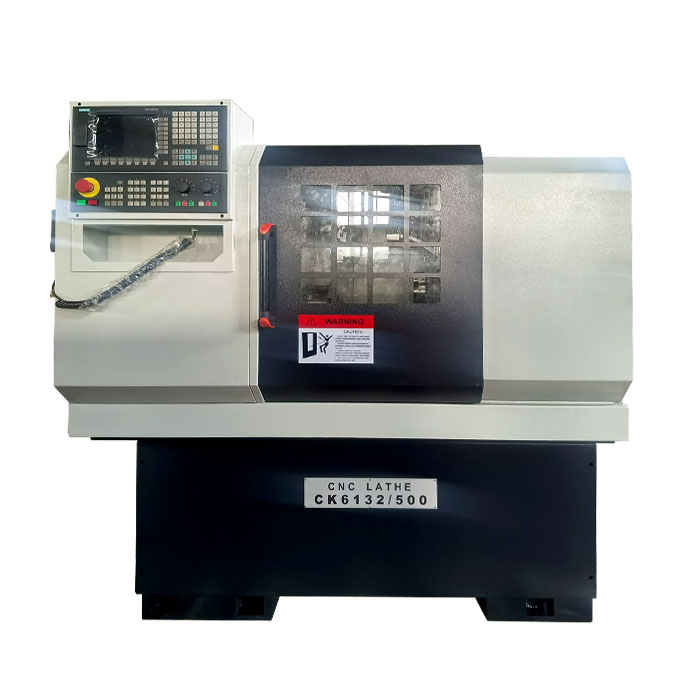

CK6132
WMT
8459310000
| Quantity: | |
|---|---|
Product Description
Features:
High rigidity casting bed
High precision spindle bearing
Bed guideways industively hardened
| Specification | CK6132x500/750/1000mm |
| Max.swing over bed | Φ320 mm |
| Max.swing over carriage | Φ150 mm |
| Distance between centers | 500/750/1000mm |
| Spindle bore | 40mm |
| Spindle nose | A2-5 |
| Rail width | 212mm |
| Taper of spindle bore | MT5 |
| Chuck | 6'' |
| Range of speed (Variable) | 150-2500 rpm |
| X axis travel | 180mm |
| Z axis travel | 500/750/1000mm |
| X/Z rapid speed | 4/7m/min |
| X/Z screw | 2004/4006 |
| Station of toolpost | 4 or 6 |
| Max. section of tool | 20*20mm or 16*16mm |
| Stroke of tailstock sleeve | 100mm |
| Dia./hole of tailstock sleeve | 32mm/MT3 |
| Main motor power | 2.2kw or 3.7kw |
| Coolant pump power | 120w |
| Overall dimenstion (L*W*H) | 1600/1920/2100x1120x1750mm |
| Packing size (L*W*H) | 1815/2120/2300x1300x2000mm |
| NW/GW | 800/900/1050kg;950/1050/1200kgs |
