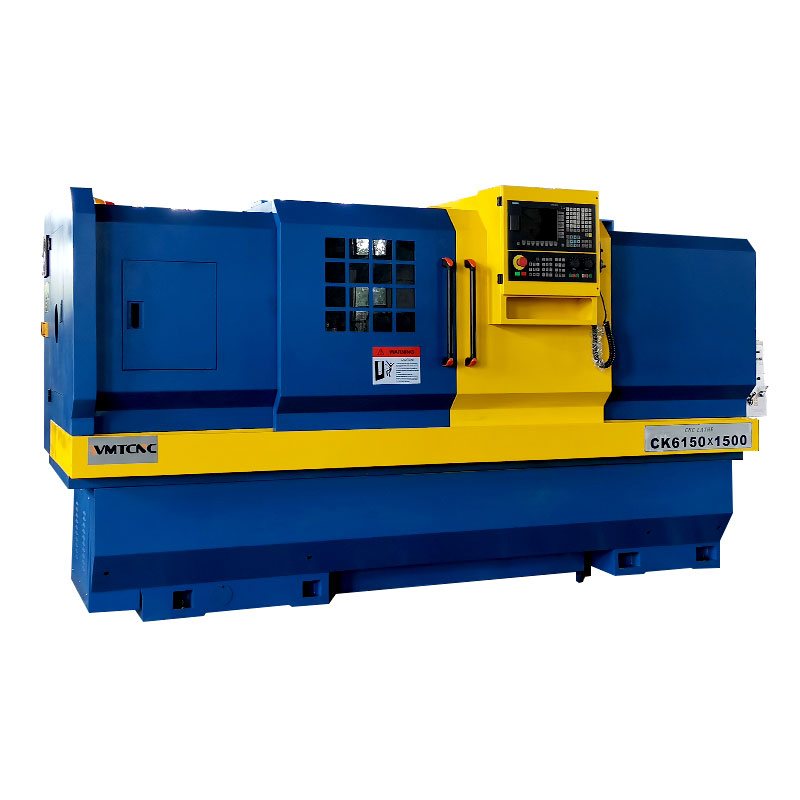

CK6150-1500 Horizontal Flat-Bed CNC Lathe for Threads Making

  • CK6150

  • WMT

  • 8459310000

Availability:
Quantity:

Product Description

Main Feature

  • High rigidity casting bed
  • High precision spindle bearing

  • Bed guideways industively hardened
CK6150主图01 CK6150主图02


Specification
CK6150
Max.swing over bed
Ф500mm
Max.swing over carriage
Ф280mm
Max. cutting length
750/1100/1500mm
Rail width
400mm
Spindle nose
A2-8
Spindle bore
Ф82mm or Ф86mm;Optional Ф105mm
Taper of spindle bore
MT6
Chuck size
10"
Range of spindle speed
150-1600rpm or 3 steps:30-150,,10-500,150-1600rpm
X-axis travel
330mm
Z-axis travel
750/1100/1500mm
X/Z rapid speed
5/8m/min
X/Z screw
3206/5010
Electronic turret
4 or 6 or 8
Max.section of tool
25x25mm
Stroke of tailstock sleeve
150mm
Diameter/Hole of tailstock sleeve
Ф75mm/MT4
Main motor power
7.5kw or 11kw
Coolant pump power
180w
Overall dimensions L x W x H
2100/2420/2860/3320x1600x1830mm
Packing size L x W x H
2300/2620/3060/3520x1800x2030mm
Net weight
2700/2750/3100/3350kg
Gross weight
2600/3000/3450/3650kg
