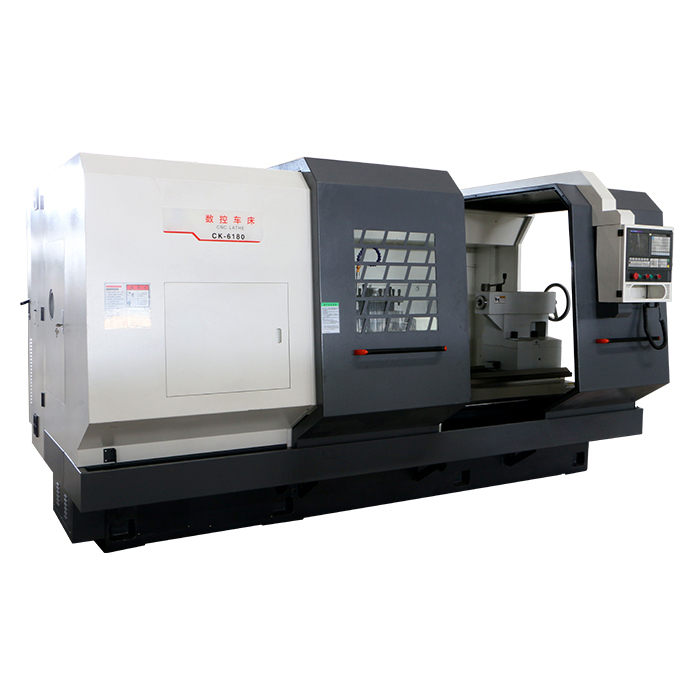

CK6180
WMT
8459310000
| Quantity: | |
|---|---|
Product Description
Feature
High rigidity casting bed
High precision spindle bearing
Bed guideways industively hardened
| Specification | CK6180 | |
| Max dia.swing over bed(mm) | 800 | |
| Max dia.swing over cross slide(mm) | 480 | |
| Max.length of work-piece(mm) | 1500 | |
| Width of bed(mm) | 550 | |
| Spindle bore(mm) | 104 | |
| Power of spindle motor(kw) | 11 | |
| Range of spindle speed(r/min) | L 40-125, M 110-350, L 290-950 | |
| X/Z rapid traverse(r/min) | 4000/8000 | |
| X-axis motor | Speed(r/min) | 1500 |
| Torgue(N.m) | 15 | |
| Power(kw) | 2.3 | |
| Z-axis motor | Speed(r/min) | 1500 |
| Torgue(N.m) | 18 | |
| Power(kw) | 4.7 | |
| Tailstock quill | Diameter(mm) | 100 |
| Travel(mm) | 250 | |
| Taper | Morse NO.6 | |
| Electric tool-post | Model | HA21240 |
| No.of tool stations | Vertical four-station | |
| Dimension(mm) | 240×240 | |
| Turret indexing time(s) | 4.1 | |
| Chuck | K11-320 three jaw chuck | |
| Positioning accuracy(mm) | 0.02 | |
| Repositioning accuracy(mm) | 0.01 | |
| Overall dimensions(L*W*H)(mm) | 3700*1755*1800mm | |
| Machine weight(kgs) | 5500 | |
