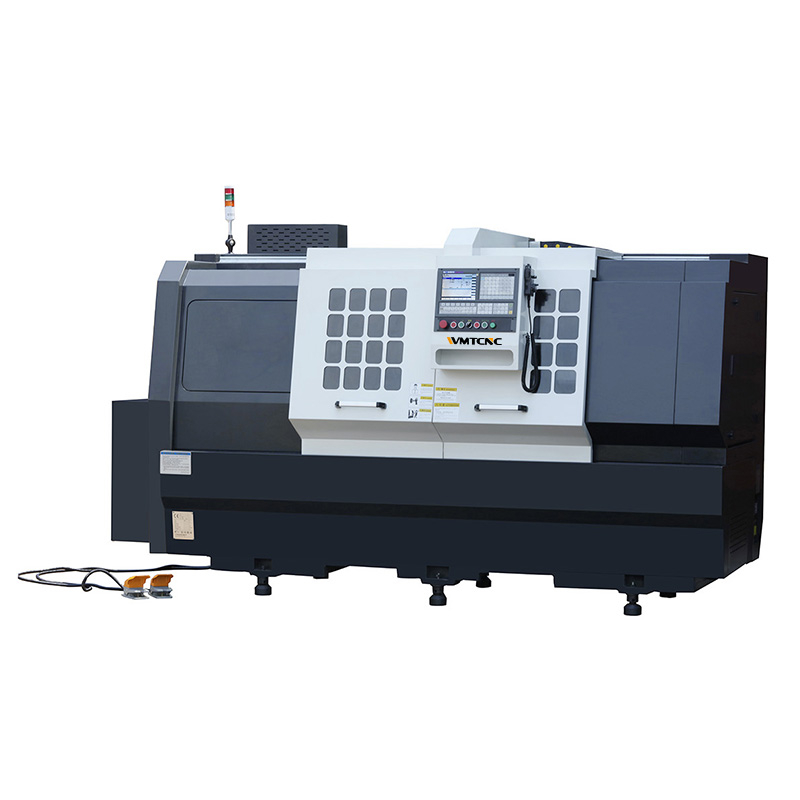

CKX500 CNC Parallel Lathe Machine with High Quality Turret And Tailstock

  • CKX500

  • WMTCNC

  • 8459310000

Availability:
Quantity:

Product Description

Features:


1. Comprehensive priced CNC Turning Center – when you need a high quality CNC lathe that has BOTH–a high quality turret and tailstock.

2. Built atop the uniquely designed one-piece solid cast base and lathe bed found in the larger CKX lathe models.

3. The tailstock is set on its own guide way, parallel to the main bed ways.

4. This structure is highly rigid and accurate.

5. Linear guideways are protected by telescoping stainless steel covers--maximizing ballscrew protection and extending tool life.

6. Center mounted ball screws eliminate torque--providing better dynamic properties and greater stability over the life of the machine.

7. Servo drives on X/Z axes.

8. Spindle can be driven by VFD or Servo.

9. Various control systems, chucks and tool mounting systems are available.


Specification:


SpecificationUnitCKX500
CapacityChuck sizeinch10",8"
Max. swing dia. over bedmmØ500
Max. length of workpiecemm700/1000/1500/2000(C2C)
550/850/1350/1850(chuck)
*450/750/1250/1750(turret)
Max. swing dia. over slidemmØ350
SpindleSpindle boremmØ81*Ø62
*Ø86
Max. dia. of through-holemmØ70*Ø52
*Ø75
Spindle nosetypeA2-8*A2-6
Spindle speedrpm1600*2000
*3000
*2500*4000
Main motor powerkW7.5/11,*11/15,*15/18.5
AxisX/Z travelmm280/700,1000,1500,2000
X/Z rapid traversem/min15/15,*20/20
Tool postType
4-station toolpost
*8-station turret
*gang type tooling
No. of tool stationsnos4+2,*8+2,*Driven 12
TailstockType of tailstock
Manual,*Hydraulic
Taper of tailstock quillMTMT5
Travel of tailstock quillmm100
StructureBed Type/guideway
Flat/LM
Bed widthmm500
OthersPower capacitykVA15
Overall dimension (LxWxH)mm3200X1600X2010(shortest)
Weight (about)kg4000/4300/4800/5300
