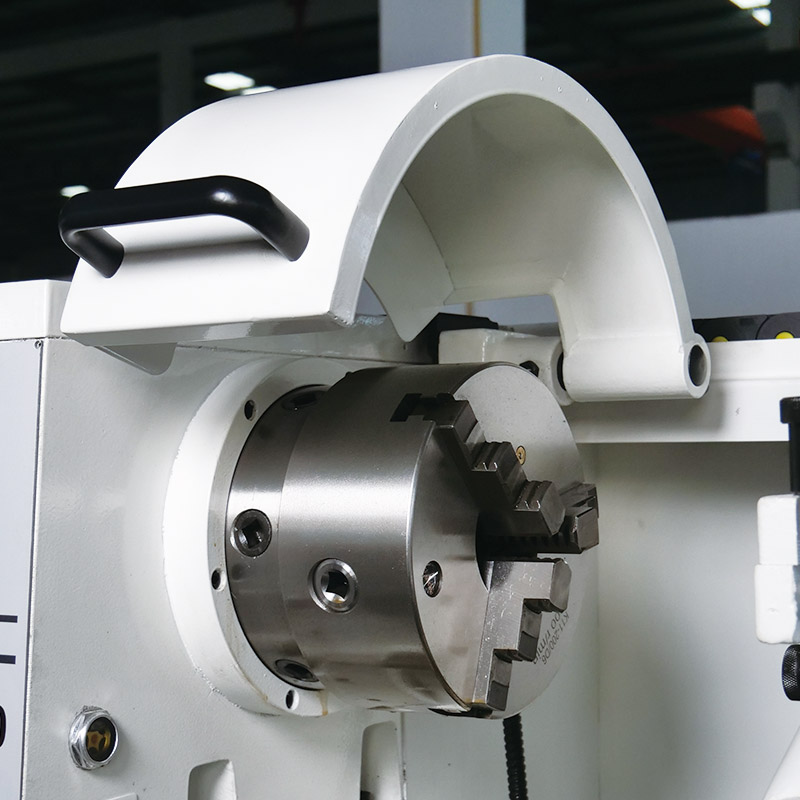

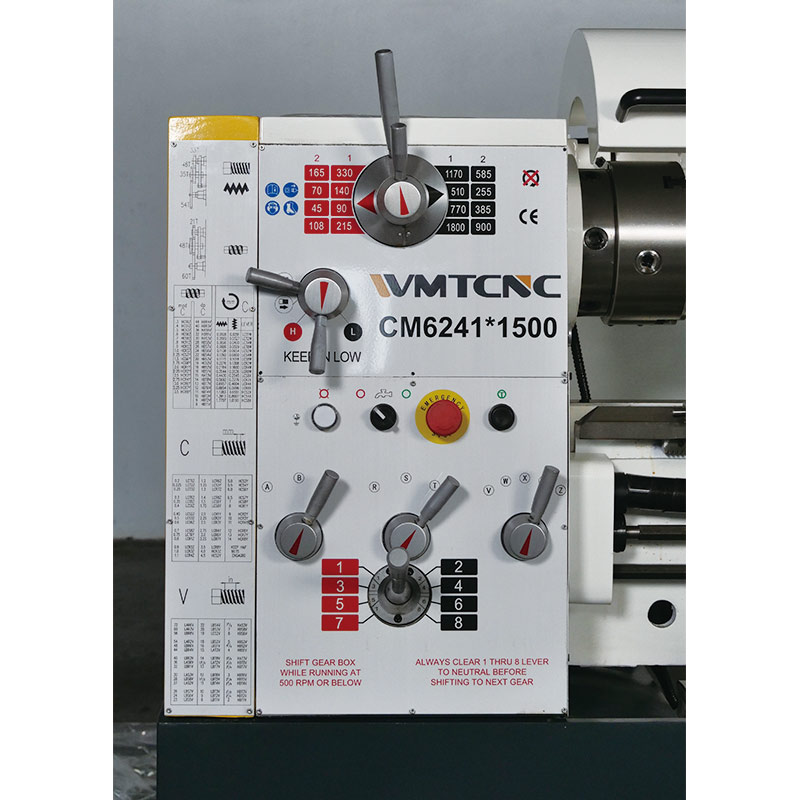

Specification | CM6241×1000 /1500mm |
Swing over bed | 410mm |
Swing over cross slide | 255mm |
Swing in gap | 580mm |
Length of gap | 19mm |
Distance between centers | 1000mm /1500mm |
Center height | 205mm |
Width of bed | 250mm |
Spindle nose | D1-6 |
Spindle bore | 52mm |
Taper of spindle bore | MT6 |
Range of spindle speed | 16 changes 45-1800r/min |
Travel of compound rest | 102mm |
Max.travel of cross slide | 210mm |
Leadscrew pitch | 4T.P.I. |
Max.Section of tool | 20×20mm |
Longitudinal feeds range | 0.05-1.7mm/rev(0.002-0.067/rev) |
Cross feeds range | 0.025-0.85mm(0.001-0.0335/rev) |
Cross feeds range | 0.025-0.85mm(0.001-0.0336/rev) |
Inch threads range | 45kinds 2-72T.P.I |
Diametrical pitches range | 21kinds 8-44D.P. |
Module pitches range | 18kinds 0.3-3.5M.P. |
Dia.of tailstock sleeve | 50mm |
Travel of tailstock sleeve | 120mm |
Taper of tailstock sleeve | MT4 |
Power of main motor | 2.2/3.3kw(optional 3.0/4.5kw) |
Power of coolant pump | 90w |
Overall dimension | 1940/2440×850×1300mm |
Packing size | 2060/2560×900×1640mm |
N.W/G.W | 1500/1750kgs 1550/1800kgs |
