CNC Horizontal Boring Machine J5TK6411C Horizontal Boring Milling Machine

Share to:

CNC Horizontal Boring Machine J5TK6411C Horizontal Boring Milling Machine

Model:
J5TK6411C
Brand:
WMTCNC

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Main Features:

1 This machine equipped with a single column, side hung box, four-point positioning worktable, manual rotation.

2 X, Y, Z axis controlled by CNC system, could realize simultaneous motion.
3 Boring axis flexible and axis of facing head are controlled by servo motor, can realize automatic processing.
4 X, Y, Z axis with rectangular sliding guide. Professional plastic paste process, shock absorption, and high precision.
5 The spindle box with counterweight balance, spindle and axis of facing head are controlled by AC servo motor.

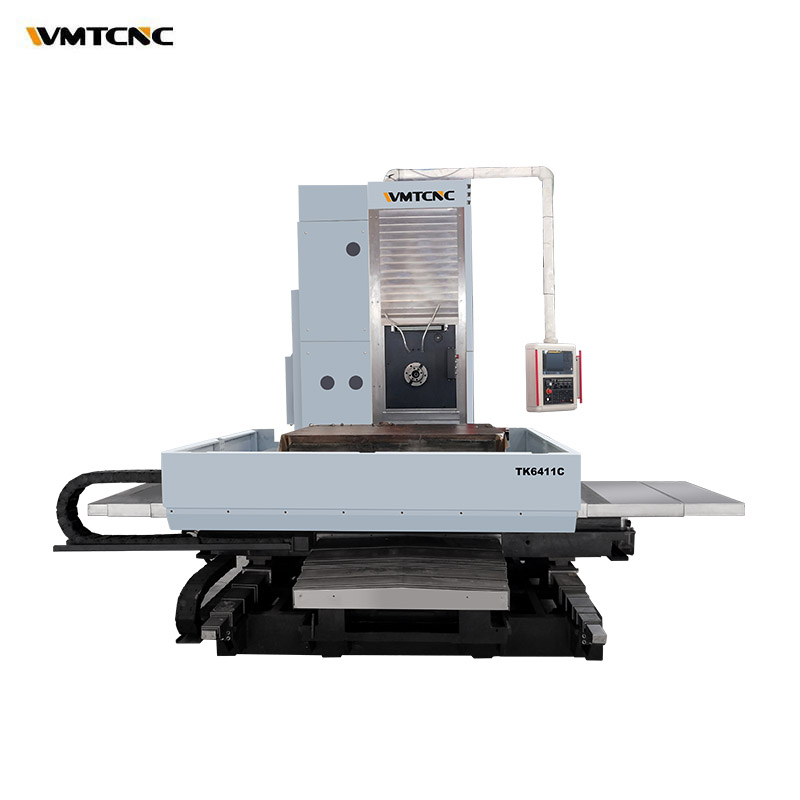

TK6411C-wmt

Specification	J5TK6411C
Worktable size	1350×1000mm
Max. loading of worktable	5000kg
Spindle diameter	130mm
Spindle taper (7:24)	NO. 50
Spindle speed	12-1500r/min,*12-1200r/min
Spindle power	15/18.5kw
Max. spindle torque	1500Nm
Rotary table speed	N/A
X axis travel	1600
Y axis travel	1200,*1600mm
Z axis travel	1200mm
W axis travel	550mm
Horizontal rotary table slider stroke U	N/A
Table rotation B	equal division 5° ,1°, 0.001°
X/Y/Z axis feed speed	5-5000mm/min
W axis feed speed	5-5000mm/min
B axis feed speed	N/A
U axis feed speed	N/A
X/Y/Z axis rapid feed speed	10m/min
W axis rapid feed speed	5m/min
B axis rapid feed speed	5.5r/min
U axis rapid feed speed	N/A
Tool shank type	BT50
Retention knob standard	JB3381. 2-83(50#)
X/Y/Z/W axis positioning accuracy	0.03mm
B axis positioning accuracy of any angle	10"
Four point positioning of worktable	N/A
X/Y/Z/W axis re-positioning accuracy	0.02mm
B axis re-positioning accuracy of any angle	4"
Total power capacity	60kVA
Machine dimensions	6000×5600×3600mm
CNC system	FANUC-0i Mf Plus
