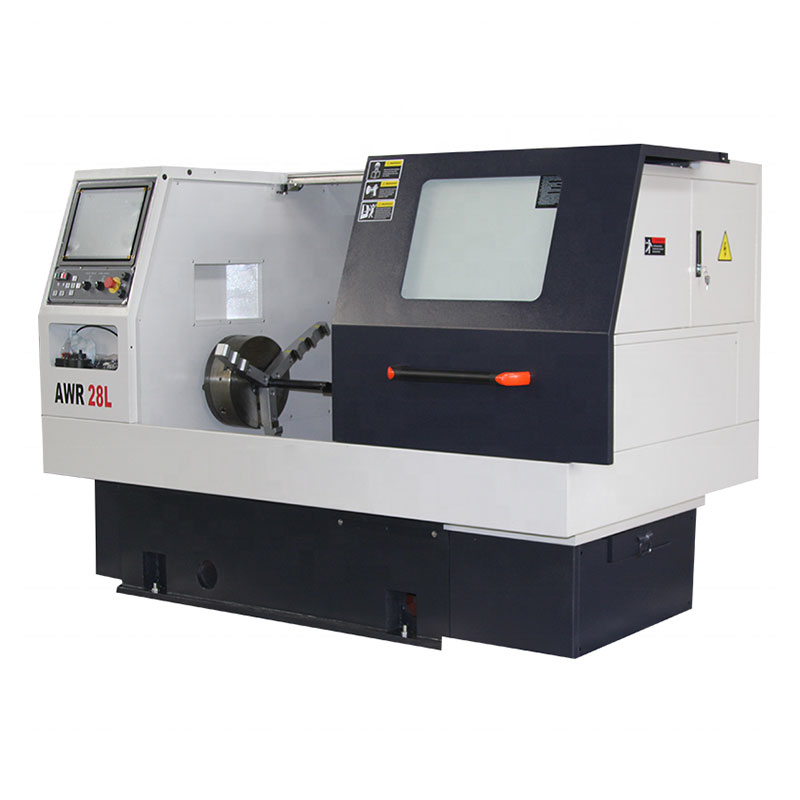

CNC Machine AWR28L Rim And Wheels Repair Lathe Machine

  • AWR28L
  • WMTCNC
  • 8459310000
Quantity:

Product Description

Features:

  • 15″ industry pc with touch screen

  • 26″ Size of alloy wheel

  • 12″ 3 Jaws chuck ( with special soft jaws)

  • Digitizing probing system

  • Alloy Wheel repair Digital Optimization Software

  • 4 position tool holder

  • Diamond cutting tips( 3 sets) and CNC tool shank (2 pieces)

  • Full enclose ( security guard door)

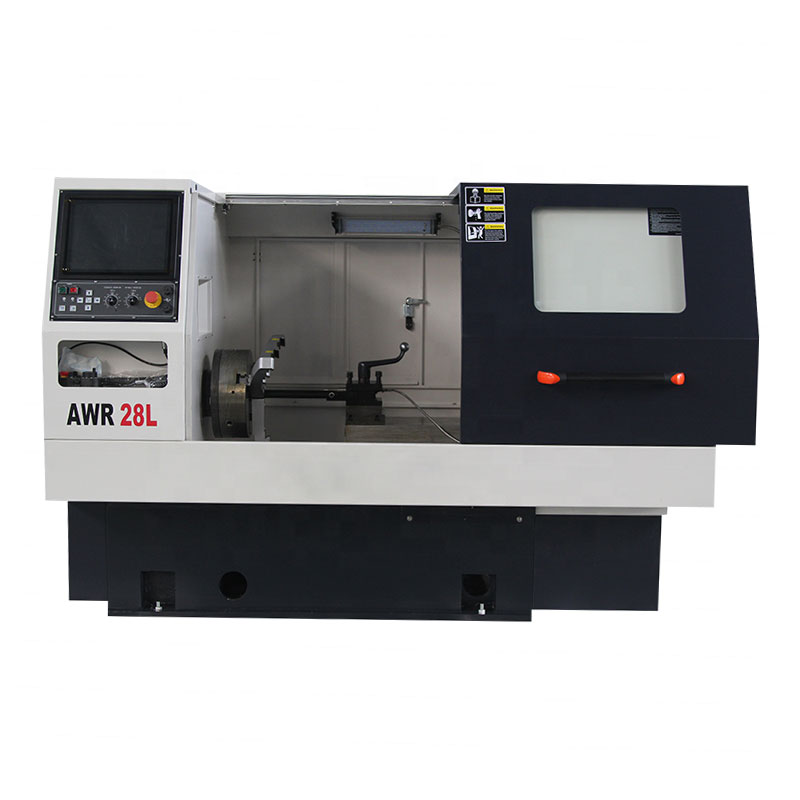

AWR28L主图01

Item Unit AWR28L
Capacities Max. Swing Diameter Over Bed mm 840
Max.Wheel Capacity inch 28″
Chuck Size mm 325
Travel Axis Travel mm X : 365;    Z : 200
Positioning Accuracy for X/Z mm 0.01
Re-precision Accuracy for X/Z mm X 0.007, Z 0.008
Spindle Spindle Speed r/min 0-3000
Spindle Taper MT 5#
Spindle Bore mm 60
Turret Tool Number PCS 4
Feeds Rapid Feeding m/min 10
Motor Main Motor power
4 kw 380V 50HZ or as required
Others Overall Dimension  (L×W×H ) mm 1900*1300*1600
Weight kg 1300
