Product Description
Features:

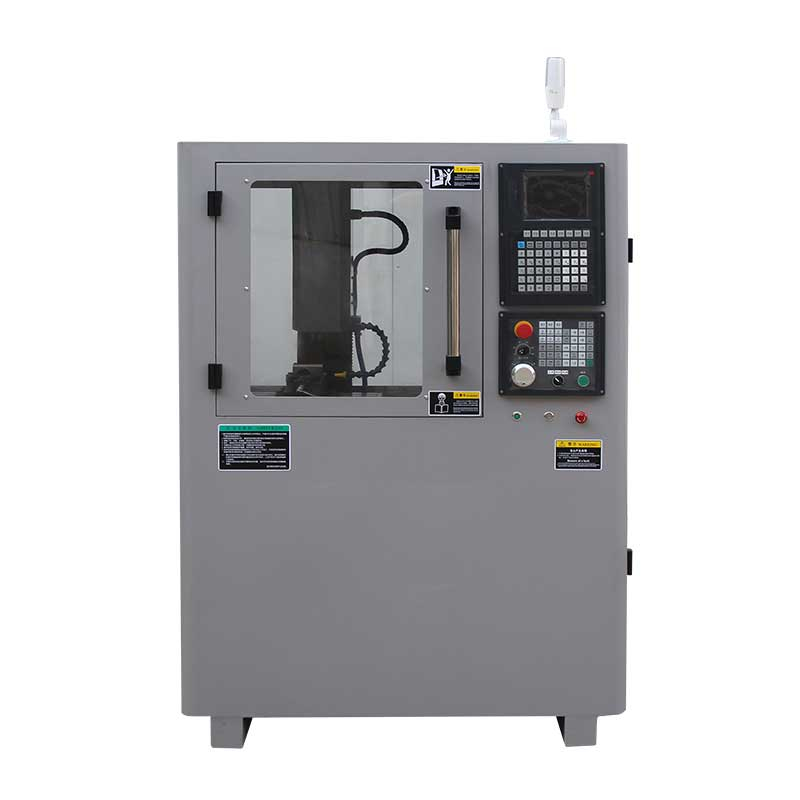

XK7113C:
Servo main motor.
Suitable for casting and steel processing.
Lower noise and high precision.
Vertical controller panel with easy operation and beauty.
Rigid tapping function.
Suitable for mould machining and production in lots.
XK7113D:
12000rpm high-speed electrical spindle unit.
With engraving function.
Suitable for casting and steel processing.
Lower noise and high precision.
Vertical controller panel with easy operation and beauty.
Suitable for mould machining and production in lots and engraving.
| Specification | XK7113A/B | XK7113C | XK7113D |
| Max. drilling dia. | 13mm | 16mm | 13mm |
| Max. milling dia. | 13mm | 16mm | 13mm |
| Max. tapping dia. | ---- | M8 | ---- |
| Spindle speed | 3000rpm | 3000rpm | 12000rpm |
| Spendle center to column distance | 189mm | 194mm | 200mm |
| Spindle nose to table distance | 205mm | 215mm | 215mm |

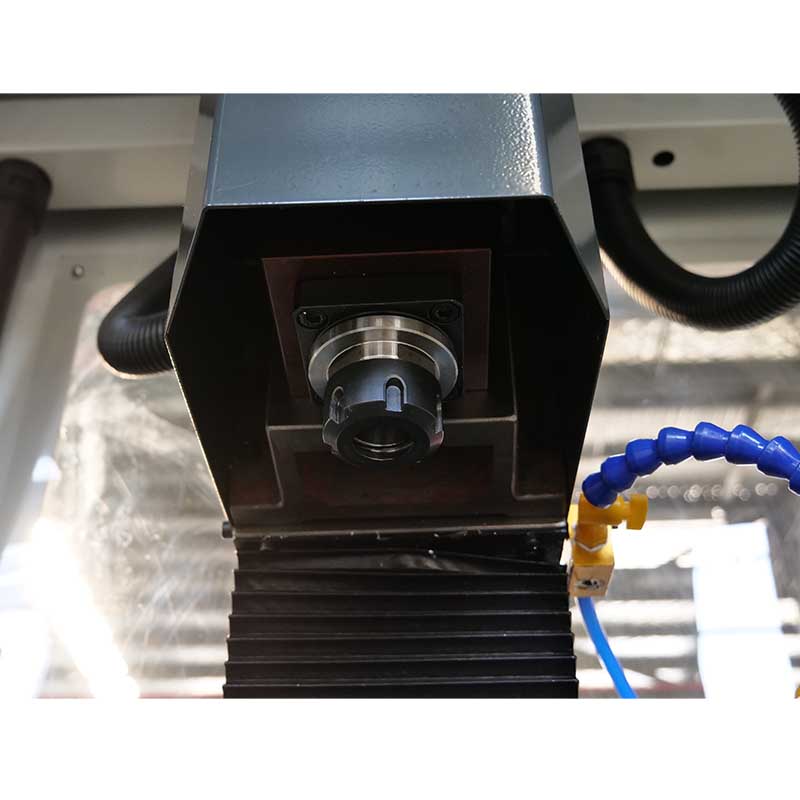

| Spindle taper | ER20 | ER25 | ER20 |
| T-slot size （NxWxD） | 3/12/40mm | 3/12/40mm | 3/12/40mm |

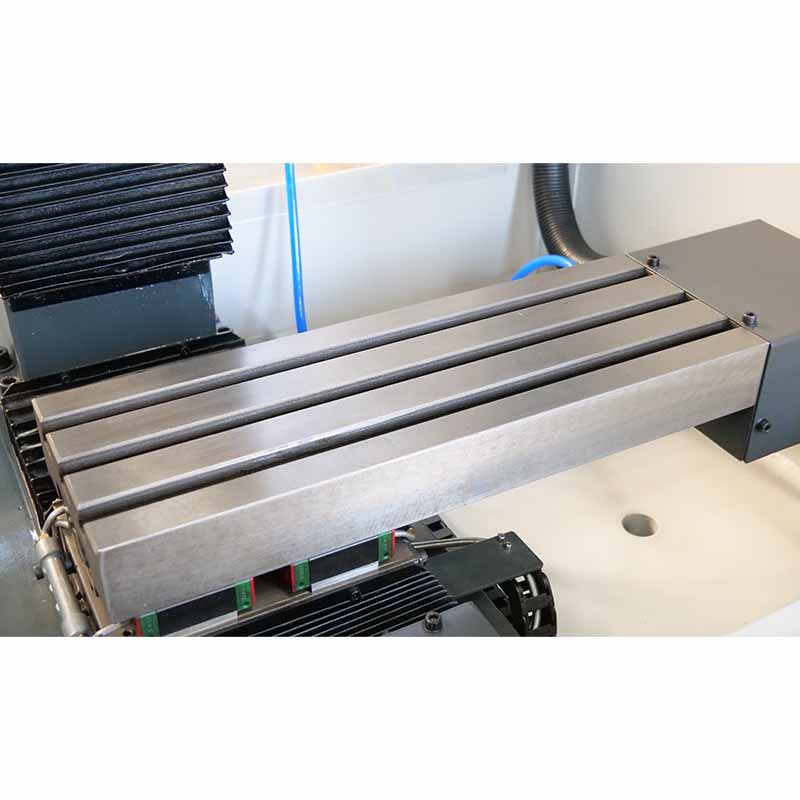

| Worktable size | 400X140mm | 400X140mm | 400X140mm |
| X axis travel | 220mm | 220mm | 220mm |
| Y axis travel | 120mm | 120mm | 120mm |
| Z axis travel | 200mm | 200mm | 200mm |
| Main motor power | 400W | 1.2KW | 2.2KW |
| Main motor type | Brushless motor | Servo motor | Frequency motor |
| Feeding motor torque | 2.6/2.6/3.2 N.m | 2.0/2.0/3.0 N.m | |
| Feeding motor type | Stepper motor with open loop | Stepper motor with closed loop, Z axis with brake | |
| Controller system | Mach 3 | After-CNC 1500MDC | |
| Overall size(LxWxH) | 590x590x780mm | 1100x600x1380mm | |
| N.W/G.W | 90/115KGS | 310/330KGS | |

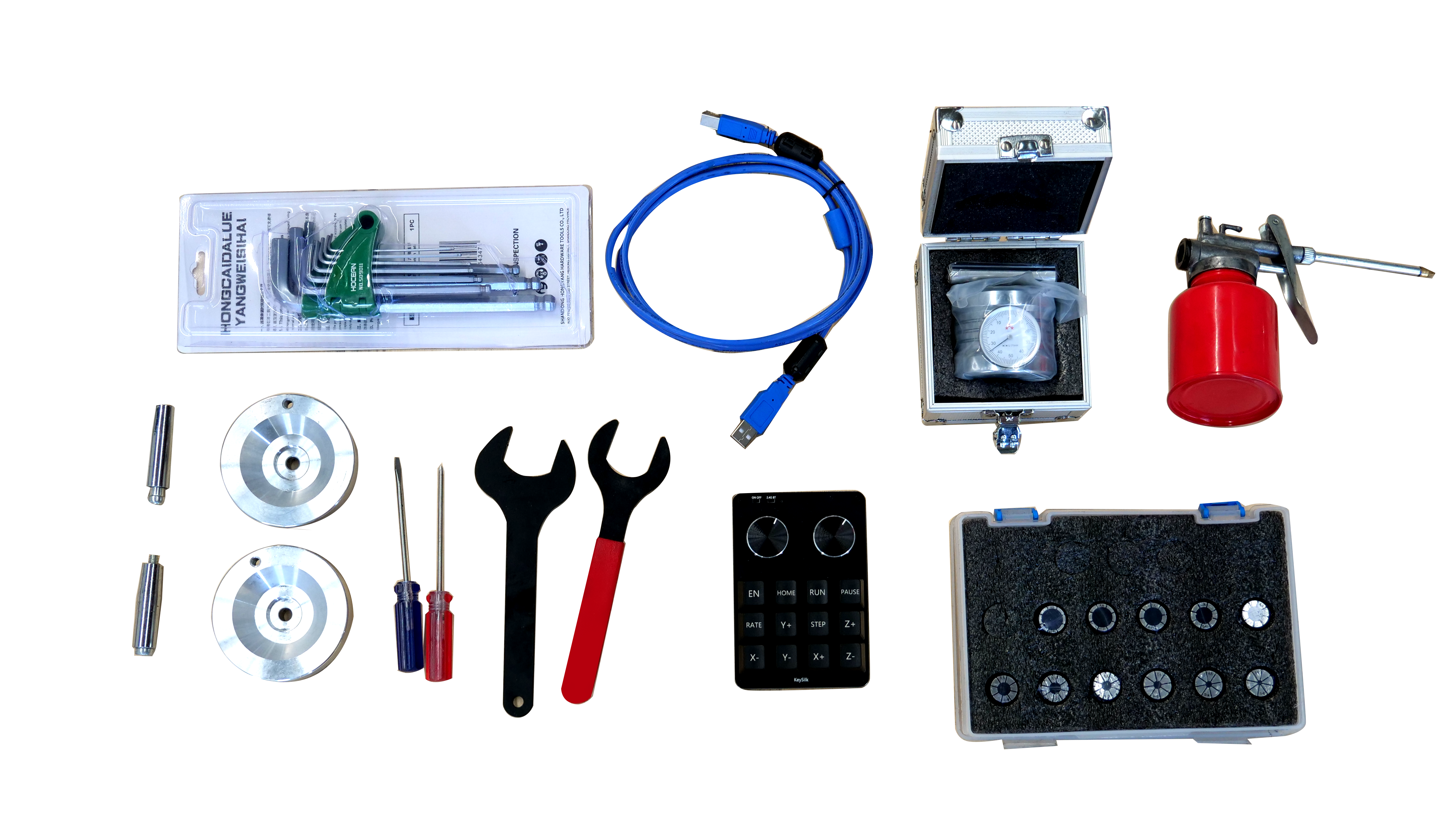

Standard access.:
Wrenches
Oil gun
Allen wrench
Toolbox with tools
Screwdriver
