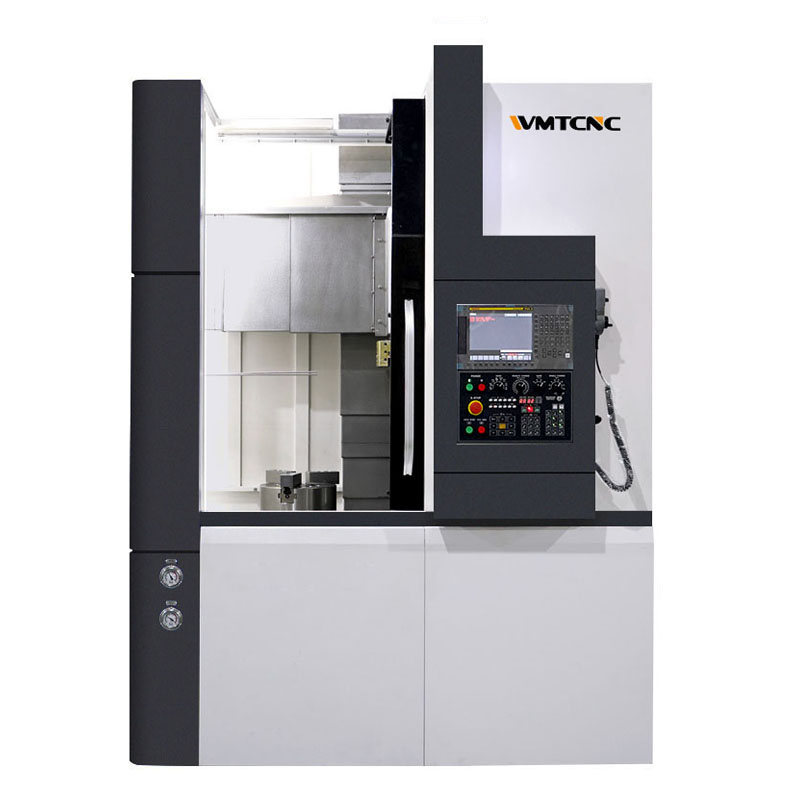

VK600
WMT
| Quantity: | |
|---|---|
Product Description
Main features:
1. Space saving, footprint 50% smaller.
2. Easy setup.
3. No deflection from gravity.
4. Weight doubled, power tripled.
5. Standard 8-station turret-stands up for versatile production requirements.
6. Compact design, plus, square base casting minimizes floor space requirements and increases anti-vibration forces.
7. High speed spindle unit with powerful servo drive motor-offers high speed finish cutting, and low speed heavy duty cutting in the same machine.
Specification:
| Specification | Unit | VK600 | |
| Capacity | Max. swing dia | mm | Ø750 |
| Max. cutting dia | mm | Ø600 | |
| Max. cutting height | mm | 600 | |
| Chuck | Chuck type | Hydraulic chuck | |
| Chuck size | inch | 21"*18" | |
| Spindle | Spindle speed | rpm | 1000,*Gear box |
| Main motor power | kW | 15/18,*18.5,*22 | |
| Spindle nose | A2-11 | ||
| Turret | Center height | mm | 160 |
| No. of tool | nos | 8-station | |
| Tool shank size | mm | 40X40 | |
| Axis | X/Z axis travel | mm | 450(+400:-50)/600 |
| X/Z axis rapid traverse | m/mm | 15/18 | |
| Accuracy | Positioning X/Z | mm | 0.015/0.015 |
| Repeatability X/Z | mm | 0.005.0.008 | |
| Matching | IT | IT6 | |
| Others | Power consumption | kVA | 35 |
| Overall dimension (LxWxH) | mm | 2300X2000X3400 | |
| Weight (about) | kg | 11500 | |
