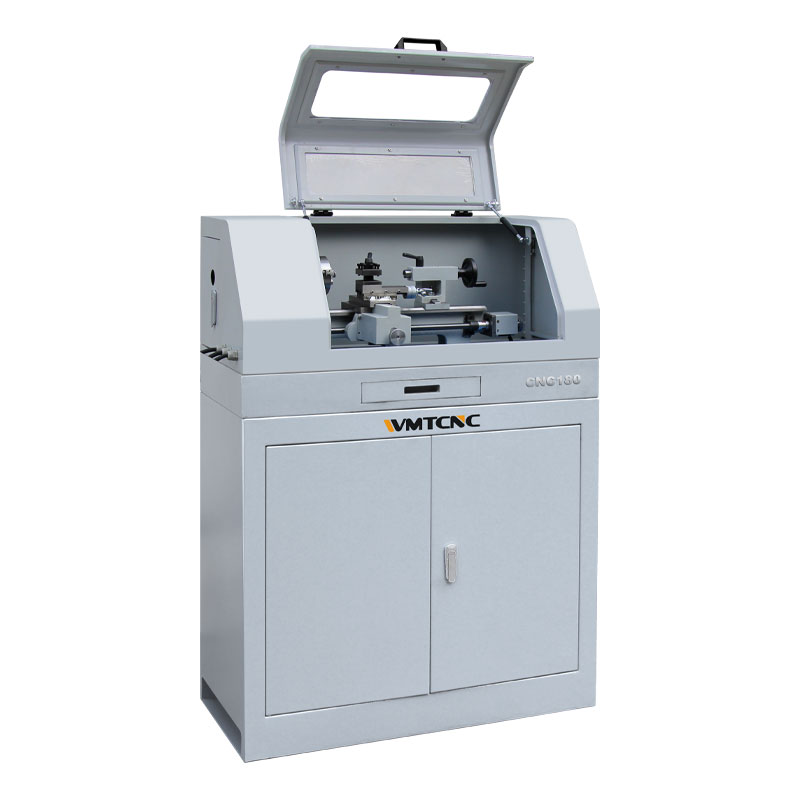

CNC180
WMTCNC
8458910000
| Quantity: | |
|---|---|
Product Description
Features:
For education cnc lathe machine.
Small size and cheap price.
Lower noise and high precision.
| Specification | CNC180 |
| Capacity | |
| Max. swing over bed | 180mm |
| Distance between centers | 300/350mm |
| Rail width | 85mm |
| Spindle | |
| Spindle bore dia. | 20mm |
| Spindle taper | MT3 |
| Spindle speed | 50-2250rpm |
| No. of tool stations | 4-position |
| Axis | |
| X-axis travel | 60mm |
| Z-axis travel | 250mm |
| X rapid speed | 800mm/min |
| Z rapid speed | 1200mm/min |
| Motor | |
| Spindle motor power | 400/550kw |
| Main motor type | Brushless motor |
| Controller system | Mach 3 |
| X motor torque | 1.5N.m |
| Z motor torque | 2N.m |
| Min. setting unit | 0.001mm |
| Turret | |
| Type | Manual type |
| No. of tool stations | 4 position |
| Max. section of tool | 8x8mm |
| Tailstock | |
| Tailstock dia. | 20mm |
| Tailstock tavel | 50mm |
| Tailstock taper | MT2 |
| Machine Dimensions | |
| Packing size(without stand) | 900X400X1250mm |
| Overall size | 900X400X700mm |
| N.W(without stand) | 150kg |
| N.W | 130kg |
