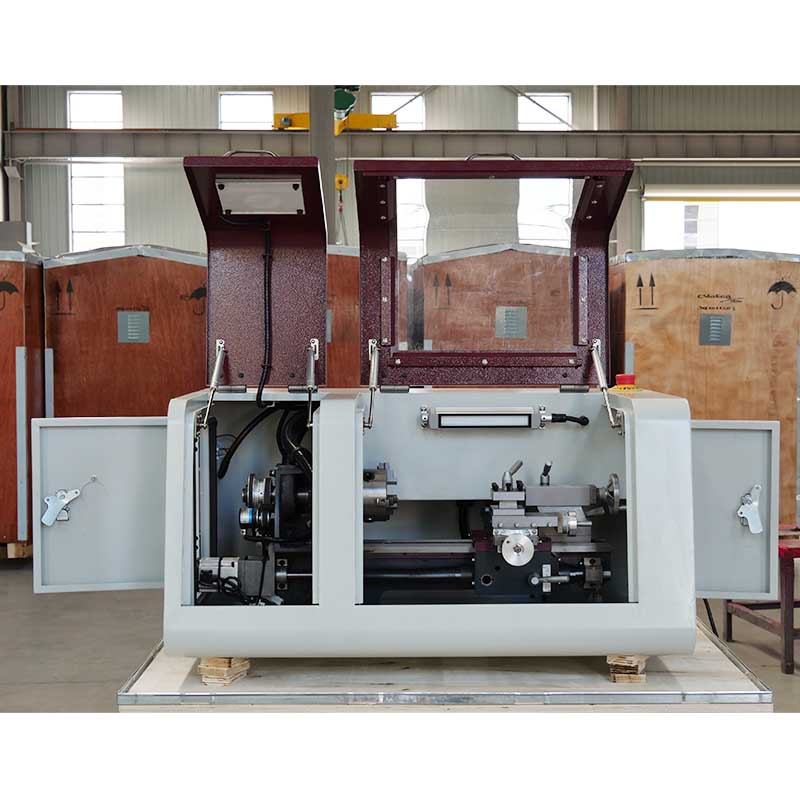

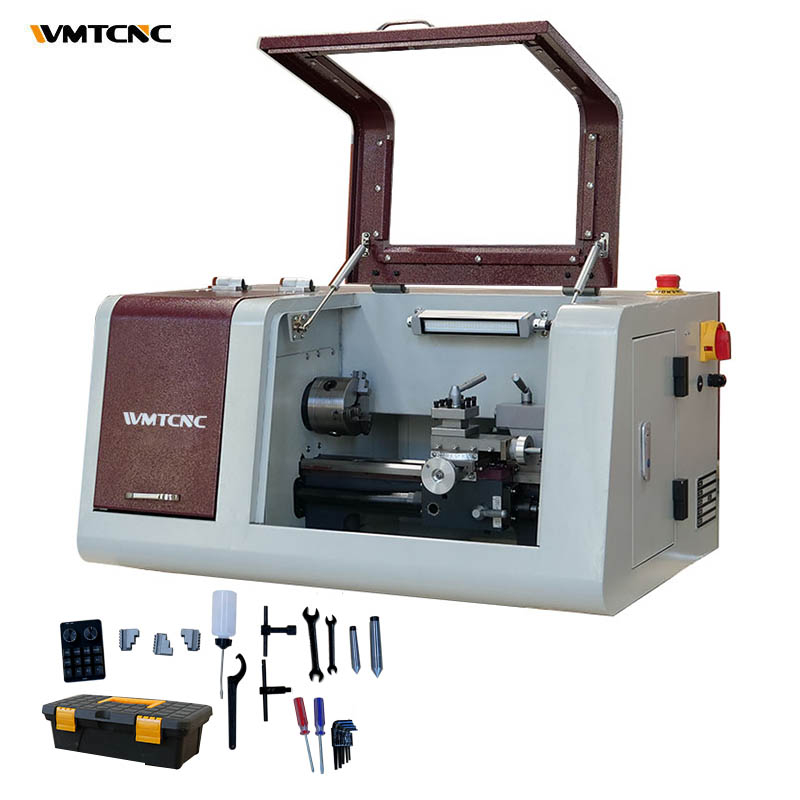

CNC180
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Features:
1. Lower noise and high precision.
2. Suitable for educational training and mould machining.
3. Small size and cheap price.
| Specification | CNC180 |
| Capacity | |
| Max.swing over bed | 180mm |
| Distance between centers | 300mm |
| Rail width | 100mm |
| Splndle | |
| Spindle bore dia. | 21mm |
| Spindle taper | MT3 |
| Spindle speed range | 50-2500rpm |
| Axis | |
| X-axis travel | 100mm |
| Z-axis travel | 180mm |
| X rapid speed | 1500mm/min |
| Z rapid speed | 1500mm/min |
| Motor | |
| Spindle motor power | 750W,220V/1Ph/50Hz |
| Main motor type | Brushless motor |
| Controle system | Linux |
| X motor torque | 1.5N.m |
| Z motor torque | 2.0N.m |
| Min.setting unit | 0.001mm |
| Turret | |
| Type | Manual type |
| No.of tool stations | 4 position |
| Max section of tol | 8x8mm |
| Tailstock | |
| Tailstock sleeve dia | 20mm |
| Tailstock sleeve tavel | 55mm |
| Tailstock sleeve taper | MT2 |
| Machine Dimensions | |
| Packing size(without stand) | 980X632X520mm |
| Overall size | 1150X755X700mm |
| N.W(without stand) | 103kg |
| N.W | 123kg |
