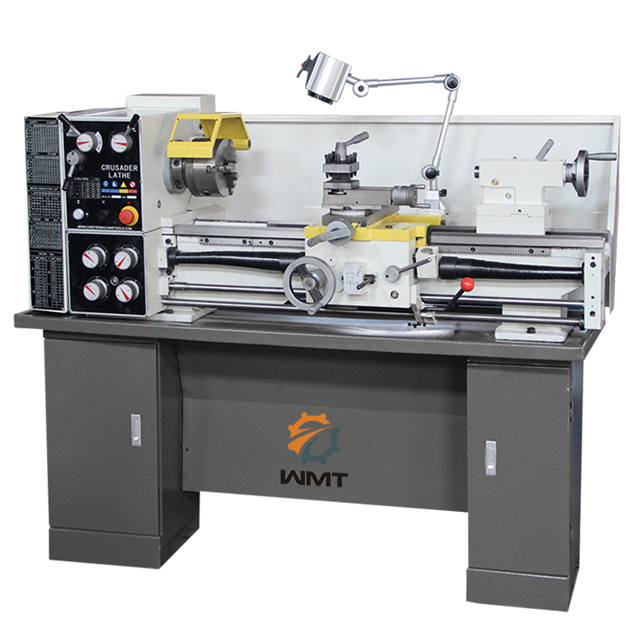

CQ6230 12" x 39" Gear Head Toolroom Metal Lathe With 2" Bore

  • CQ6230
  • WMT
Quantity:

Product Description

CQ6230


Specifications CQ6230 CQ6232
Swing over bed 300mm 320mm
Swing over cross slide 180mm 198mm
Swing over gap 430mm 476mm
Distance between centers 750/910/1000mm
Spindle bore 38mm
Spindle taper MT5
Spindle speed range 65-1700rpm or 65-1810rpm
Longitudinal feed range 0.079-10.291 mm-rev  0.003"-0.0508" /rev
Cross feed range 0.017-0.276 mm/rev 0.0007"-0.0108" /rev
Metric thread range 0.4-7mm
Inch thread range 4-60 TPI
Travel of tailstock 100mm
Taper of tailstock MT3
Motor power 1.1kw/1.5kw
G.W 550/590/670kgs
N.W 500/540/640kgs
Packing size 1480/1680/1970x750x1400mm

Features:

1) CQ6230 horizontal metal precision manual bench lathe machine with CE

2) Bench lathe machine CQ6230

3) Precision ground and hardened bed ways.

4) The spindle is supported with precision roller bearings.

5) Headstock gears are made of high quality steel ground and hardened.

6) Easy operating speed change levers.

7) Removable gap is provided for larger diameter work.

8) Easy operating gear box has various feeds and thread cutting function.



Standard Accessories:

1) 3-jaw chuck 160mm

2) 4-jaw chuck 200mm

3) Steady rest

4) Follow rest

5) Dead centers

6) Splash guard

7) Change gears set

8) Oil gun

9) Machine stand

10) Toolbox with tools
