CQ6240F
WMTCNC
| Quantity: | |
|---|---|
Product Description
Features:
1) Precision ground and hardened bed ways.
2) The spindle is supported with precision roller bearings.
3) Headstock gears are made of high quality steel, ground and hardened.
4) Easy operating speed change levers.
5) With or without cabinet according to requirement.
| Specification | CQ6240F |
| Max,swing over bed | 400mm |
| Max.swing over cross slide | 264mm |
| Max.swing in gap | 550mm |
| Max.length of workpiece | 1000mm |
| Width of bed | 206mm |
| Spindle speed range | (16 changes)45-1800rpm |
| Spindle bore | 51mm |
| Spindle nose | D5 |
| Taper of spindle bore | MT5 or MT6 |
| Center height | 178mm |
| Threads metric pitches | 0.4-7mm/28kinds(Metric lathe) |
| 0.45-7.5mm/22kinds(Inch lathe) | |
| Threads imperial pitches | 4-56TPI/28kinds(Metric lathe) |
| 4-112TPI/40kinds(Inch lathe) | |
| Compound rest travel | 90mm |
| Cross slide travel | 150mm |
| Max.section of tool | 16x16mm |
| Longitudinal feeds range | 0.043-0.653mm/rev(Metric lathe) |
| 0.0012-0.0297in/rev(Inch lathe) | |

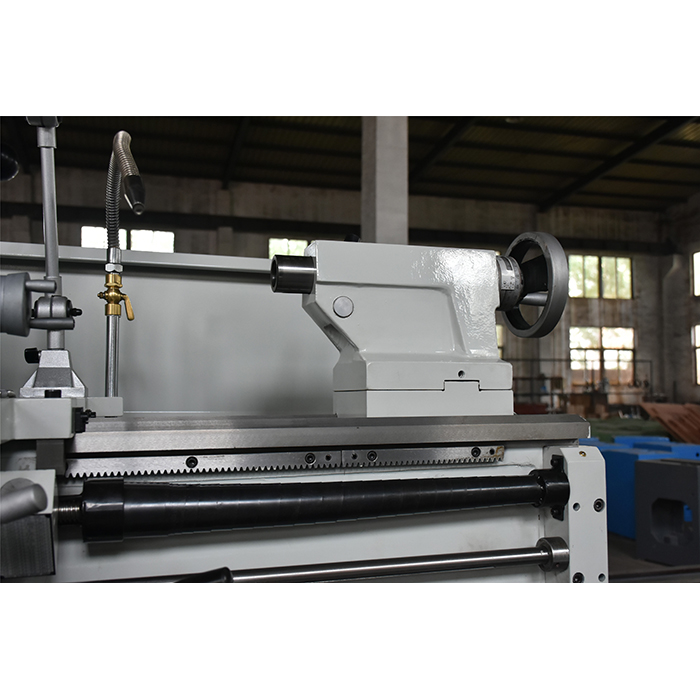

| External diameter | 45mm |
| Max.travel | 100mm |
| Taper of bore | MT3 |
| Main motor power | 1.5/2.4KW |
| Coolant pump power | 40W |
| Packing size(LxWxH) | 1950X750X1500mm |
| Net weight | 700kg |
| Gross weight | 800kg |
