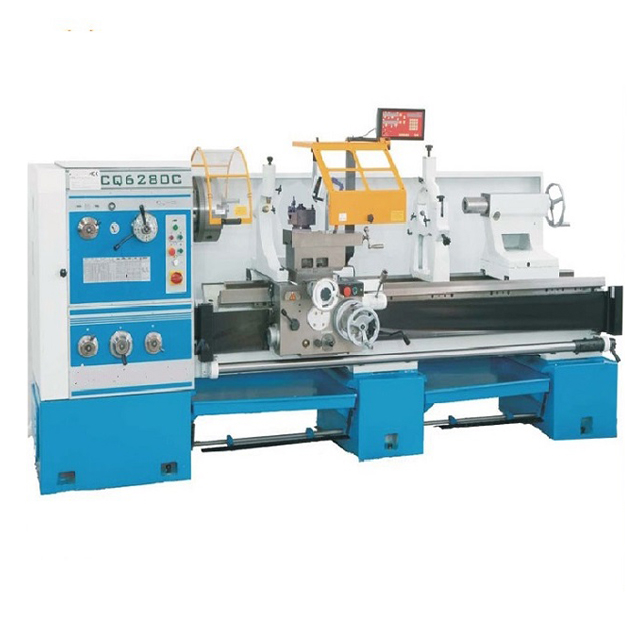

CQ6280C -Sindle Bore Geared Head Engine Lathe with Coolant System

  • CQ6280C

  • WMT

  • 84581900

Availability:
Quantity:

Product Description

Features:

  • The spindle system is high in rigidity and accuracy.

  • The design of the main drive is optimized and the gears in the headstock are precision ground.

  • The noise of the machine is low. There is no need for change gears.

  • The machine can turn about 200 kinds of metric,Whitworth,module and D.P. threads.

  • An automatic stopping device is used to realize automatic stop for the machine of a certain length workpiece,which is safe and reliable pedal braking device providing quick and effective stop while operating.

CQ6280C

CS6240 CS6250B CS6266B CQ6280B CS6250C CS6266C CQ6280C
Φ400mm Φ500mm Φ660mm Φ800mm Φ500mm Φ660mm Φ800mm
Φ630mm Φ710mm Φ870mm Φ1000mm Φ710mm Φ870mm Φ1000mm
Φ220mm Φ300mm Φ420mm Φ560mm Φ300mm Φ420mm Φ560mm
750/1000/1500/2000/3000mm 1000/1500mm 2000/3000mm 1000/1500mm 2000/3000mm
2000/3000mm 2000/3000mm
Φ52mm Φ82mm Φ105mm
CS6240:ISO 702/III NO.6 bayonet lock;others:ISO 702/II NO.8 com-lock type
24 steps 9-1600rpm 24 steps 12 steps 12 steps
8-1400rpm 36-1600rpm 30-1400rpm
7.5kw
Φ75mm Φ90mm
150mm
MT5
25×25mm
145mm
320mm 310mm 320mm
93 kinds 0.028-6.43mm/r 65 kinds 0.063-2.52mm/r
93 kinds 0.012-2.73mm/r 65 kinds 0.027-1.07mm/r
48 kinds 0.5-224mm 22 kinds 1-14mm
48 kinds 72-1/4t.p.i 25 kinds 28-2t.p.i
42 kinds 0.5-112 πmm 18 kinds 0.5-7πmm
42 kinds 56-1/4 t.p.i.π 24 kinds 56-4t.p.i.π
60w
2382/2632/3132/3632/4632mm 2632/3132mm 3365/4365mm 2632/3132mm 3365/4365mm
3632/4632mm 3632/4632mm
975mm 1050mm 1340mm 975mm 1340mm
1230mm 1350mm 1430mm 1270mm 1450mm 1490mm
1795/2050kgs 2050/2100kgs 2400/2600kgs 3300/3700kgs 2100/2300kgs 2200/2400kgs 3000/3200kgs
2250/2450/2850kgs 2300/2500/2900kgs 2800/3000kgs 2500/2900kgs 2600/3000kgs

Standard accessories:

  • 3 jaw chuck

  • 4 jaw chuck

  • Face plate

  • Coolant system

  • Working light

  • Foot brake

  • Rapid travel

  • Steady rest

  • Follow rest

  • Change gears set

  • Tool box& tools
