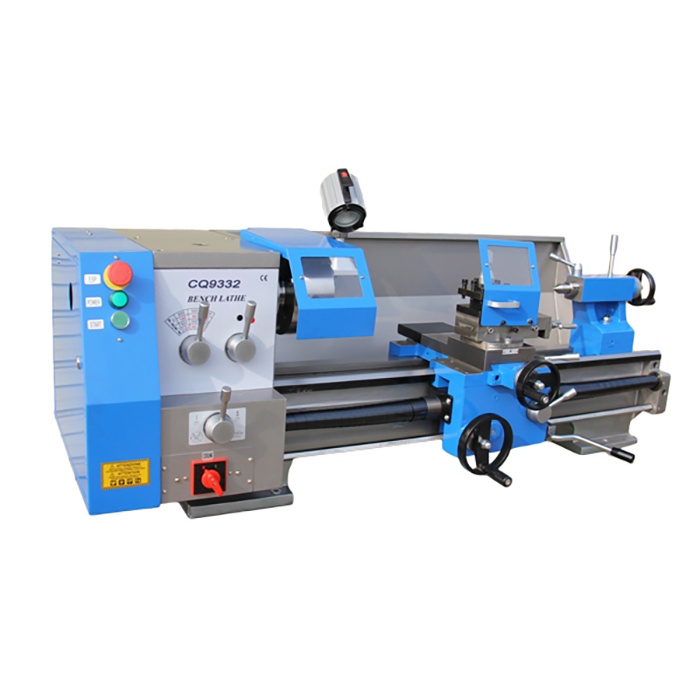

CQ9332
WMTCNC
| Quantity: | |
|---|---|
Product Description
Features:
1) Precision ground and hardened bed ways.
2) The spindle is supported with precision roller bearings.

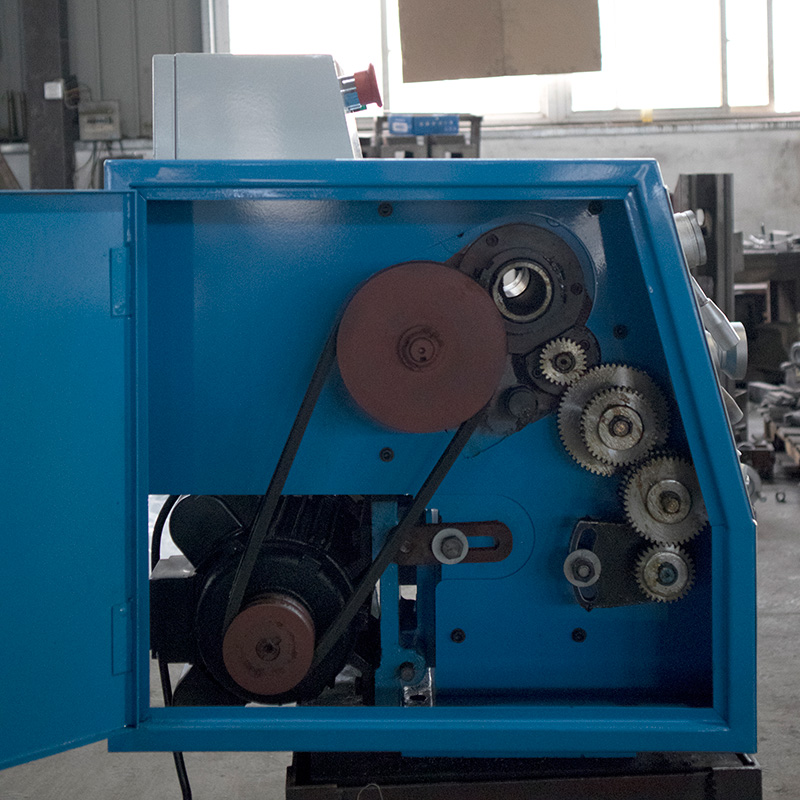

3) Headstock gears are made of high quality steel, ground and hardened.
4) Easy operating speed change levers.
5) With or without cabinet according to requirement.
| Specification | Model CQ9332-550/750mm |
| Max. turning diameter over bed: | 330mm(12-3/5") |
| Max. swing over cross slide: | 220mm(8-11/16") |
| Max. length of work piece: | 550mm(23-3/5") / 750mm(36") |
| Width of bed | 160mm(6") |
| Spindle Taper and Bore: | MT5 / 38mm ( 1-1/2") |
| Max. lateral stroke over tool post | 160mm(6") |
| Metric pitches | 0.5-4 mm |
| Inch pitches | 9-40 T.P.I |
| Longitudinal-feed range | 0.135-1.80mm/r |
| Max. travel of tailstock sleeve | 70mm(2-3/4") |
| Tailstock sleeve taper | MT3 |
| Spindle speeds range | 60-1650r/min(50hz) |
| Motor | 1.1Kw |
| NW/GW (without stand) | 280/300Kg 320/340Kg |
| Packing size (without stand) | 133*76*72/155*76*72 cm |
| Packing size | 133*76*137/155*76*137 cm |
