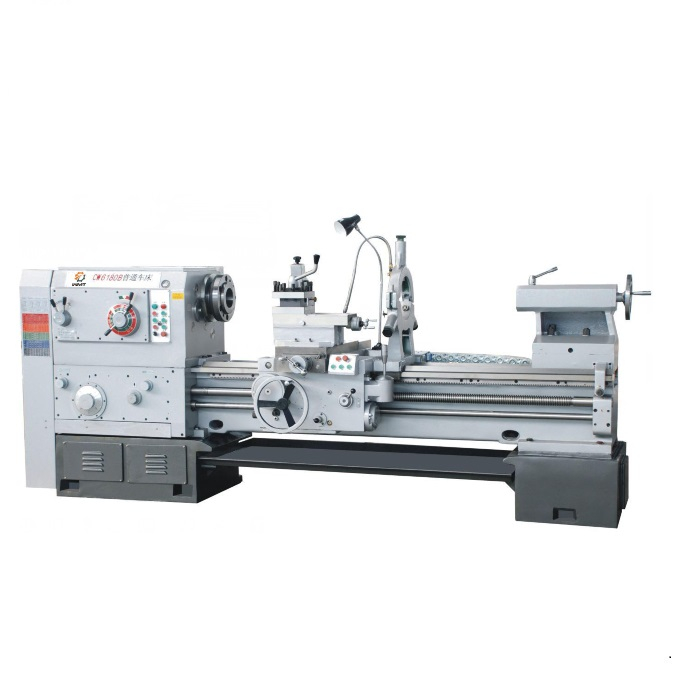

CW61100 Chinese Metal Lathe Machine Price with Lathe Tool

  • CW61100
  • WMT
  • 84581900

Product Description


Specification CW61100(A)
Max.swing over bed Φ1000mm(39")
Max.swing over gap Φ1200mm(47-1/4")
Max.swing over cross slide Φ680mm(26-3/4")
Center distance 850/1350/1850/2850/3850/4850/5850/7850/9850/11850mm
(33 1/2",53",73",151 5/8",191",230 3/8",309",387 3/4",466 1/2")
Width of bed 600mm(23 1/2")
Spindle hole Φ105mm(4 1/4") (Φ130mm(4 1/4"),available for CW6180)
Spindle taper Φ120mm(4 3/4") taper 1:20
Spindle speeds 5.5-730r/min
Metric threads mm 1-240mm (52)
Inch threads TPI 1-14 (26)
Module threads mm 0.5-120mm (53)
Diametral threads DP 1-28 (24)
Longitudinal feeds range 0.1-24.3mm/r
Cross feed range 0.05-12.15mm/r
Rapid feed:long/cross 4000mm/min,2000mm/min
Tool section 32mm×32mm(1-1/4"x1-1/4")
Cross slide travel 430mm(17")
Compound rest travel 200mm(7 3/4")(travel for A type:170mm(6 2/3"))
Sleeve diameter 120mm(4-3/4")
Sleeve taper Morse 6
Sleeve travel 240mm(9 1/2")
Steady rest Φ20-200mm(3/4"-7 3/4")
Follow rest Φ20-135mm(3/4"-5 1/4")
Main motor 11kw(15kw)   15HP(20HP)
Rapid feed motor 1.1kw  (1.5HP)
kgs 4600/5000/5200/5800/6400/7000/7900/9000/104000/11700kgs
Length 3000/3500/4000/5000/6000Φ7000/8000/10000/12000/14000mm
Width 1170mm
Height 1250mm
