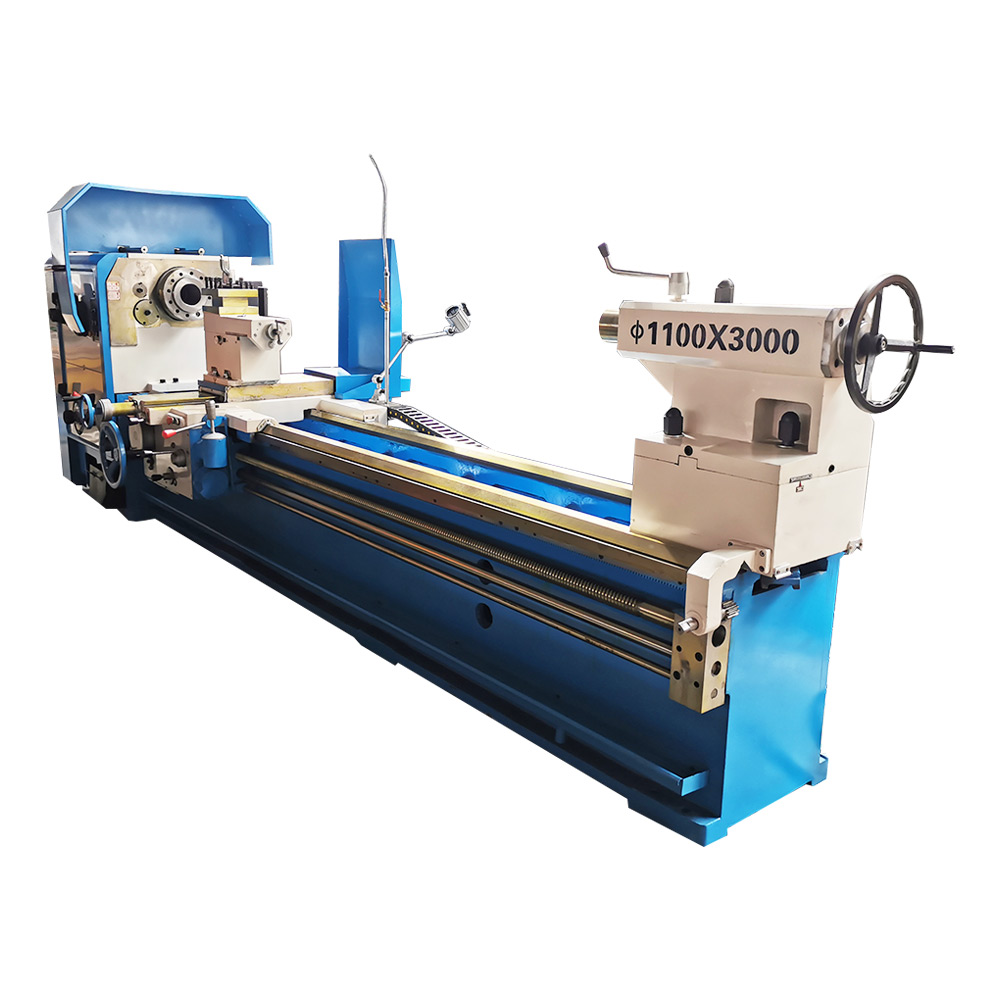

CW61100Q Chinese Metal Lathe Machine Price with Lathe Tool

CW61100Q Chinese Metal Lathe Machine Heavy Duty Lathe for Sale

Product Description

Main Features:

The heavy horizontal lathe machine is especially designed for big workpiece cutting;

All gears hardened with precision guideway.

CW61100Q

Specification	Unit	CW61110Q CW62110Q
Swing over bed	mm	1100
Swing over toolpost	mm	800
Workpiece length	mm	1000/1500/3000/4000/5000
Swing in gap/width	mm	1300/310
Spindle bore	mm	105mm D11 130mm D11
Spindle front taper		120mm MT5
Spindle speed an range	rpm	18 kinds 7.5~1000
Cross feed step and range	mm/r	64 kinds 0.05~24.3
Range 1:1		0.1~1.52
Range 16:1		1.6~24.3
Change gears micro feed range	mm/r	0.05~0.912
Ratio of longitudianl feed to cross		1/2
Gap rapid speed	mm/min	4000
Leadscrew pitch		12(metric) 1/2(inch)
Metric thread	mm	50 kinds 1-240 (other type thread 14 kinds)
Inch thread	TPI	50 kinds 1-240 (other type thread 14 kinds)
Module thread	mm	53 kinds 0.5-120
Pitch thread	DP	24 kinds 28-1
Lower toolpost travel	mm	500
Upper toolpost travel	mm	200
Tailstock travel	mm	250
Tailstock taper		MT6
Bedway width and hardness	mm	550 RC50
Main motor	KW	11
Rapid motor	KW	1.1
Coolant pump motor	W	90
Loading weight	kg	2000/3000
