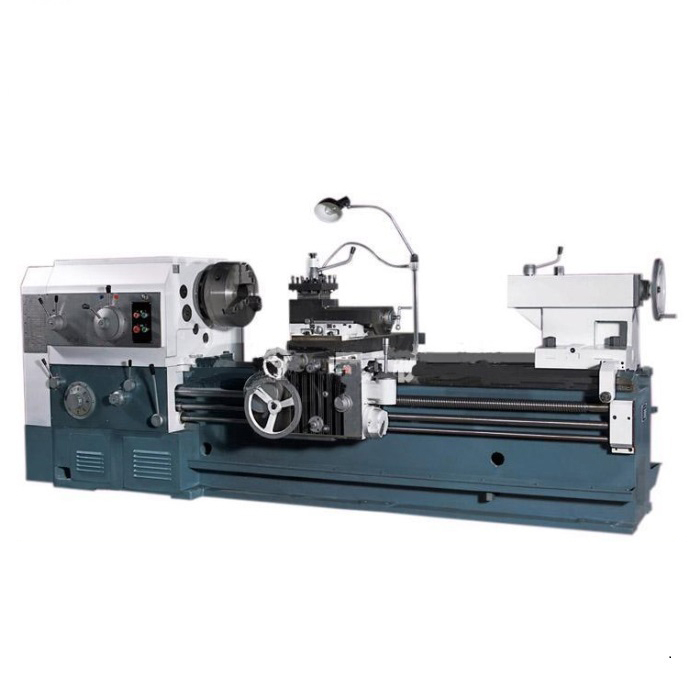

CW6180
WMTCNC
84581900
| Quantity: | |
|---|---|
Product Description
Main Features:
The heavy horizontal lathe machine is especially designed for big workpiece cutting;
All gears hardened with precision guideway.
| Specification | CW6180B(without gap) CW6280B(with gap) |
| Swing in gap | 1100mm |
| Swing over cross slide | 800mm |
| Distance between centers | 4000mm |
| Spindle bore | 130mm |
| Spindle speeds | 10-800/18rpm/steps |
| Cross slide travel | 480mm |
| Top rest travel | 225mm |
| Rapid travel | Longitudinal Axe Z: 3200mm/min |
| Longitudinal Axe X: 1900mm/min | |
| Quill diameter | 90mm |
| Quill travel | 260mm |
| Quill taper | MT5 |
| Bed width | 550mm |
| Metric threads | 1-240/53mm/kinds |
| Inch threads | 30-2/31tpi/kinds |
| Module threads | 0.25-60/46mm/kinds |
| Diametrical pitch threads | 60-0.5/47tpi/kinds |
| Main motor power | 15kW |
| Length | 7000mm |
| Width | 1400mm |
| Height | 2000mm |
| Gross weight | 7000kg |
