CW62125 New Product Manual Universal Lathe Machine Price

  • CW62125

  • WMT

  • 84581900

Availability:
Quantity:

Product Description

Features:

  • The lathe bed by integrally cast lathe bed structure, internal steel board layout is reasonable, has high rigidity, machine adopts the 250 casting iron, equipment with high frequency quenching, guide rail mill grinding process, stable machine tools with high precision, high rigidity, strong cutting.

  • Sliding box has a fast moving structure, single handle visualization operation;Spindle and reversing shift to the brake and the user can choose the hydraulic control or manual control machinery.

  • The machine tool rest with single motor turning cylinder, you can also use the tool rest and longitudinal feed turning cone length.The machine it is suitable for large and medium-sized of steel and non-ferrous metal parts processing, can be cylindrical turning, inner hole, face cutting, drilling, boring and nesting.





1

Specification CW62125
Max. swing over bed 1250mm
Bed width 755mm
Max. workpiece length 1500/ 3000/ 5000/ 6000/ 8000/ 15000mm
Max. swing over toolpost 860mm
Max. turning length 1300/ 2800/ 4800/5800/7800/14800mm
Toolpost feed kinds each spindle rotate 56 kinds
Toolpost cross feed range each spindle rotate 0.1-12mm/r
Toolpost longitudinal feed range each spindle rotate 0.05-6mm/r
Upper toolpost 0.025-3mm/r
Metric thread 44 kinds 1-120mm
Inch thread 31 kinds 28-1/4 teeth / inch
Module thread 45kinds 0.5-60mm
Pitch thread 38 kinds 1/2-56D.P
Spindle bore 130mm
Spindle front taper Metric 140
Spindle speed steps and range forward 21 kinds 3.15-315r/min
                                              Reverse 12 kinds3.5-278 r/min
Max.section of tool 45×45mm
Toolpost longitudinal travel 630mm
Upper toolpost travel 300mm
Toolpost rapid movement Longitudinal/Cross/Upper 3470/1870/935mm/min
Center sleeve dia and travel 160×300mm
Tailstock taper MT6
Tailstock longitudinal movement ±25
Main motor 22KW
Main transsion V belt specification 2134C  2235C  2540C
Carriage rapid motor 1.5KW
Coolant pump 90W
Coolant pump flow 45L/min
4-jaw chuck 1000/1250mm
Steady rest 50-470mm
Follow rest 50-220mm





Standard accessories:

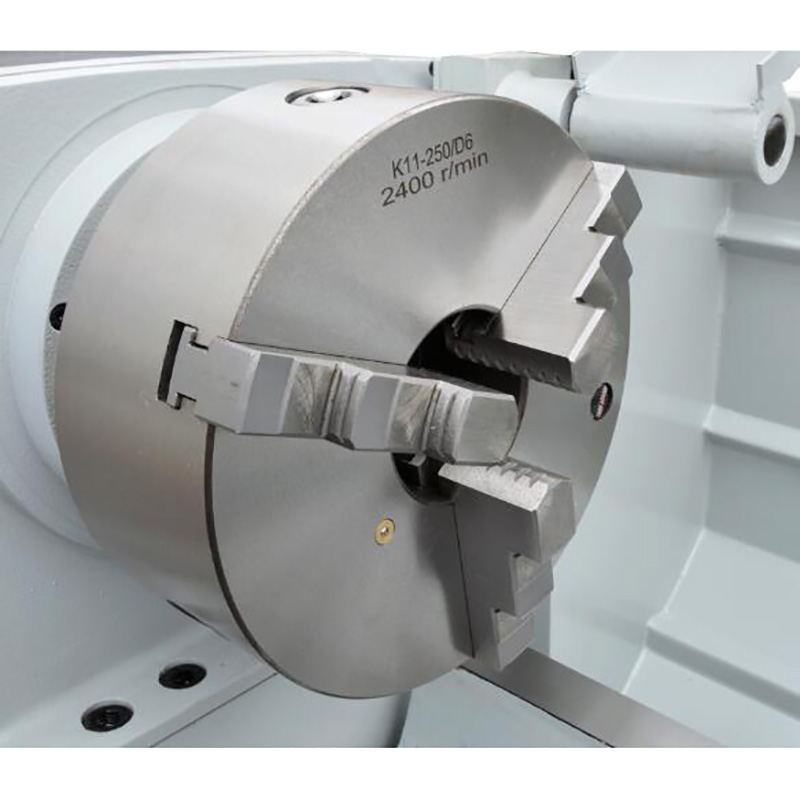

  • 3 jaw chuck

  • 2 axis/ 3 axis DRO

  • Lathe tools

  • Live center
