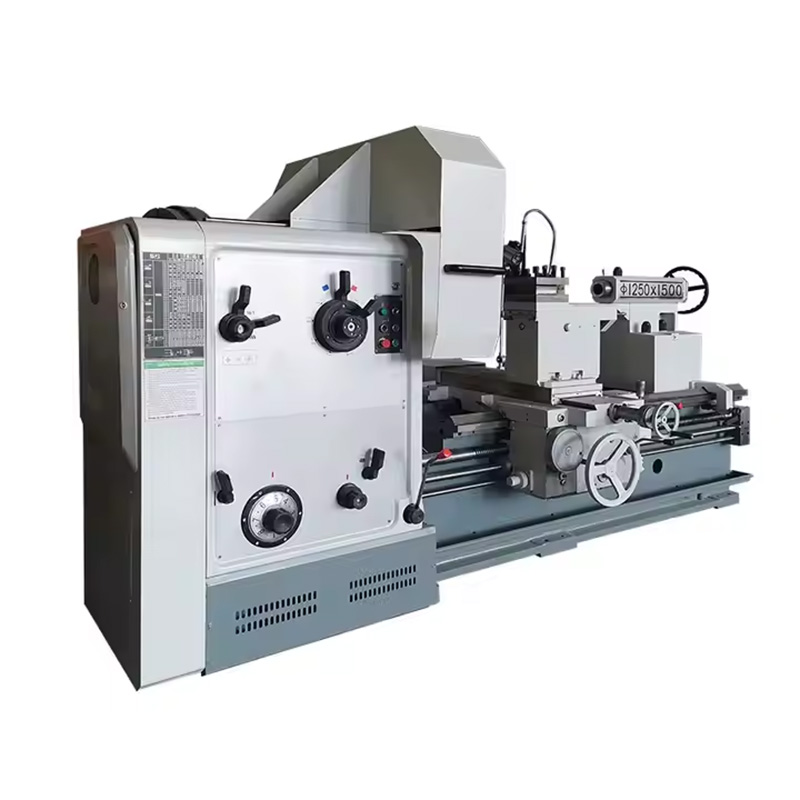

CW62125Q
WMTCNC
84581900
| Quantity: | |
|---|---|
Product Description
Features:
It can be used for high speed and strong force turning with high power, high rigidity and wide rotating speed rang for cast iron, steel, and other various metal.
Machine guideway is TSF type with durable use,can meet different quantity production requirements with high efficiency,stable and reliable precision.

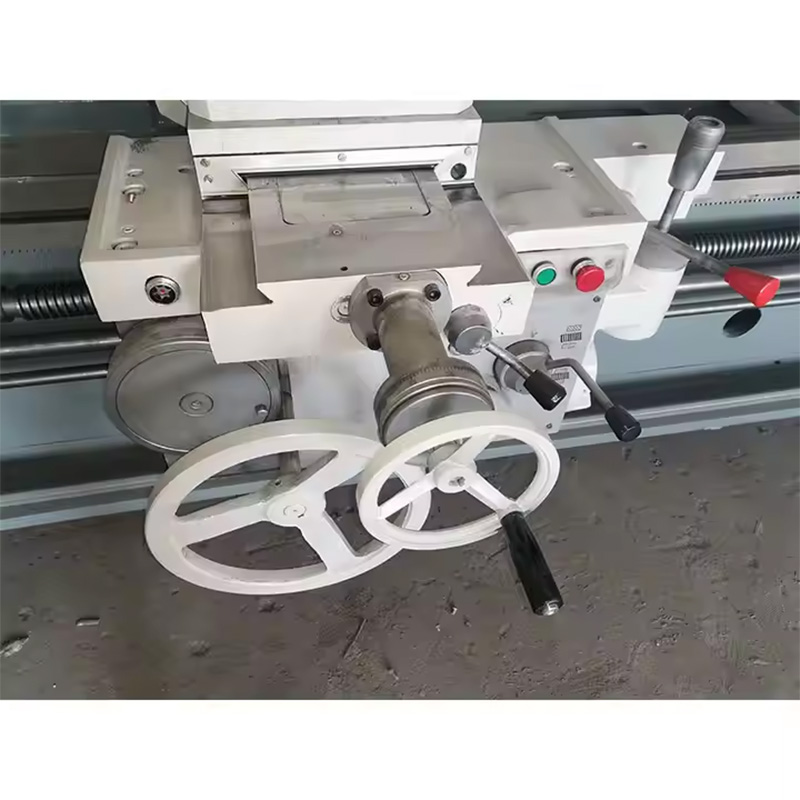

The carriage comes with rapid feed, easy to operate.
| Specification | CW61125Q CW62125Q | |
| Max. swing over bed | 1250mm | |
| Bed width | 600mm | |
| Max. workpiece length | 1500mm/2000mm/3000mm/4000mm/5000mm /6000mm,etc | |
| Max. swing over toolpost | 920mm | |
| Max. loading weight | 2.5T | |
| Swing in gap/width | 1450mm/310mm | |
| Spindle bore | 105mm | |
| Spindle front taper | 120mm MT6 | |
| Spindle speed steps and range | 18 kinds 7.5~1000 r/min | |
| Cross feed steps and range | 64 kinds 0.05~24.3 mm/r | |
| Range 1:1 | 0.1~1.52 | |
| Range 16:1 | 1.6~24.3 | |
| Change gears micro feed range | 0.05~0.912 mm/r | |
| Ratio of longitudinal feed to cross | 1-2 | |
| Gap rapid speed | 4000 mm/min | |
| Leadscrew pitch | 12(metric) 1/2 (inch) | |
| Metric thread feed range | 50 kinds 1-240 mm(other type thread 14kinds) | |
| Inch thread feed range | 26 kinds 14-1 TPI | |
| Module thread feed range | 53 kinds 0.5-120 mm | |
| Pitch thread feed range | 24 kinds 28-1 DP | |
| Lower toolpost travel | 500mm | |
| Upper toolpost travel | 200mm | |
| Tailstock travel | 250mm | |
| Tailstock taper | MT6 | |
| Main motor | 11kw | |
| Carriage rapid motor | 1.1kw | |
| Coolant pump motor | 90w | |
