CW6280B Conventional Horizontal Heavy Gap Lathe Machine with CE

  • CW6280B
  • WMT
  • 84581900

Product Description

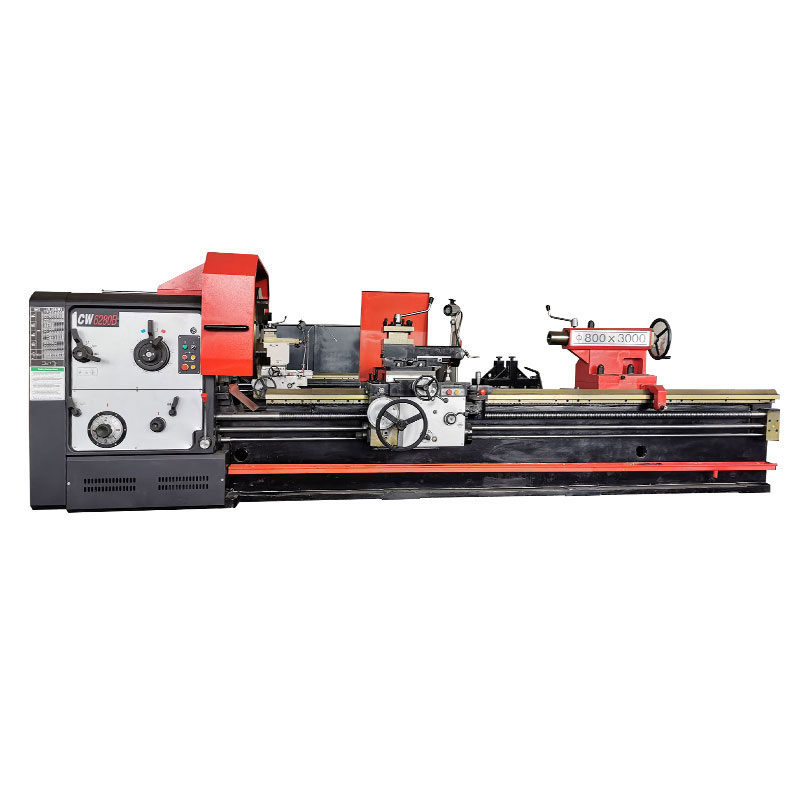

CW6280B (1)

Specification CW6280B
Swing in gap 1100mm
Swing over cross slide 800mm
Distance between centers 4000mm
Spindle bore 130mm
Spindle speeds 10-800/18rpm/steps
Cross slide travel 480mm
Top rest travel 225mm
Rapid travel Longitudinal Axe Z: 3200mm/min
Longitudinal Axe X: 1900mm/min
Quill diameter 90mm
Quill travel 260mm
Quill taper MT5
Bed width 550mm
Metric threads 1-240/53mm/kinds
Inch threads 30-2/31tpi/kinds
Module threads 0.25-60/46mm/kinds
Diametrical pitch threads 60-0.5/47tpi/kinds
Main motor power 15kw
