Product Description

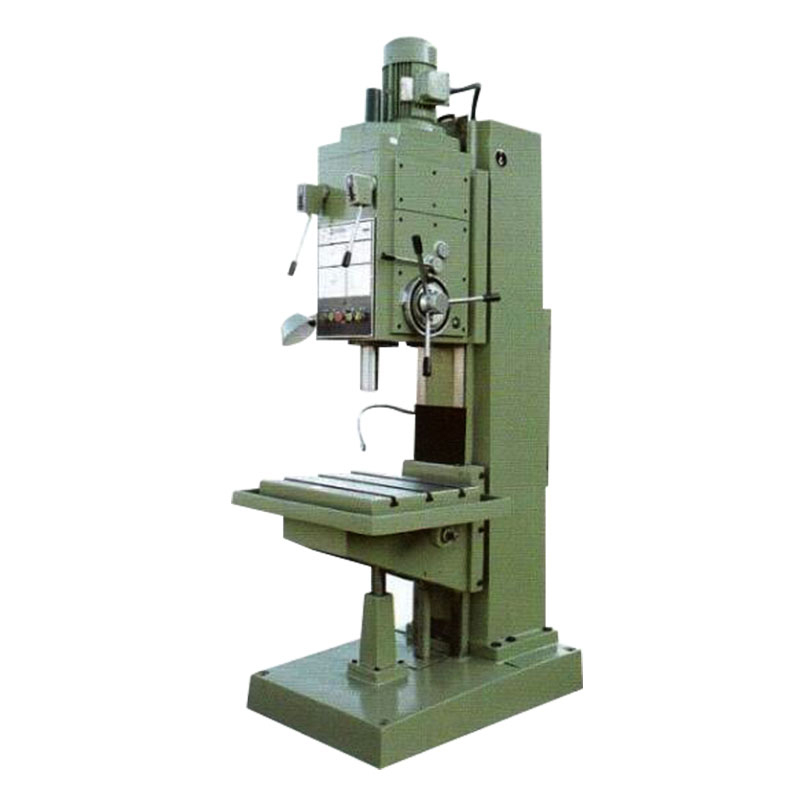

| Specification | Z5150B |
| Max drilling diameter | 50mm |
| Spindle taper | MT5 |
| Max taping capacity | M30X3 |
| Stroke of spindle quill | 250mm |
| Spindle box travel(manual) | 200mm |
| Spindle speed step | 12 |
| Spindle speed range | 31.5-1400r.p.m |
| Spindle feed step | 9 |
| Spindle feed range | 0.056-1.80mm/min |
| Table size | 560x480mm |
| Vertical travel | 300mm |
| Max distance between spindle and table surface | 750mm |
| Main motor power | 3kw |
| Motor of cooling pumps | 40w |
| Speed of cooling pumps | 25L/min |
| T-slot NO./width/distance of table | 3/18/150 mm |
| Overall size | 1090x910x2465mm |
| Net weiaht | 1350kg |
