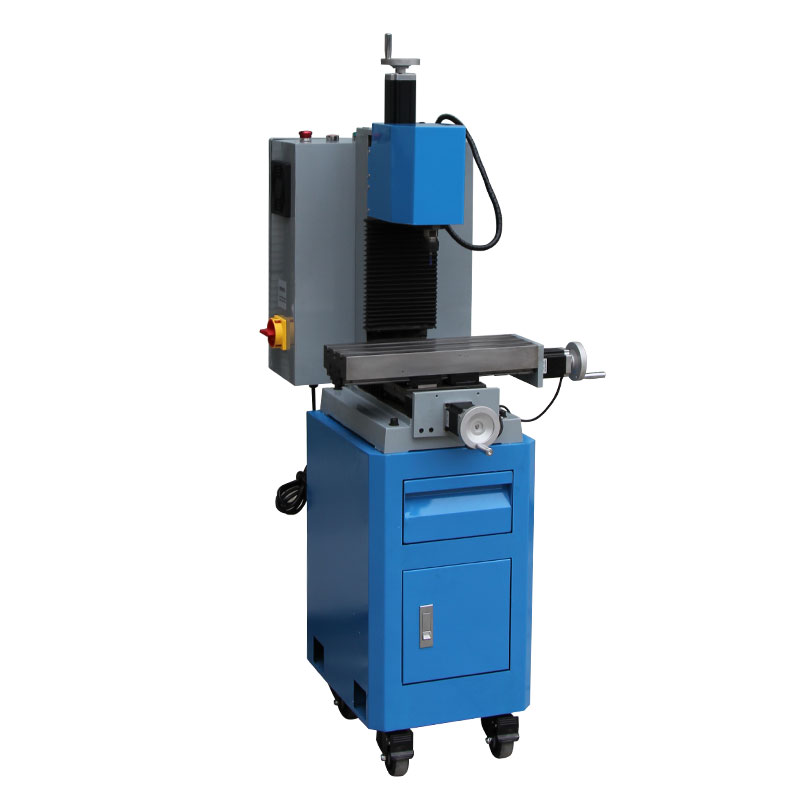

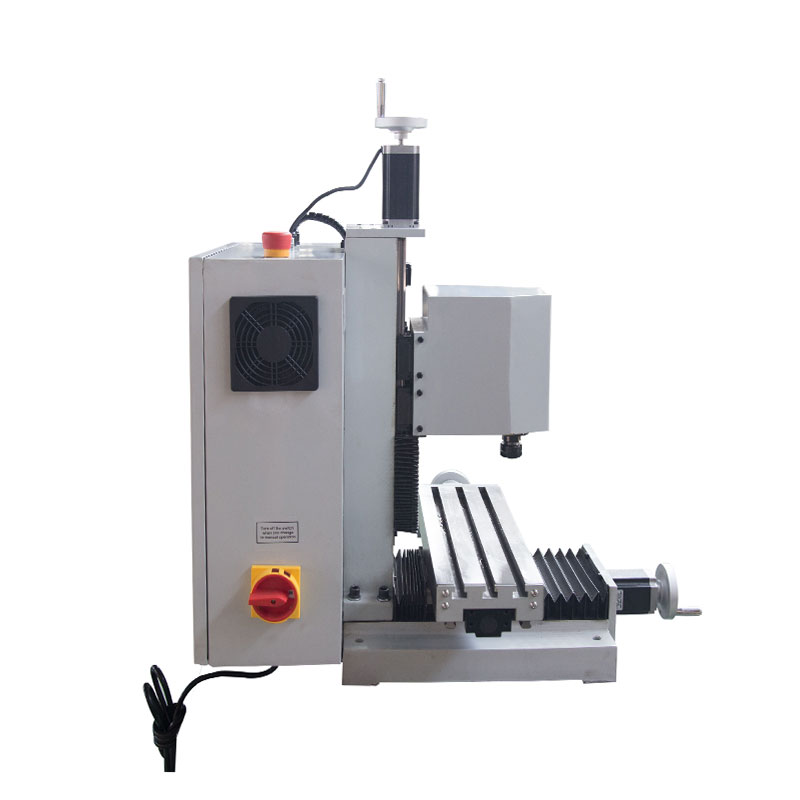

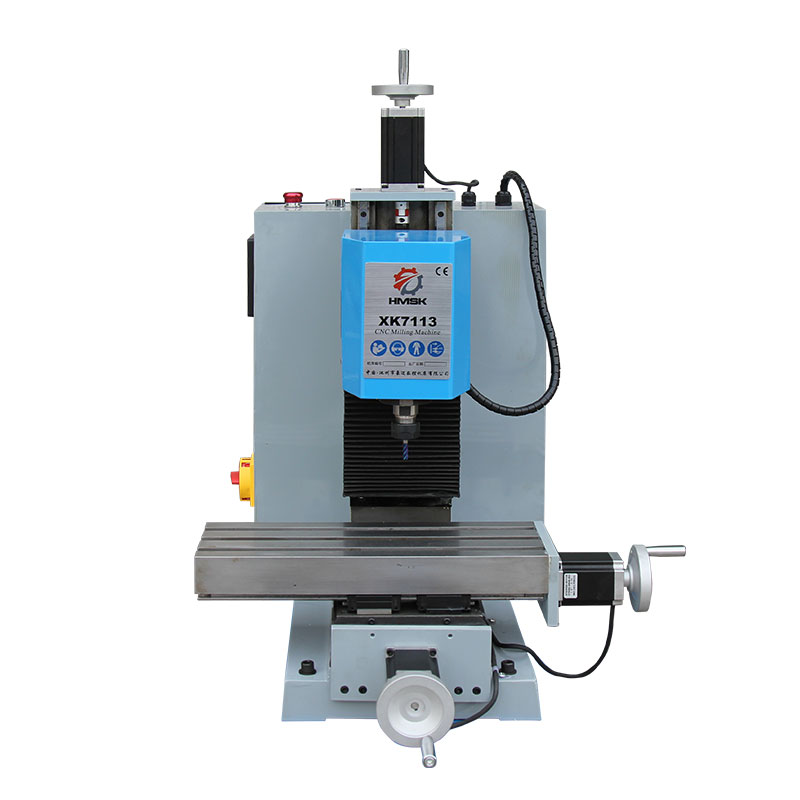

XK7113A
WMTCNC
8459619000
| Quantity: | |
|---|---|
Product Description
Main Features:
Small size and cheap price
Lower noise and high precision
Suitable for soft metal material processing
Easy operation by P.C
Popular for education training and mould machining
Best choice for hobby users
| Specification | XK7113A/B | XK7113C | XK7113D |
| Max. drilling dia. | 13mm | 16mm | 13mm |
| Max. milling dia. | 13mm | 16mm | 13mm |
| Max. tapping dia. | ---- | M8 | ---- |
| Spindle speed | 3000rpm | 3000rpm | 12000rpm |
| Spendle center to column distance | 189mm | 194mm | 200mm |
| Spindle nose to table distance | 205mm | 215mm | 215mm |
| Spindle taper | ER20 | ER25 | ER20 |
| T-slot size （NxWxD） | 3/12/40mm | 3/12/40mm | 3/12/40mm |
| Worktable size | 400X140mm | 400X140mm | 400X140mm |
| X axis travel | 220mm | 220mm | 220mm |
| Y axis travel | 120mm | 120mm | 120mm |
| Z axis travel | 200mm | 200mm | 200mm |
| Main motor power | 400W | 1.2KW | 2.2KW |
| Main motor type | Brushless motor | Servo motor | Frequency motor |
| Feeding motor torque | 2.6/2.6/3.2 N.m | 2.0/2.0/3.0 N.m | |
| Feeding motor type | Stepper motor with open loop | Stepper motor with closed loop, Z axis with brake | |
| Controller system | Mach 3 | After-CNC 1500MDC | |
| Overall size(LxWxH) | 590x590x780mm | 1100x600x1380mm | |
| N.W/G.W | 90/115KGS | 310/330KGS | |
