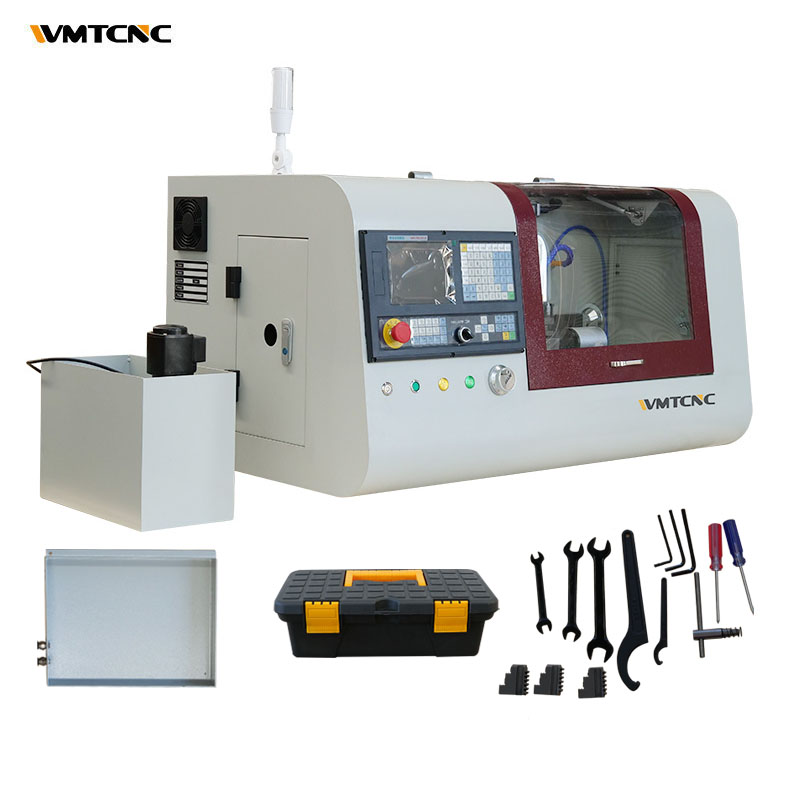

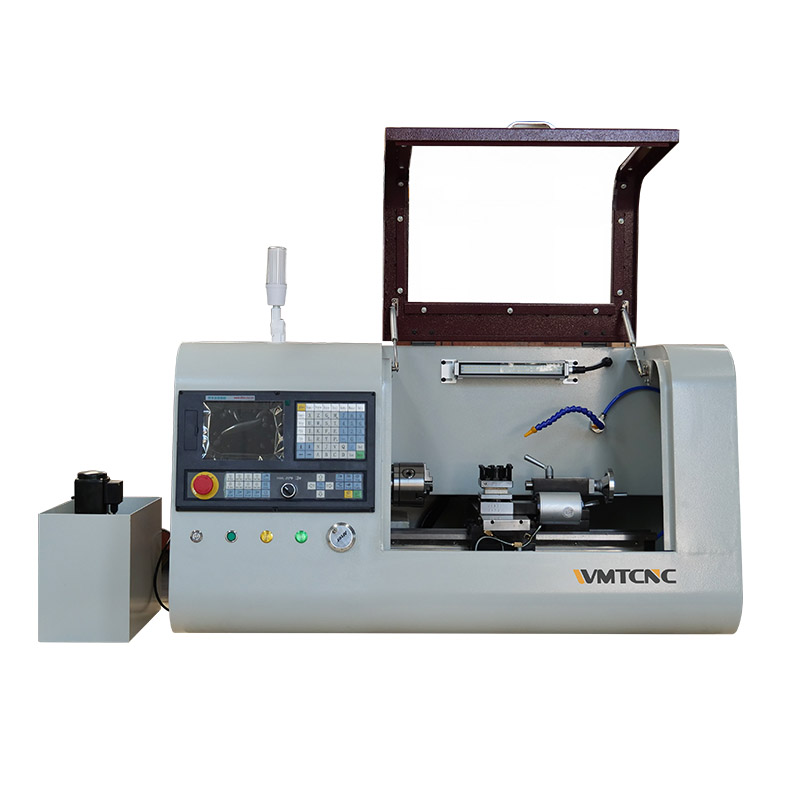

CNC210
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Features:
1. X/Z feeding motor and main motor: servo motor.
2. Machine stand with drawer.
3. Lower noise and high precision.
4. Suitable for educational training and mould machining.
5. Small size and cheap price.
| Specification | CNC210 |
| Capacity | |
| Max.swing over bed | 210mm |
| Distance between centers | 400mm |
| Rail width | 100mm |
| Splndle | |
| Spindle bore dia. | 26mm |
| Spindle taper | MT4/5C(Optional) |
| Spindle speed range | 3000rpm |
| Axis | |
| X-axis travel | 105mm |
| Z-axis travel | 270mm |
| X rapid speed | 3000mm/min |
| Z rapid speed | 3000mm/min |
| Motor | |
| Spindle motor power | 1.2kw |
| Main motor type | Srevo motor |
| Controle system | After 990TDB |
| X motor torque | 24N.m |
| Z motor torque | 2.4N.m |
| Min.setting unit | 0.001mm |
| Turret | |
| Type | Electric type |
| No.of tool stations | 4 position |
| Max section of tol | 12x12mm |
| Tailstock | |
| Tailstock sleeve dia | 22mm |
| Tailstock sleeve tavel | 50mm |
| Tailstock sleeve taper | MT2 |
| Machine Dimensions | |
| Packing size(without stand) | 1170X700X860mm |
| Overall size | 1300×800X1500mm |
| N.W(without stand) | 200kg |
| N.W | 230kg |
