China CNC Milling Machine XK7124 for Hobby And Training | WMTCNC

  • XK7124

  • WMTCNC

  • 8459619000

Availability:
Quantity:

Product Description

Features:

1. XK7124 Small size vertical CNC milling machine with CE certificate:

2. BT30 spindle.
3. Function: drilling , tapping, chamfering, bearing, milling face thread, handle and tower
4. Aesthetic and elegant modeling.
5. High efficiency for automatic knife changing.
6. The spindle frame is used in the lathe pedestal to increase its stability and stiffness.



XK7124

Specification:

Specification XK7124
worktable

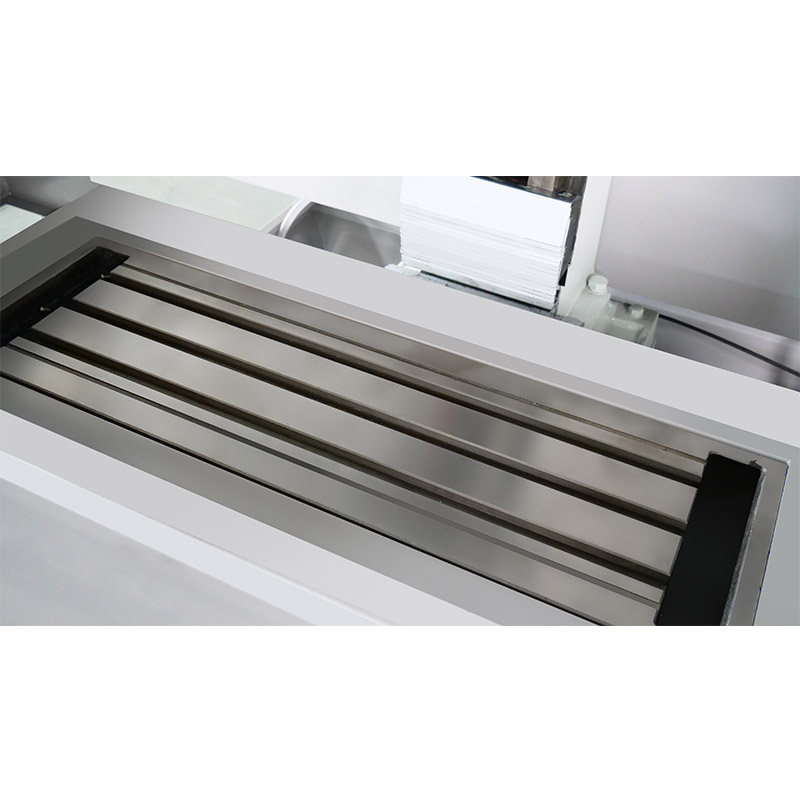

Worktable size(LxW) 800x240mm
T-slot (N×W×D) 3-16X60mm
Travel
X axis travel 425/245/530mm
Machining range
Spindle center to column distance N/A
Distance from spindle nose to worktable surface 105-635mm
Spindle
Spindle taper BT30
Main motor power 3.7kw
Coolant system N/A
Change tool way Pnumetic
Rapid feed speed(X/Y/Z) 10/10/10 m/min
Max.spindle speed 6000rpm
Feed

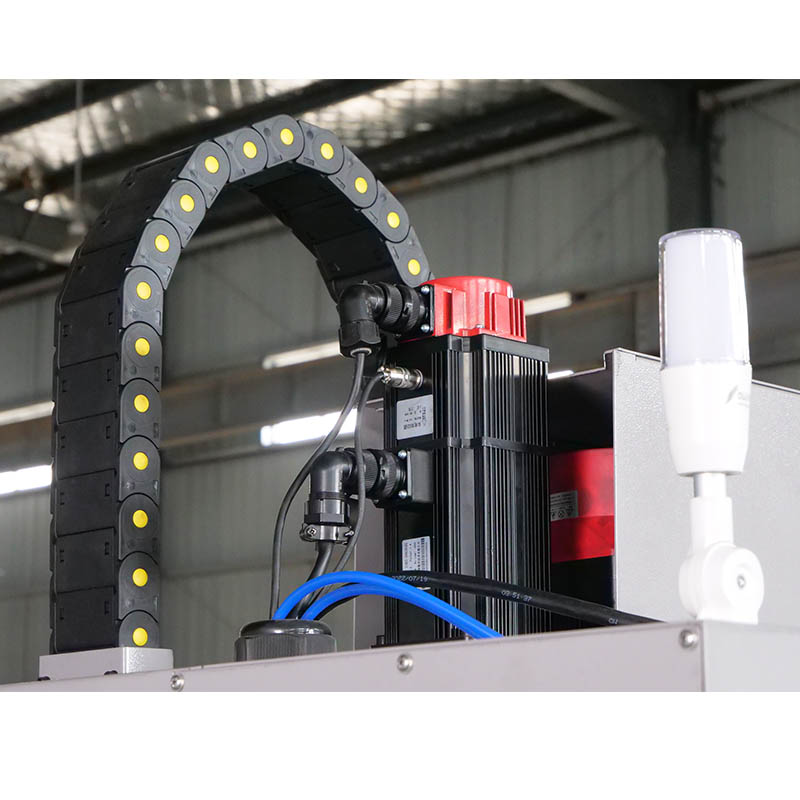

AC servo motor torque (X/Y/Z) N/A
Ball screw (diameter+lead)
XY Linear guideway N/A
Z linear guideway N/A
X axis ball leadscrew 2506
YZ axis ball leadscrew 2506
Tool magazine
ATC Type Umbrella type
Capacity of ATC 12T
Air compressor pressure N/A
Lubricating pump capacity 1L
Working light 10w
Cooling pump 40w

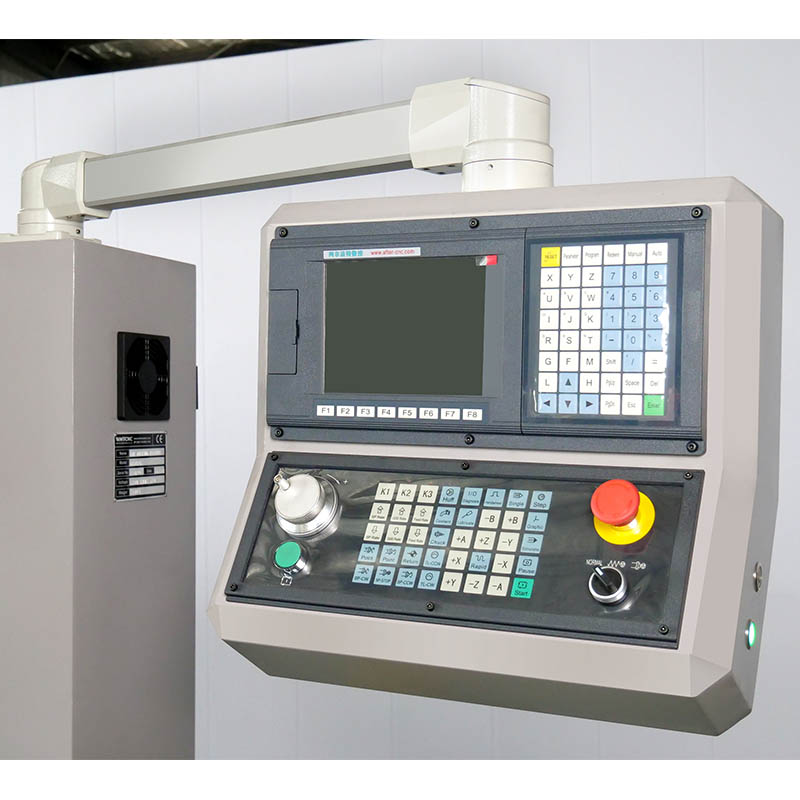

Controller system After18i//GSK980MDc/Siemens 808Da
Size
Machine size(LxWxH) 1540(1730)x1300x1960(2060)mm(including ATC)
Machine weight 600kg/750kg
