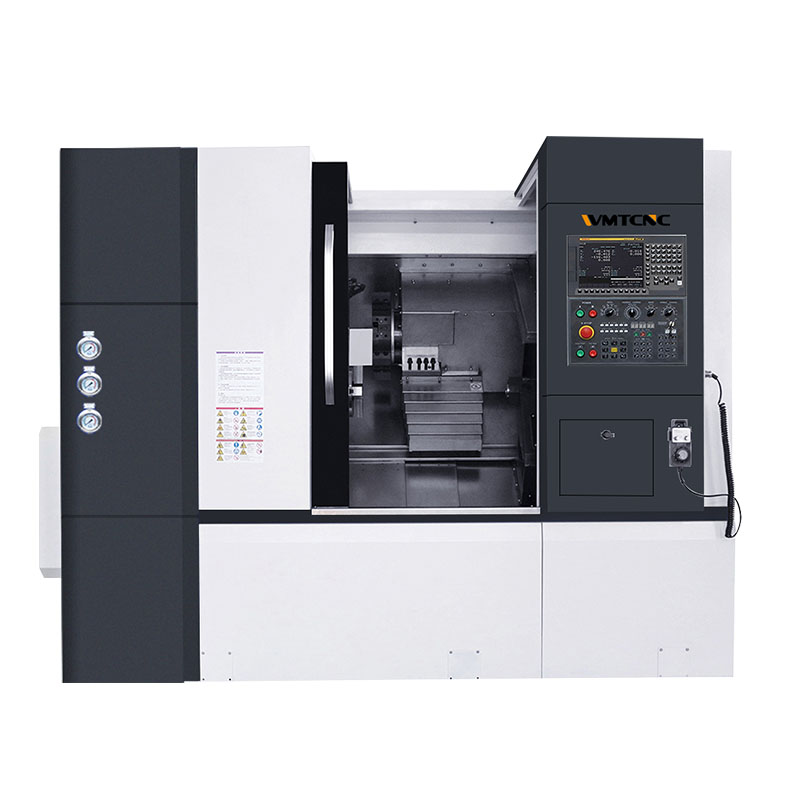

China High Quality CNC Turning Machine SWL12 for Metal

  • SWL12
  • WMTCNC
Availability:
Quantity:

Product Description

Features:

High-performance CNC Turning center machine SWL12 is designed to provide setup flexibility, superb rigidity, and excellent thermal stability. This machine offers a high cost performance. SWL12 CNC turning center machine has a heavy-duty cast base with a “true align” slant bed design. The machine bed, headstock, turret, and tailstock are aligned on the same plane. This unique design feature reduces heat built-up and resulting in thermal expansion. The net result is a higher precision machine tool. Additional resulting efficiencies from the “true align” designs is greater rigidity and smoother operation which provides a variety of benefits. You can expect to produce highly accurate parts with extremely fine surface finishes.


Specification:

SpecificationSWL12
Capacity
Chuck size12",*15"
Max. swing dia. over bedφ530mm
Max. length of workpiece750,*900,*1400,*1820mm
(C2C*1000,*1500,*2000)mm
Max. swing dia. over slideφ280mm
Spindle
Spindle boreφ105mm
Max. dia. of through-holeφ91mm
Spindle noseA2-8
Spindle speed range1800rpm
Main motor power11/15kw, *15/18.5kw
Axis
X axis travel280mm
Z axis travel750, *1000, *1600mm
X/Z rapid traverse15/20m/min
Turret
Center height100mm
No. of tool stations8,*12 position
Tool shank size25x25mm
Tailstock
Type of tailstockHydraulic, *HPT, *SST
Taper of tailstock quillMT5
Travel of tailstock quill150mm
Travel of tailstock100-750/*1000mm, *1600mm,*100~1800
Structure
Slant bed degree35°
Guideway typeLM
Others
Power capacity20kVA
Overal dimension (L×W×H)3350x2000x2350mm
Machine weight5900kg
