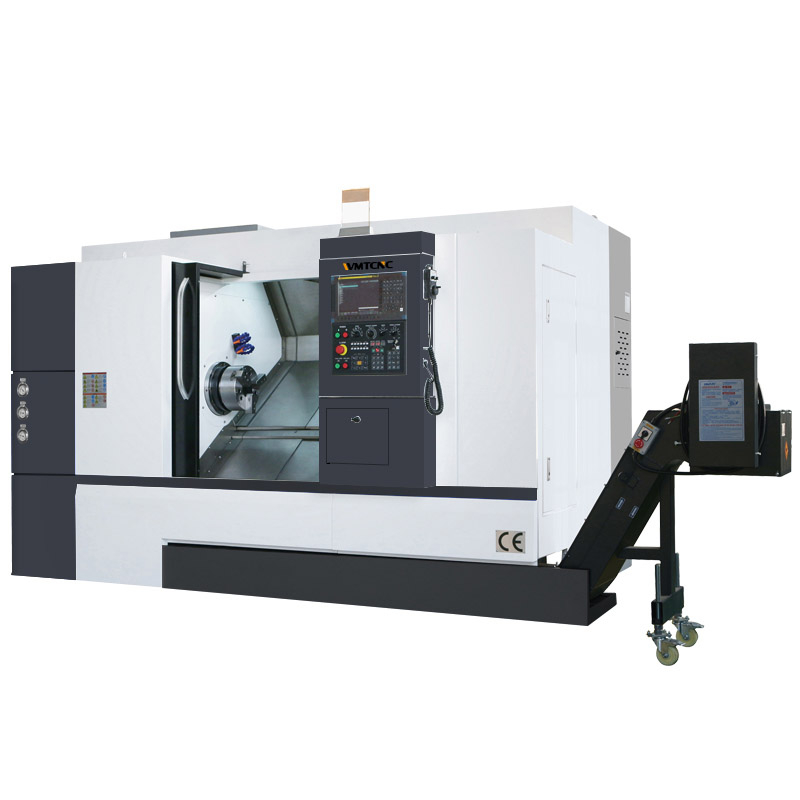

Features:
1. Slant bed, Tailstock, Linear guideway;
2. True slant bed minimizes the impact of thermal expansion to precision. 35 degree bed slant is more convenient for scrap iron;
3. It realizes an optimized combination of high-precision, high bearing capacity, good running speed and it is more durable;
4. Better water-resistant and scrap-iron-resistant;
5. Better dynamics and higher precision;
6. Increasing the versatility and automation of the lathe.
Specification:
Specification | SWL10 |
Capacity |
Chuck size | 10'' |
Max. swing dia. over bed | φ520mm |
Max. length of workpiece | 750,*900,*1400mm (C2C*1000,*1600)mm |
Max. swing dia. over slide | φ280mm,*380mm |
Spindle |
Spindle bore | φ86mm | *φ75mm |
Max. dia. of through-hole | φ75mm | *φ65mm |
Spindle nose | A2-8 | A2-8 |
Spindle speed range | 3000rpm | *3500rpm |
|
Main motor power | 11/15kw, *15/18.5kw |
Axis |
X axis travel | 280mm |
Z axis travel | 750, *1000, *1600mm |
X/Z rapid traverse | 15/20m/min |
Turret |
Center height | 100mm |
No. of tool stations | 8,*12 position |
Tool shank size | 25x25mm |
Tailstock |
Type of tailstock | Hydraulic, *HPT, *SST |
Taper of tailstock quill | MT5 |
Travel of tailstock quill | 150mm |
Travel of tailstock | 100-750/*1000,*1600mm |
Structure |
Slant bed degree | 35° |
Guideway type | LM |
Others |
Power capacity | 20kVA |
Overal dimension (L×W×H) | 3350x2000x2350mm |
Machine weight | 5850kg |
