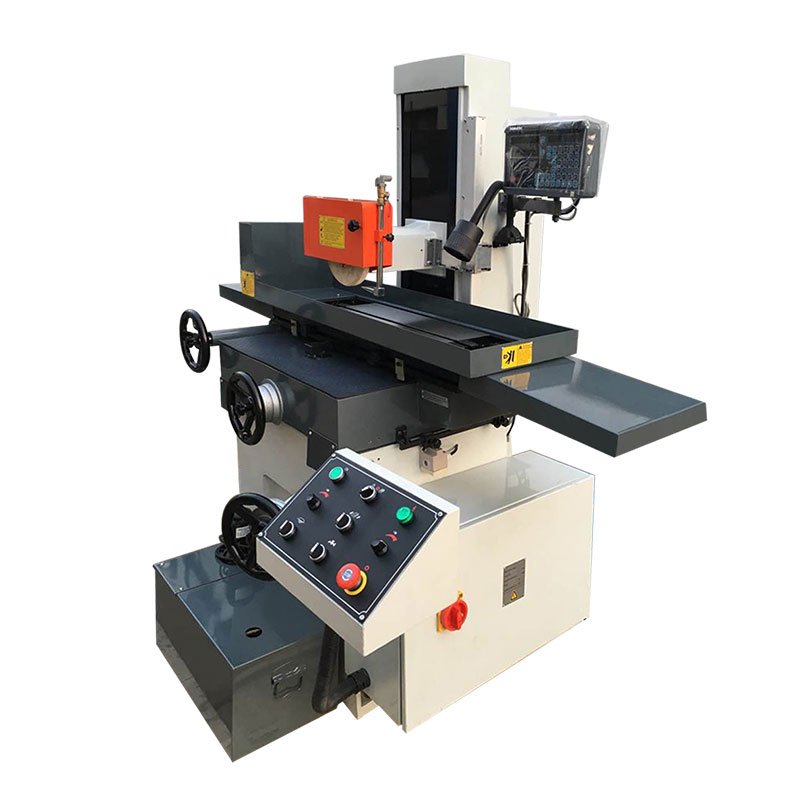

China Horizontal MD820 Small Surface Grinding Machines for Metalworking

  • MD820

  • WMT

Availability:
Quantity:

Product Description

Features:
1. Based on manual surface grinder, it covert the longitudinal and vertical machine to fully automatic.
2. The bidirectional friction electronic clutch, simple and reliable structure, clutch reversing process has no impact, no noise, safe commutation 5000000 times; the electric control part with electronic switching frequency switching, the service life 10 times longer than the relay control, simple operation, sensitive, infinitely variable; large output torque, low noise, safe and reliable.
3. Power supply use a number of mechanical and electrical protection function which is safe voltage, energy saving, power saving, power consumption per class (calculated according to 8 hours) is only 0.6.
4. When the manual grinding is working, before and after the workbench's movement, in and out, around the reversing are automatic operation, greatly improving the production's efficiency and the surface finish, suitable scope that from the original single, small batch to mass batch.


MD820-主图

Specification MD820
Max.workpiece to be ground(LxWxH)  mm 450x200
Maximum travel of table(LxW)        mm 470x220
Table maximum cutting area(LxW)     mm 470x220
Number of T-Slot  mm 1x14
Distance from table surface to spindle center    mm 430
Wheel size(diaxwidthxbore)  mm 200x20x31.75
Spindle speeds   r/min 2800
Table longitudinal(left and right) speed (stepless)  m/min 3-23
Table horizontal (before and after) the amount of feed  Continuous(variable speed) mm/min 150
Intermittent(stepless)      mm/time 0-5
The handwheel rotates     mm 2.5
Hand wheel each grid      mm 0.02
Vertical (up and down) feed wheel feed  The handwheel rotates  mm 1.25
Hand wheel each grid     mm 0.01
The total input power          w 150
X-feeder output speed          /min 0-225
X-feeder size            mm 280x130x120
Y-feeder output speed         /min 0-120
Y-feeder size              mm 280x130x120
Spindle motor     kw 1.5
Cooling motor     kw 0.04
The machined surface of the base of parallelism    mm 300/0.005
Surface roughness    μm Ra0.32
Net     kg 800
Cross    kg 890
Package size(LxWxH) mm 1140x1410x1900
