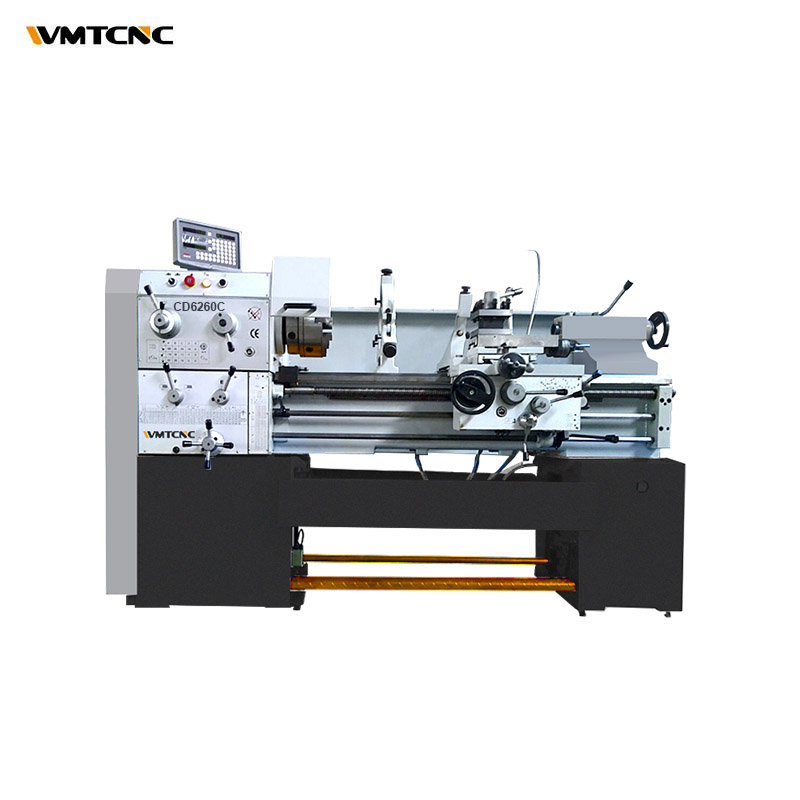

CD6260C
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Features:
1. The bed rails are quenched and precision ground.
2. The spindle is supported with precision roller bearings.
3. Head stock gears are made of high quality steel ground and hardened.
4. Monoblock cast iron base ensures high rigidity of the whole machine.
| Specification | CD6260B/C |
| Max. swing over bed | φ600mm |
| Max. swing over cross slide | φ360mm |
| Max. swing over gap | φ730mm |
| Effective length of gap | 260mm |
| Distance between centers | 1000mm/1500mm/2000/3000mm |
| Bed width | 330mm |
| Spindle bore | B:φ65mm C:φ80mm(optional:103mm) |
| Spindle nose | B:ISO-D6, C:ISO-D8 |
| Spindle speed(Number) | B:20-1800rpm(15steps) |
| C:24-1600rpm(15steps) | |
| Longitudinal feeds range | 66kinds 0.072-4.038mm/rev(0.0027-0.15inch/rev) |
| Cross feeds range | 66kinds 0.036-2.019mm/rev(0.0013-0.075inch/rev) |
| Metric threads range | 66kinds 0.5-28 |
| Inch threads range | 66kinds 1-56inch |
| Module threads range | 33kinds 0.5-3.5mπ |
| Diametric threads range | 33kinds 8-56D.P. |
| Max. travel of top slide | 130mm |
| Max. travel of cross slide | 300mm |
| Max. section of tool | 25×25mm |

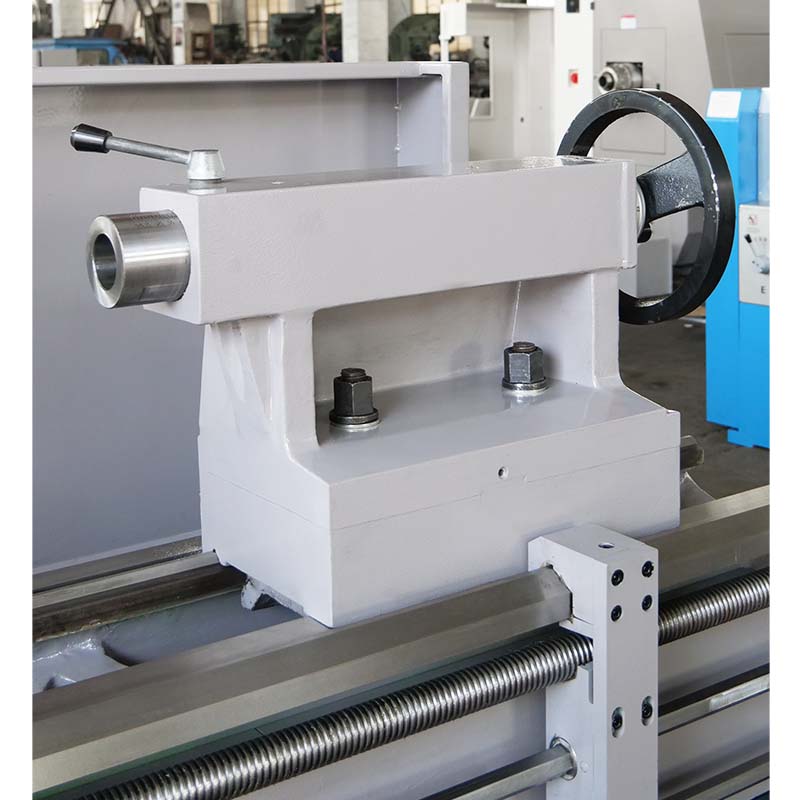

| Dia. of tailstock sleeve | φ65mm |
| Taper of tailstock sleeve | MT5 |
| Max. travel of tailstock | 120mm |
| Main motor power | 7.5kw |
| Rapid traverse motor | 120w |
| Coolant pump motor | 125w |
| Packing size | 2420/2920/3460/4720×1150mm×1800mm |
