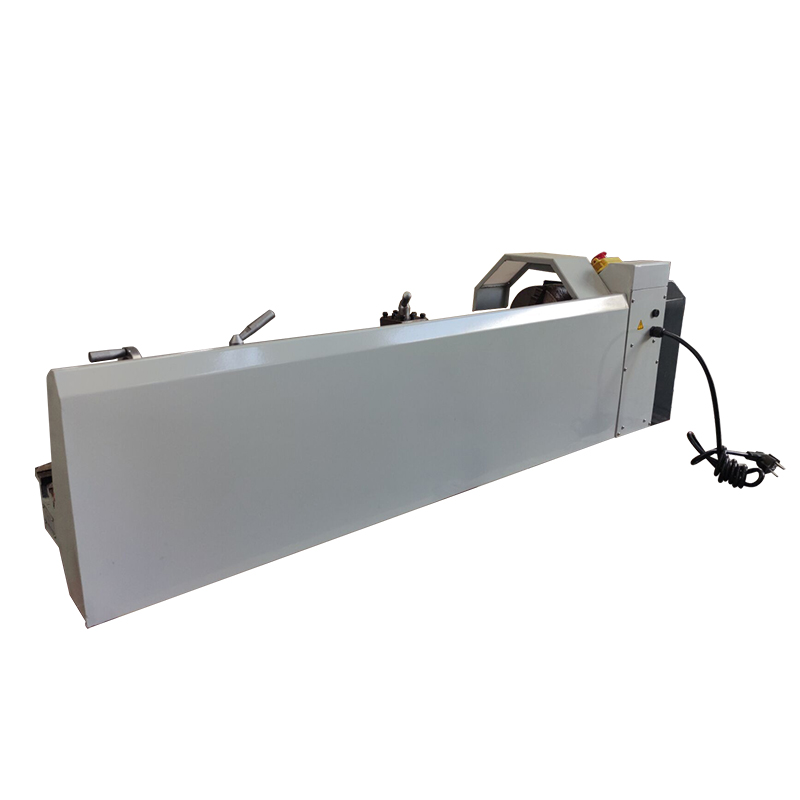

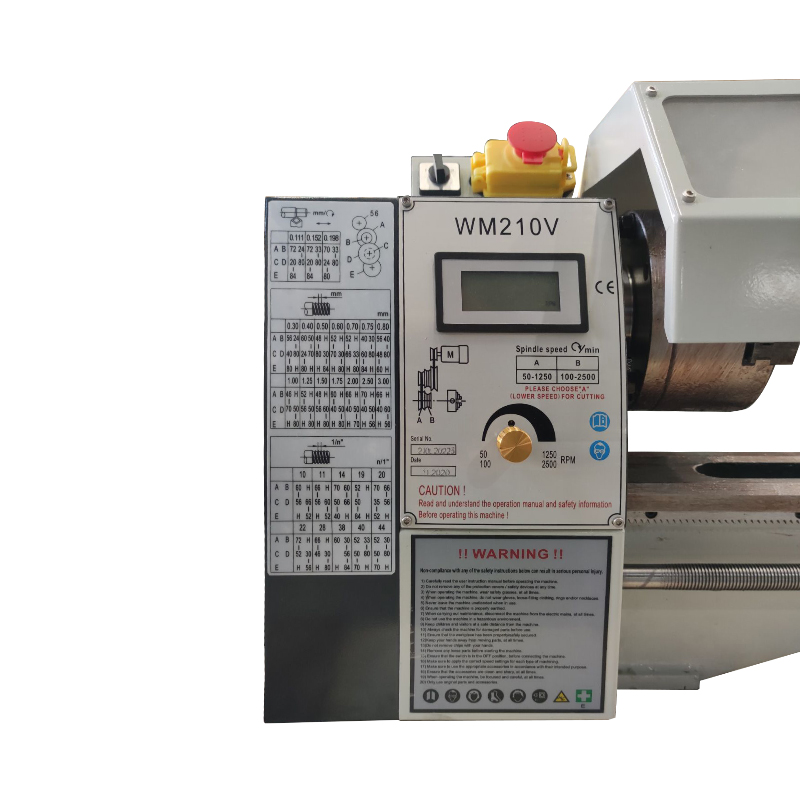

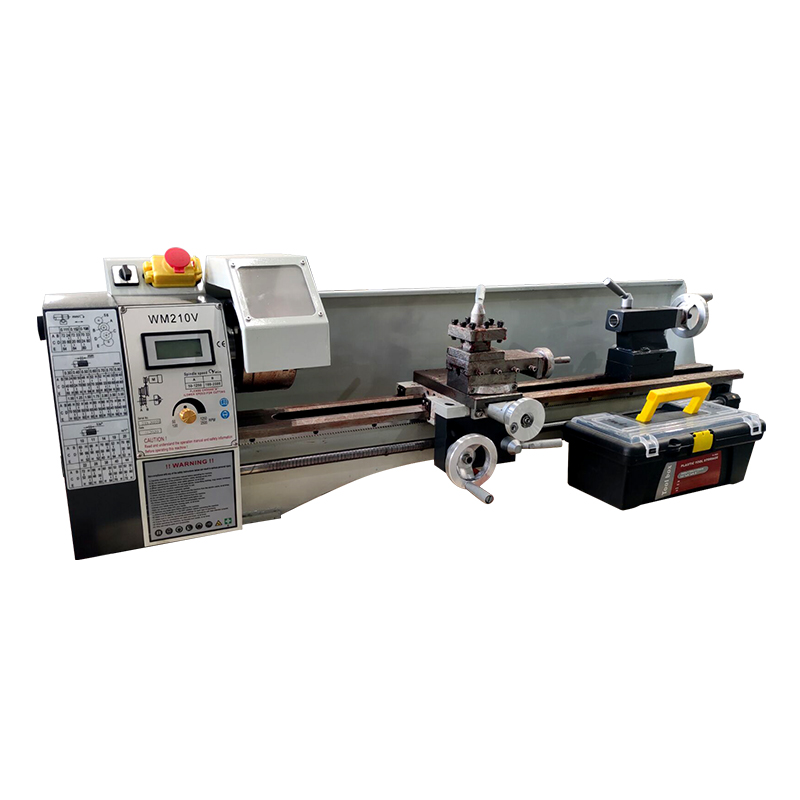

D210V
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Features:
1. Precision ground and hardened bed ways.
| Specification | D210V |
| Swing over bed | Φ210mm |
| Swing over cross slide | Φ135mm |
| Admits between centers | 400mm |
| Center height | 105mm |
| Width of bed | 100mm |
| Spindle bore | Φ21mm |
| Taper of spindle bore | MT3 |
| Range of spindle speed | 50-2500rpm |
| Compound rest travel | 75mm |
| Cross slide travel | 100mm |
| Lead screw thread | Tr16X2-L |
| Max.Section of tool(W×H) | 10X10mm |
| Threads metric pitches | 0.25-3mm |
| Threads imperial pitches | 8-44TPI |
| Quill diameter | Φ25mm |
| Quill travel | 50mm |
| Quill taper | MT2 |
| Main motor power | 600W/230V 50HZ |
| Dimensions(L*W*H) | 890×390×310mm |
| Net weight/Gross weight | 58/75kgs |
| Shipping dimensions(L*W*H) | 910×500×510mm |
