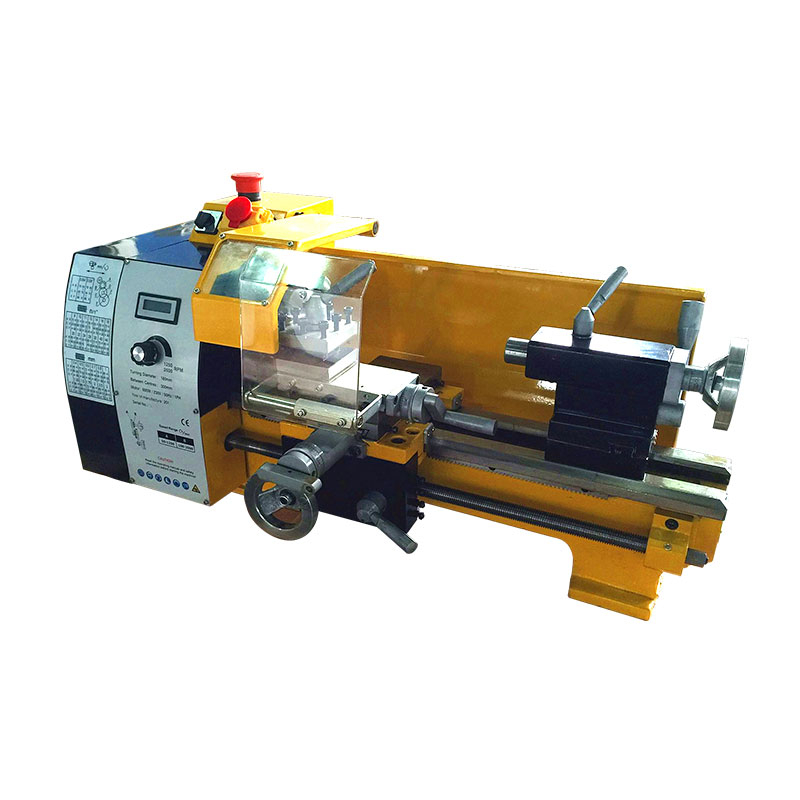

D180V Mini Metal Lathe Machine for Sale with CE

  • D180V
  • WMT
Quantity:

Product Description

D180V -1

Specifications D180V
Max. swing over bed 180mm
Max. swing over cross slide 110mm
Max. compound slide travel 55mm
Max. carriage slide travel 75mm
Max. carriage travel 195mm
Distance between centers 300mm
Width of bed 100mm
Spindle bore 21mm
Spindle taper MT3
Spindle speed Variable: 50-2500rpm
Range of metric threads 10 kinds: 0.5-3mm
Range of imperial threads 8 kinds: 8-44 T.P.I
Max. travel of tailstock quill 60MM
Tailstock taper MT2
Motor power DC motor:450W or 600W,Optional brushless motor:550W
N.W./G.W. 60/70kgs
Machine size(LXWXH) 740x390x370mm
Packing size 800x480x450mm
