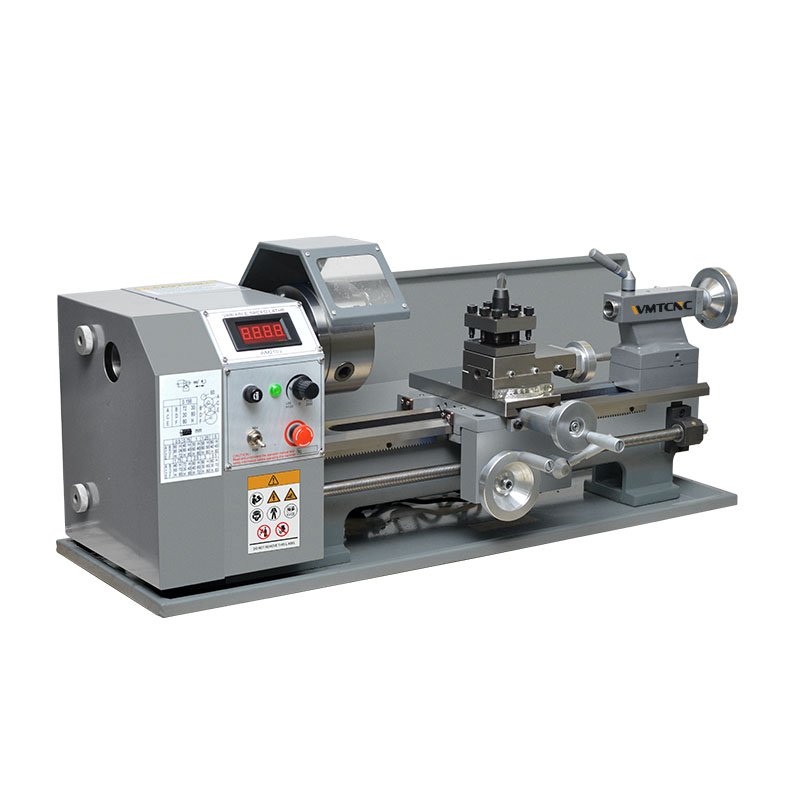

D210V
WMTCNC
| Quantity: | |
|---|---|
Product Description
Features:
1) Precision ground and hardened bed ways.
2) The spindle is supported with precision roller bearings.

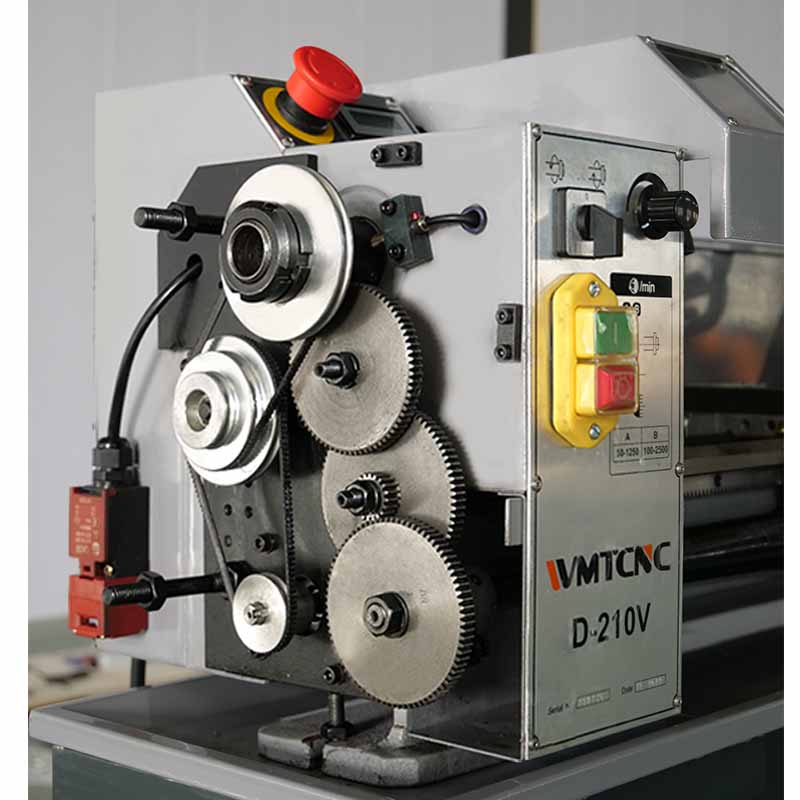

3) Headstock gears are made of high quality steel, ground and hardened.

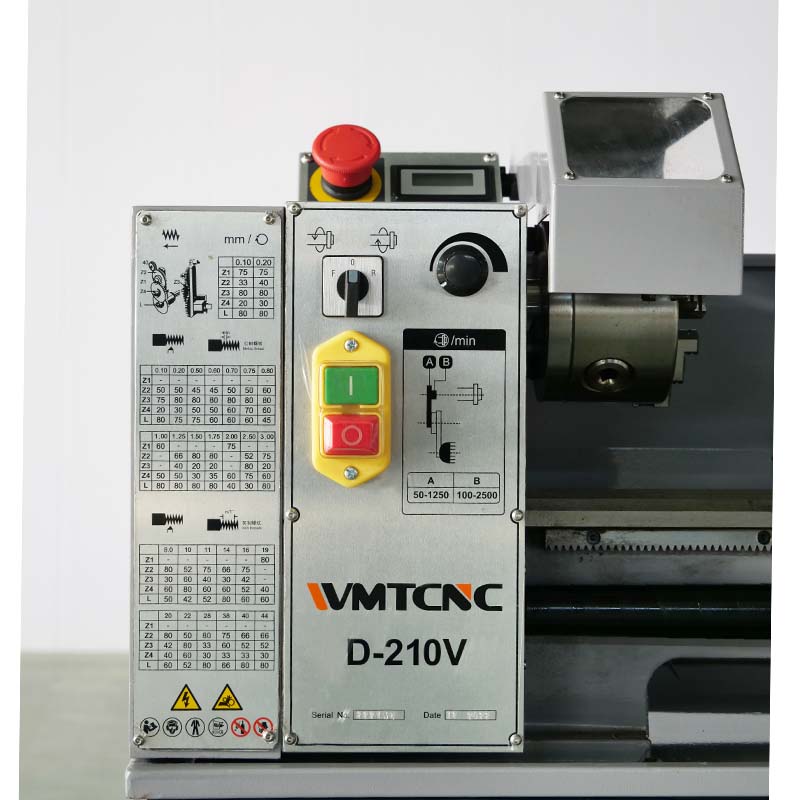

4) Easy operating speed change levers.
5) Easy operating gear box has various feeds and thread cutting function.
| Specification | D210V |
| Max. swing over bed | 210 mm |
| Max. swing over cross slide | 110mm |
| Max. compound slide travel | 55mm |
| Max. carriage slide travel | 75mm |
| Max. carriage travel | 276mm |
| Distance between centers | 400mm |
| Width of bed | 100mm |
| Spindle bore | 21mm |
| Spindle taper | MT3 |
| Spindle speed | Variable:50-2500rpm |
| Range of metric threads | 10 kinds:0.5-3mm |
| Range of imperial threads | 8 kinds:8-44TP.I |
| Max. travel of tailstock quill | 60mm |
| Tailstock taper | MT2 |
| Motor power | DC motor:450w or 600w, Optional brushless motor:550w |
| Machine size(LxWxH) | 840x390x370mm |
| Packing size | 910x480x470mm |
| N.w/G.w | 70/77kg |
