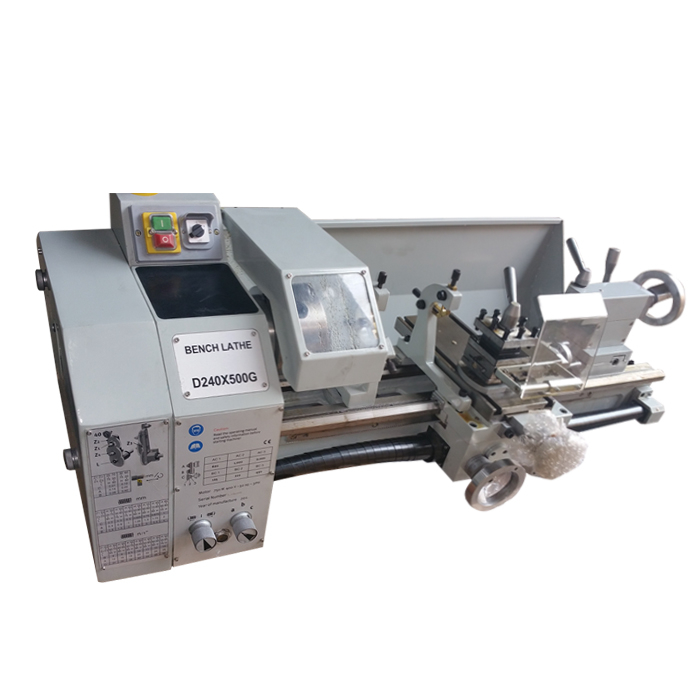

D240X500
WMTCNC
| Quantity: | |
|---|---|
Product Description
Features:
Precision ground and hardened bed ways.
The spindle is supported with precision roller bearings.
Headstock gears are made of high quality steel, ground and hardened.
Easy operating speed change levers.
| Specification | D240×500G |
| Max.swing over bed | 250mm（10＂） |
| Distance between centers | 550mm（22＂） |
| Spindle bore | 21mm |
| Taper of spindle bore | MT3 |
| Rang of spindle speeds(6 Steps) | 125-2500rpm |
| Taper of tailstock quill | MT2 |
| Metric threads can be cut | 0.2-3.5mm |
| Inch threads can be cut | 8-56T.P.I |
| Motor power | 0.6kw |
| N.W/G.W | 120/150kw |
| Package size(L×W×H) | 1200×560×580mm |
