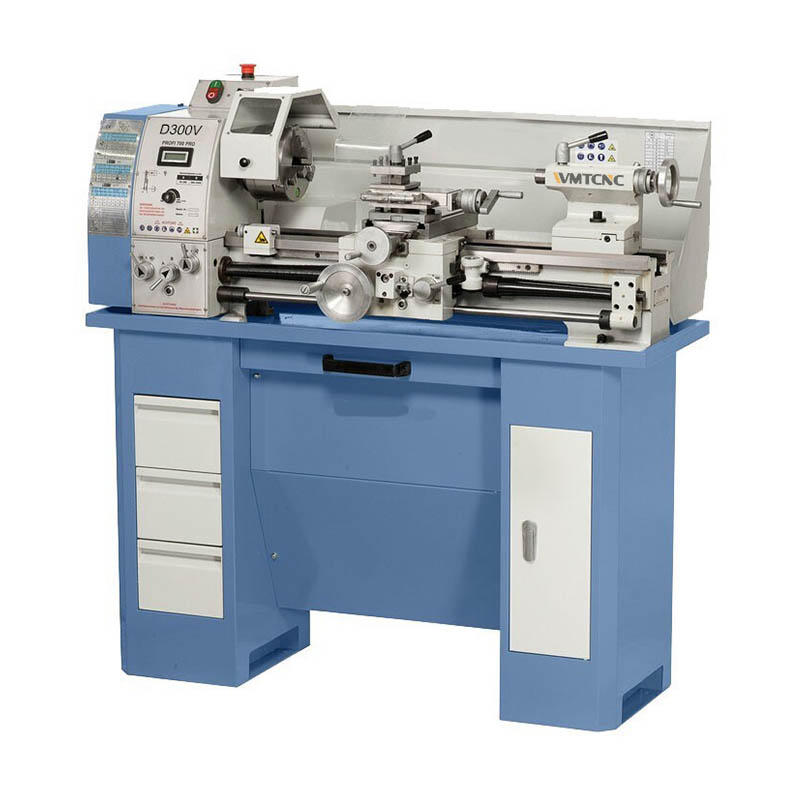

D300V
WMTCNC
| Quantity: | |
|---|---|
Product Description
Features:
1) Precision ground and hardened bed ways.
2) The spindle is supported with precision roller bearings.
3) Headstock gears are made of high quality steel, ground and hardened.
4) Easy operating speed change levers.
5) Easy operating gear box has various feeds and thread cutting function.
| Model | D300V |
| Max. Stroke Over Bed | 300mm |
| Max. Workpiece Length | 800/900mm |
| Max. Stroke Over Cross Slide | 180mm |
| Bed Width | 182mm |
| Spindle Bore | 38mm |
| Spindle Taper | MT5 |
| Spindle Speed Range (Variable Speed) | 80-2000rpm |
| Metric Thread Range | 0.2-3.5mm |
| Inch Thread Range | 8-48TPI |
| Top Slide Travel | 70mm |
| Cross Slide Travel | 170mm |
| Tailstock Quill Travel | 70mm |
| Tailstock Quill Taper | MT3 |
| Motor Power | 1100w |
| Packaging Dimensions (L×W×H) | 1450/1550×700×680mm |
| N.W. | 260/270kg |
| G.W. | 280/290kg |
