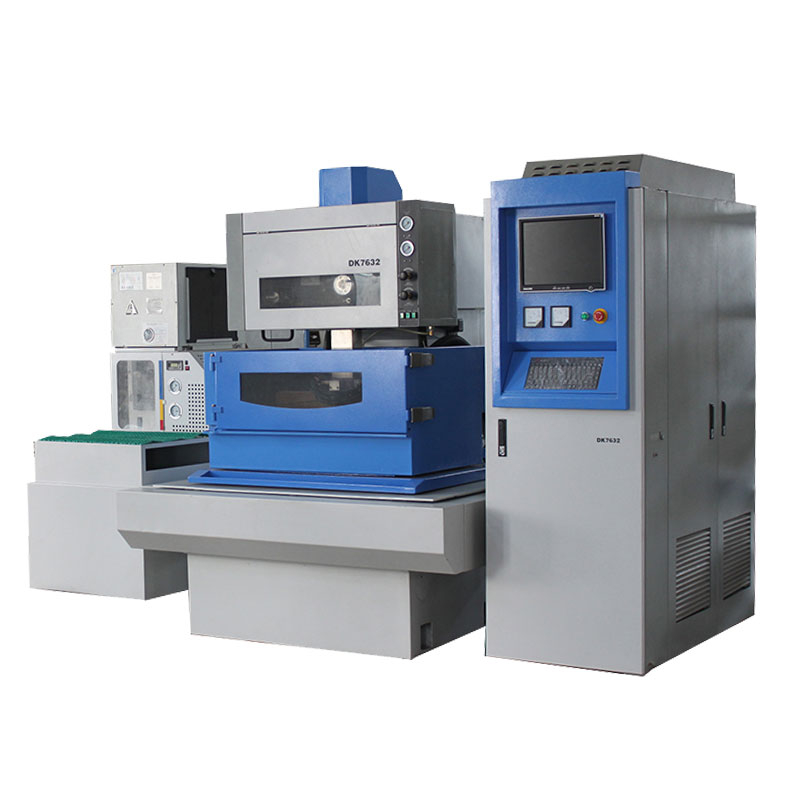

DK7632 CNC Slow-wire EDM Cutting Machine for Stainless Steel

  • DK7632
  • WMTCNC
Quantity:

Product Description

Features:

DK7632 CNC slow-Wire Cutting machine can process kinds of conducting materials such as stainless steel, heat-resistant steel, hardened steel, hard alloy, especially suitable for machining dies such as punch dies, progressive die, hard alloy accuracy sintering die with high processing accuracy and high roughness. Machine has high precision, good reliability, rich NC feature, low price with high performance with cost, which is ideal for mold manufacturing.


DK7632主图01

Specification DK7632
Travel of work table (X/Y axis) 320x500mm
Travel of U, V axis +/- 50mm
Travel of Z axis 250mm
Work table size 720x490
Max. workpiecesize 900x670x260
Max. cutting thickness 210mm
Max. workpiece weight 500kg
Max. cutting slope +/-15 degrees/100mm
Using wire electrode diameter range ¢0.15~¢0.3mm
Wire electrode tension 2-15N
Wire electrode running speed 1-12m/min


Dedicated to the policy of precision and promotion from stability, the group spares no effort in innovation, improvement, integrity management and insured quality.
