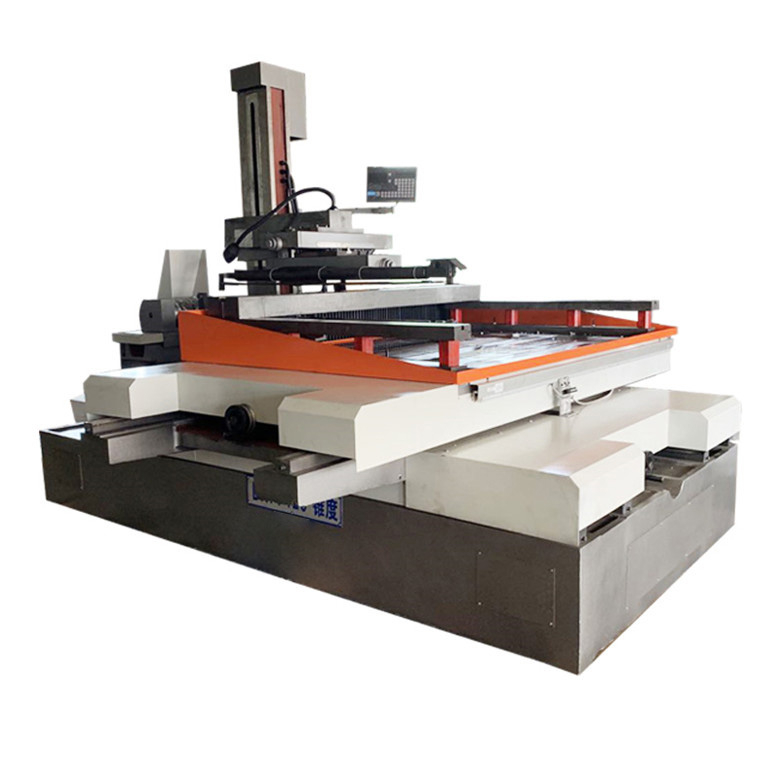

DK77160
WMT
| Quantity: | |
|---|---|
Product Description
Features:
Use high-quality casting materials, resin sand process, enhanced internal stiffeners, after 2nd tempering and natural aging, which reduces casting distortion. Guide rail after bearing steel forging through heat treatment, to reach the standard hardness and extend the using life.
| Model | Worktable travel(mm) | Worktable size(mm) | Max. cutting thickness(mm) | Max. load(kg) | Dimensions(mm) | Weight(kg) |
| DK7720 | 200*250 | 420*270 | 200 | 100 | 1250*950*1250 | 500 |
| DK7725 | 250*320 | 520*340 | 300 | 200 | 1450*900*1500 | 600 |
| DK7735(32) | 350(320)*450(400) | 710*460 | 400 | 300 | 1400*1100*1600 | 700 |
| DK7745(40) | 450(400)*550(500) | 810*570 | 400 | 450 | 1600*1200*1600 | 900 |
| DK7745F(40F) | 450(400)*630 | 950*600 | 400/600 | 600 | 1600*1580*1600 | 1000 |
| DK7755(50) | 550(500)*650(630) | 950*650 | 700 | 700 | 2000*1500*1900 | 1600 |
| DK7755F(50F) | 550(500)*800 | 1140*650 | 700 | 700 | 2000*1650*1900 | 1800 |
| DK7763 | 630*800 | 1140*750 | 700 | 1000 | 2100*1700*2050 | 2000 |
| DK7763F | 630*1000 | 1350*750 | 700 | 1200 | 2250*1850*2050 | 2500 |
| DK7780 | 800*1000 | 1350*980 | 900 | 2000 | 2400*1900*2350 | 4000 |
| DK7780F | 800*1200 | 1600*1050 | 900 | 2400 | 2550*1950*2400 | 4500 |
| DK77100 | 1000*1200 | 1600*1100 | 1000 | 2600 | 2850*2500*2500 | 5000 |
| DK77100F | 1000*1400 | 1800*1250 | 1000 | 2800 | 2950*2050*2500 | 5500 |
| DK77120 | 1200*1400 | 1800*1350 | 1000 | 3000 | 3050*2750*2500 | 6000 |
| DK77120F | 1200*1600 | 2000*1500 | 1000 | 3500 | 3100*2850*2500 | 6500 |
| DK77160 | 1600*1800 | 2000*1700 | 1000 | 4000 | 3250*3000*2500 | 8000 |
