Features:

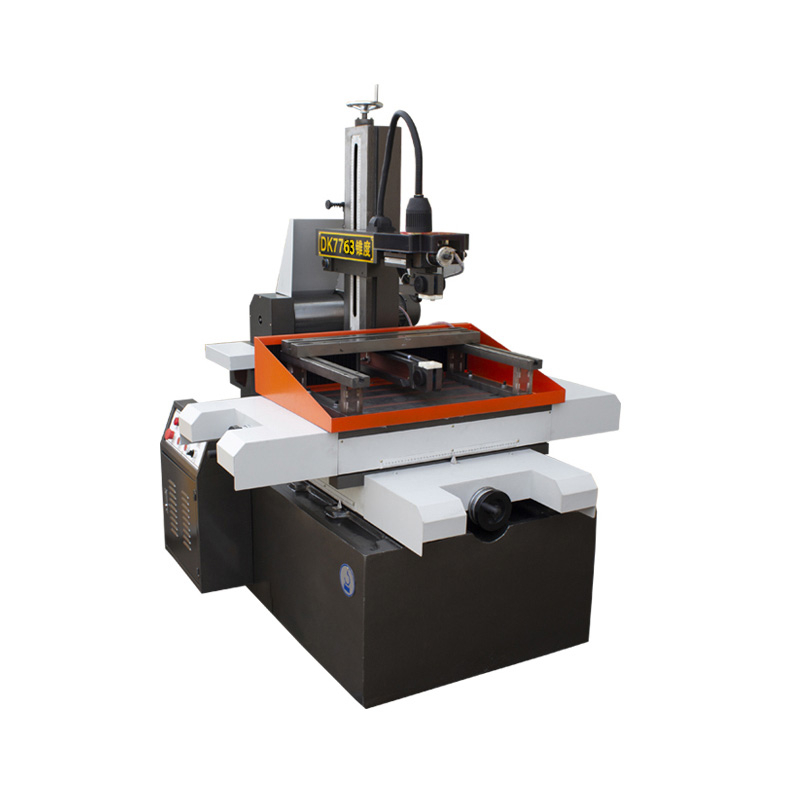

Electric discharge machine DK7763 with good rigidity, high precision, low noise, reasonable price, and easy to operate and maintain. And it has a four-axis linkage, wire breaking protection. Especially suitable for mold processing.
Model | Worktable travel(mm) | Worktable size(mm) | Max. cutting thickness(mm) | Max. load(kg) | Dimensions(mm) | Weight(kg) |
DK7720 | 200*250 | 420*270 | 200 | 100 | 1250*950*1250 | 500 |
DK7725 | 250*320 | 520*340 | 300 | 200 | 1450*900*1500 | 600 |
DK7735(32) | 350(320)*450(400) | 710*460 | 400 | 300 | 1400*1100*1600 | 700 |
DK7745(40) | 450(400)*550(500) | 810*570 | 400 | 450 | 1600*1200*1600 | 900 |
DK7745F(40F) | 450(400)*630 | 950*600 | 400/600 | 600 | 1600*1580*1600 | 1000 |
DK7755(50) | 550(500)*650(630) | 950*650 | 700 | 700 | 2000*1500*1900 | 1600 |
DK7755F(50F) | 550(500)*800 | 1140*650 | 700 | 700 | 2000*1650*1900 | 1800 |
DK7763 | 630*800 | 1140*750 | 700 | 1000 | 2100*1700*2050 | 2000 |
DK7763F | 630*1000 | 1350*750 | 700 | 1200 | 2250*1850*2050 | 2500 |
DK7780 | 800*1000 | 1350*980 | 900 | 2000 | 2400*1900*2350 | 4000 |
DK7780F | 800*1200 | 1600*1050 | 900 | 2400 | 2550*1950*2400 | 4500 |
DK77100 | 1000*1200 | 1600*1100 | 1000 | 2600 | 2850*2500*2500 | 5000 |
DK77100F | 1000*1400 | 1800*1250 | 1000 | 2800 | 2950*2050*2500 | 5500 |
DK77120 | 1200*1400 | 1800*1350 | 1000 | 3000 | 3050*2750*2500 | 6000 |
DK77120F | 1200*1600 | 2000*1500 | 1000 | 3500 | 3100*2850*2500 | 6500 |
DK77160 | 1600*1800 | 2000*1700 | 1000 | 4000 | 3250*3000*2500 | 8000 |
