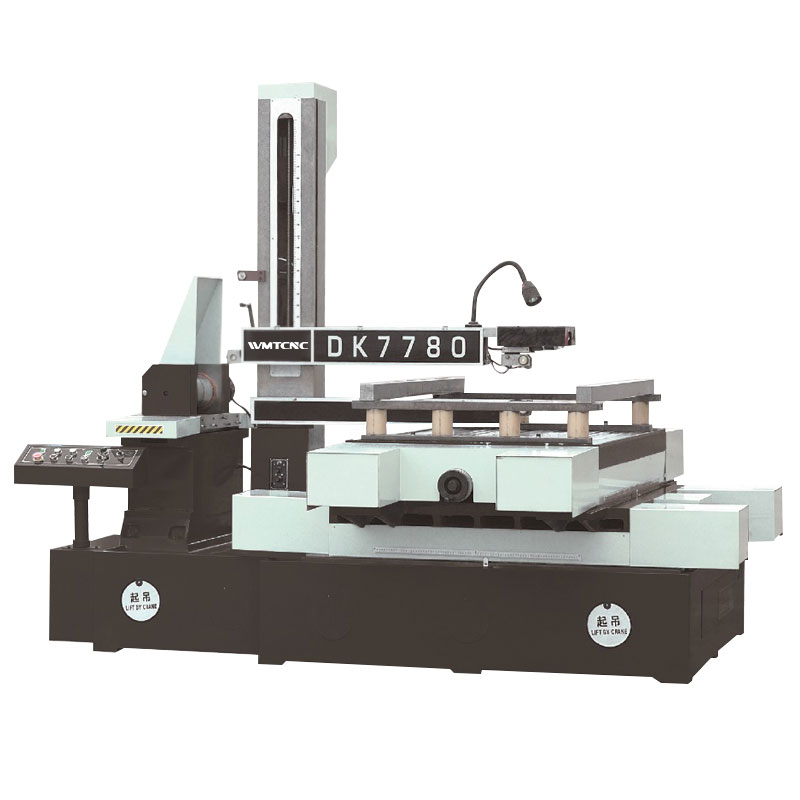

DK7780 High Quality CNC Wire Cutting Machine with CE

  • DK7780

  • WMT

Availability:
Quantity:
Inquire Add to Basket

Product Description

Features:

  • Our DK7780 Wire Edm Machine  has the following advantages: the whole range of different types, reasonable construction, high rigidity, and good machining accuracy. Precision rolling linear guide rail are adopted for top-grade machines. For high vertical column machines electrical up and down motion is used for adjustment of space between two guide wheels.

DK7780

Type Worktable
size		 Worktable
travel		 Max. workpiece
hight		 Taper Max.
workpiece		 Machine weight Machine
dimension
DK7712 200x270 120x160 100 / 50 600 900x700x1250
DK7720 270x420 200X250 200 6/80mm 100 800 1160X880X1400
DK7730 340x560 300X360 400 6~12/80mm 200 1250 1485X1050X1700
DK7735 380x650 350X450 400 6~30/80mm 300 1440 1660X1330X1700
DK7740     410x710 400X500 400 6~60/80mm 450 1600 1830X1490X1700
DK7740B 450x840 400X630 400 6~60/80mm 450 1670 1845X1610X1700
DK7745 500x750 450X550 400 6~60/80mm 450 1650 1865X1610X1700
DK7755 596x880 550X650 500 6~60/80mm 800 2500 2070X1770X1790
DK7755B 596x1060 550X850 500 6~60/80mm 850 2600 2070X1770X1790
DK7763 790x1260 630X1000 600 6~60/80mm 1000 3500 2265X1865X1980
DK7763A 720X1260 630X1000 600 6~60/80mm 1000 3200 2200X2160X1930
DK7780A 880X1440 800X1200 600 6~60/80mm 1500 4700 2700X2300X1900
DK7780B 880X1260 800X1000 600 6~60/80mm 1500 4500 2620X2260X1900
DK77100 1010X1500 1000X1200 600 6~60/80mm 1500 5600 2930X2500X2000
DK77120 1300X1900 1200X1600 500 6~12/80mm 4000 10000 4200X3700X2000
