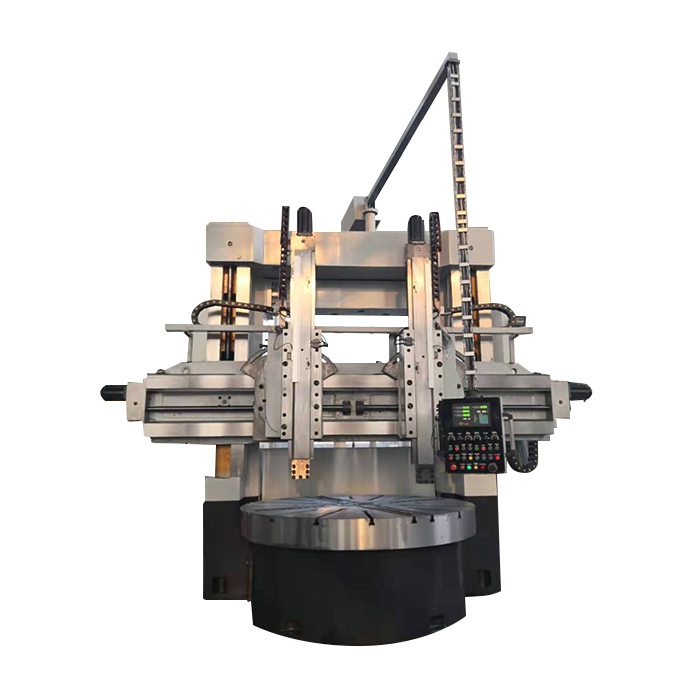

DVT5225
WMTCNC
| Quantity: | |
|---|---|
Product Description
Features:
DVT52 series implement the latest national precision standard and safety standard, equipped with advanced and reliable electro-mechanical components at home and abroad, whose excellent structural performance and strong rigidity can meet the requirement of strong cutting. The table can bear large tonnage load with good stability, high eficiency, safety and relibility. Left and right tool holders of DVT52 series are controlled by DVT system and equipped with digital display scale. Servo drive and X, Z axis feed servo motor are adopted from Beiing Super Synchronous products. The X and Z axes of the left and right tool holders are driven by servo motor through precision planetary reducer to increase the torque to drive the ball screw for horizontal and vertical movements.
| Specification | DVT5225 |
| Table dia. | 2250mm |
| Max. turning dia. | 2500mm |
| Max. workpiece height | 1600/2000/2500mm |
| Max. workpiece weight | 10,*15,*20t |
| Max. torgue of worktable | 63KN.m |
| Table rotation speed range(16 step) | 0.5-60r/min |
| 2-63r/min | |
| Max cutting force of the vertical holder | 32KN |
| Verticai toolholder move limi | ±30° |
| Range of feed rates (18step) | 0.1-500mm/min |
| Horizontal travel of rail head | 1400mm |
| Ram travel of rail head | 1000,*1250mm |
| Beam Travel | 1250mm |
| Ram section | 240x240mm |
| Fast moving speed of tool heads | 3500mm/min |
| Tool bar section size(Wx D) | 40x50mm |
| Main motor power | DC/AV:55KW |
| Overall size(LxWxH) | 7200x5500x4420mm |
| Machine weight | 36t |
