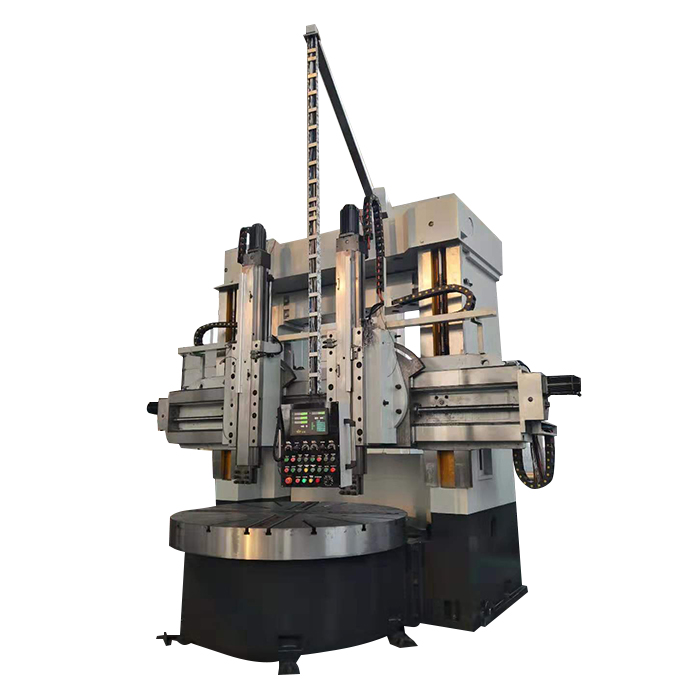

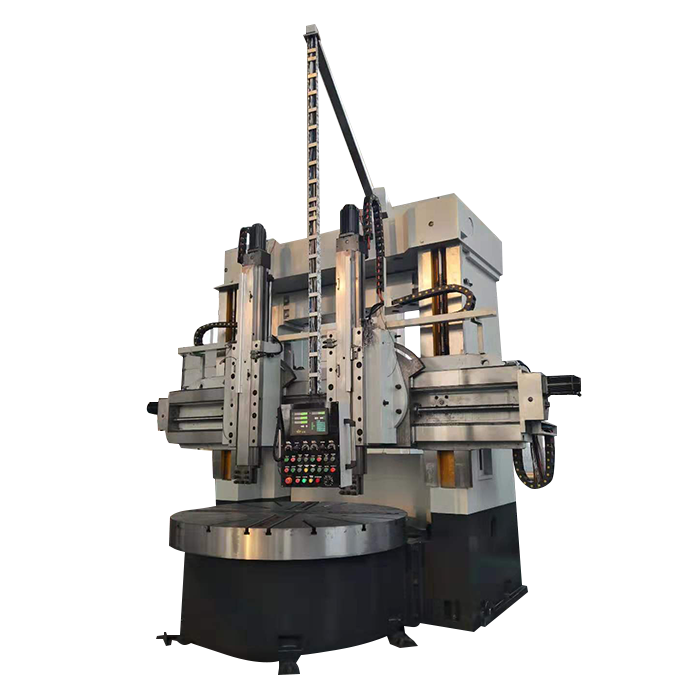

DVT5225
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Features:
1. The vertical lathe machine is for heavy metal cutting;
2. Turning inner and outer cylindrical surfaces and planes; various curved surfaces;
4. Turning inner and outer conical surfaces;
5. Thread turning.
| Specification | DVT5225 | DVT5231 |
| Table dia. | 2250mm | 2830mm |
| Max. turning dia. | 2500mm | 3150mm |
| Max. workpiece height | 1600/2000/2500mm | 1600,*2000,*2500mm |
| Max. workpiece weight | 10,*15,*20t | 10,*15,*20t |
| Max. torgue of worktable | 63KN.m | 63KN.m |
| Table rotation speed range(16 step) | 0.5-60r/min | 0.5-60r/min |
| 2-63r/min | 2-63r/min | |
| Max cutting force of the vertical holder | 32KN | 35KN |
| Verticai toolholder move limi | ±30° | ±30° |
| Range of feed rates (18step) | 0.1-500mm/min | 0.1-500mm/min |
| Horizontal travel of rail head | 1400mm | 1725mm |
| Ram travel of rail head | 1000,*1250mm | 1000,*1250mm |
| Beam Travel | 1250mm | 1250mm |
| Ram section | 240x240mm | 240x240mm |
| Fast moving speed of tool heads | 3500mm/min | 3500mm/min |
| Tool bar section size(Wx D) | 40x50mm | 40x50mm |
| Main motor power | DC/AV:55KW | DC/AV:55KW |
| Overall size(LxWxH) | 7200x5500x4420mm | 7900x6200x4420mm |
