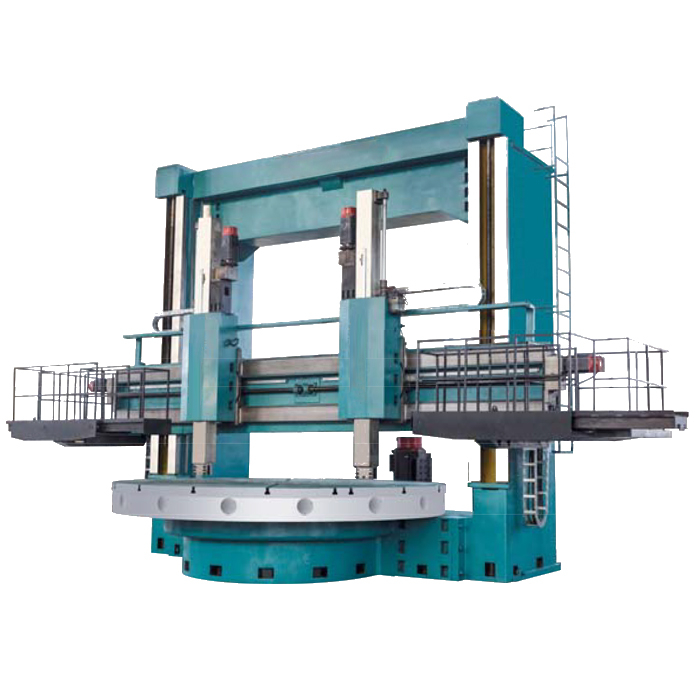

DVT5250
WMT
| Quantity: | |
|---|---|
Product Description
| Specification | DVT5250Q | DVT5250 |
| Table dia. | 4500mm | 4500mm |
| Max. turning dia. | 5000mm | 5000mm |
| Max. workpiece height | 2000,*2500,*31500mmmm | 2000,*3150mm |
| Max. workpiece weight | 40t | 65t |
| Max. torgue of worktable | 80KN.m | 100KN.m |
| Table rotation speed range(16 step) | 1-45r/min | 0.42-42r/min |
| 0.42-45r/min | ||
| Max cutting force of the vertical holder | 40KN | 50KN |
| Verticai toolholder move limi | ±30° | ±30° |
| Range of feed rates (18step) | 0.1-500mm/min | 0.1-500mm/min |
| Horizontal travel of rail head | 2765mm | 2765mm |
| Ram travel of rail head | 1250,*1600mm | 1250,*1600mm |
| Beam Travel | 2000mm | 2000mm |
| Ram section | 300x250mm | 280x280mm |
| Fast moving speed of tool heads | 3500mm/min | 3500mm/min |
| Tool bar section size(Wx D) | 50x50mm | 50x50mm |
| Main motor power | DC/AV:75KW | DC/AV:90KW |
| Overall size(LxWxH) | 9900x8750x5100mm | 9900x8750x5100mm |
| Machine weight | 67,*69,*72t | 81,*84t |
