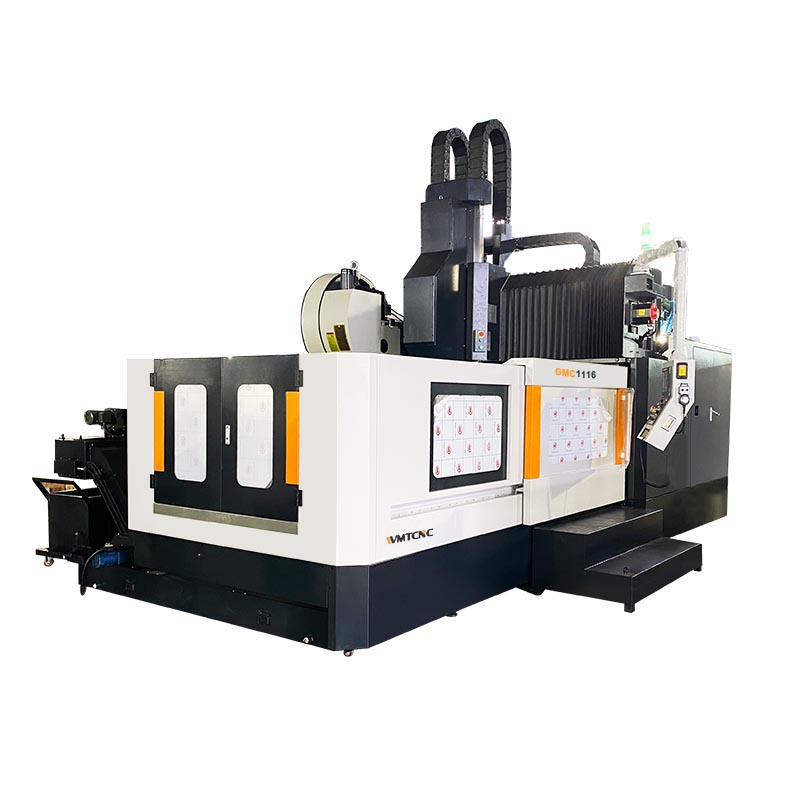

GMC1116
WMT
8457101000
| Quantity: | |
|---|---|
Product Description
Features:
This machine is suitable for milling, boring, drilling, threading, etc. Machining ferrous and non ferrous metals, it can finished various process with only once install the work piece, ensure the quality of products and production efficiency.
| Specification | GMC1116 |
| Worktable | |
| Worktable size (L×W) | 1600×1000mm |
| T-slots size (N×W×D) | 7-22x125mm |
| Travel | |
| X/Y/Z axis travel | 1650/1100/600mm |
| Capacity | |
| Distance from spindle nose to worktable surface | 160-760mm |
| Distance between two columns | 1250mm |
| Spindle | |
| Spindle taper | BT50 |
| Spindle power | 15/18.5kw |
| Max. spindle speed | 7000rpm |
| Spindle torque | 143N·m |
| Feed | |
| Rapid feed speed (X/Y/Z) | 20/20/12m/min |
| Ball screw (diameter+lead) | |
| X/Y/Z axis ball screw | 6320/5012/5020 |
| X/Y/Z guideway type | X/Y:roller linear guideways, Z:box guideway |
| Tool magazine | |
| Tool magazine capacity | 24T |
| Max. length of tool | 350mm |
| Tool change time (T-T) | 3s |
| Positioning accuracy (GB standard) | |
| Positioning accuracy（X/Y/Z） | 0.03mm |
| Re-positioning accuracy（X/Y/Z） | 0.018mm |
| Machine dimension | |
| L×W×H | 6000×4000×3900mm |
| Machine weight | |
| Max. loading of worktable | 3.5t |
| N.W | 18t |
