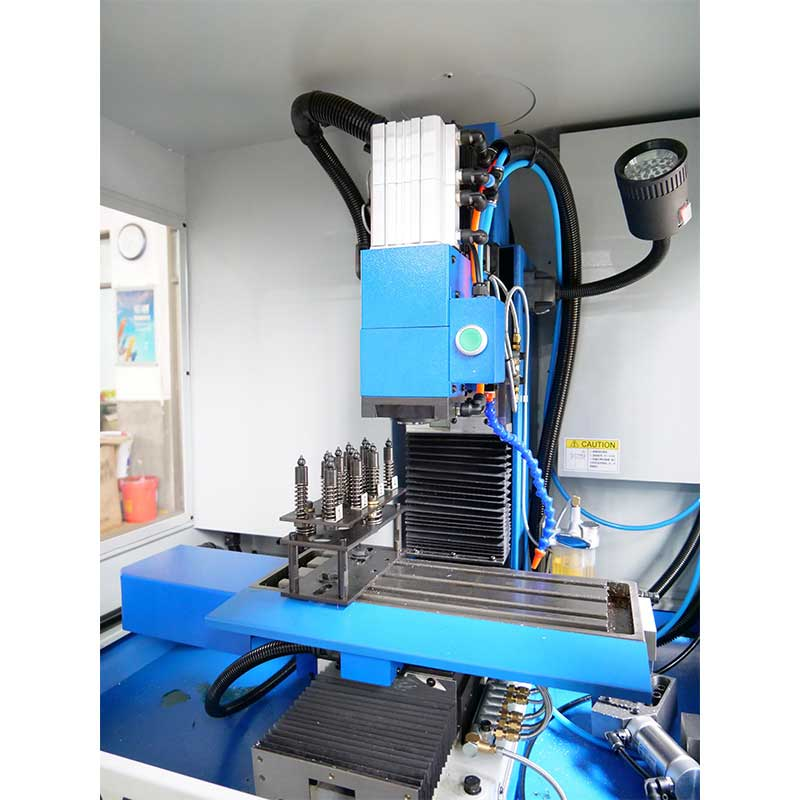

XK7115 Super
WMT
8459619000
| Quantity: | |
|---|---|
Product Description
Features:
CNC system based on PC platform, high reliability and easy operation.
Selected high-quality material casting, compact structure.
High-strength cast hard rail, Taiwan-made ball screw.
Optional FANUC panel, which is exactly the same as FANUC system operation, which is convenient for operators who operate FANUC system for a long time.
Comply with EU CE safety certification.
| Specification | XK7115 Super |
| Worktable size | 400×125mm |
| T-slot size | 3×8×35 |
| Loading capacity of worktable | 20kg |
| X axis travel | 260mm |
| Y axis travel | 110mm |
| Z axis travel | 180mm |
| Distance from spindle nose to worktable surface | 60-240mm |
| Distance from spindle center to column | 125mm |
| Spindle taper | MT2 |
| Spindle power | 500w |
| Spindle speed | 100-7000r/min |
| X/Y/Z rapid feed speed | 2000mm/min |
| X/Y/Z turning speed | 500mm/min |
| X/Y/Z axis torque | X/Y:1.35 Nm Z: 2.2Nm |
| Positioning accuracy | 0.015mm |
| Re-positioning accuracy | 0.01mm |
| Voltage | 230/120V |
| N.W/G.W | 280/340kg |
| Machine size (LxWxH) | 1040×860×940mm |
| Packing size (LxWxH) | 1170×960×1100mm |
