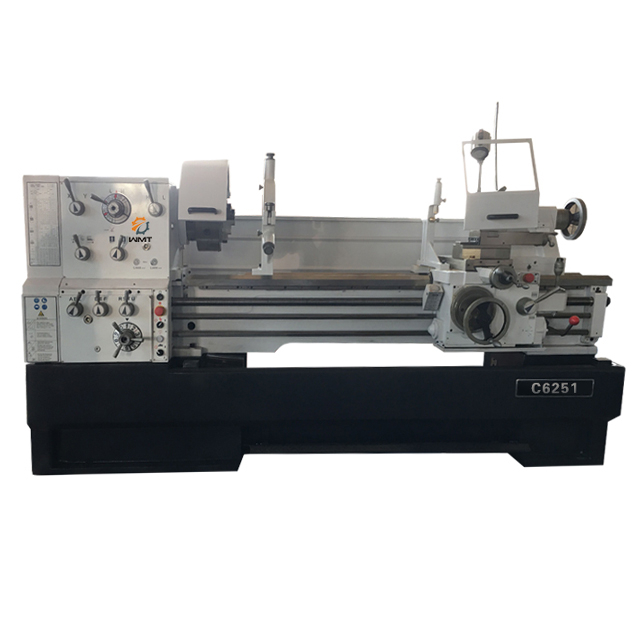

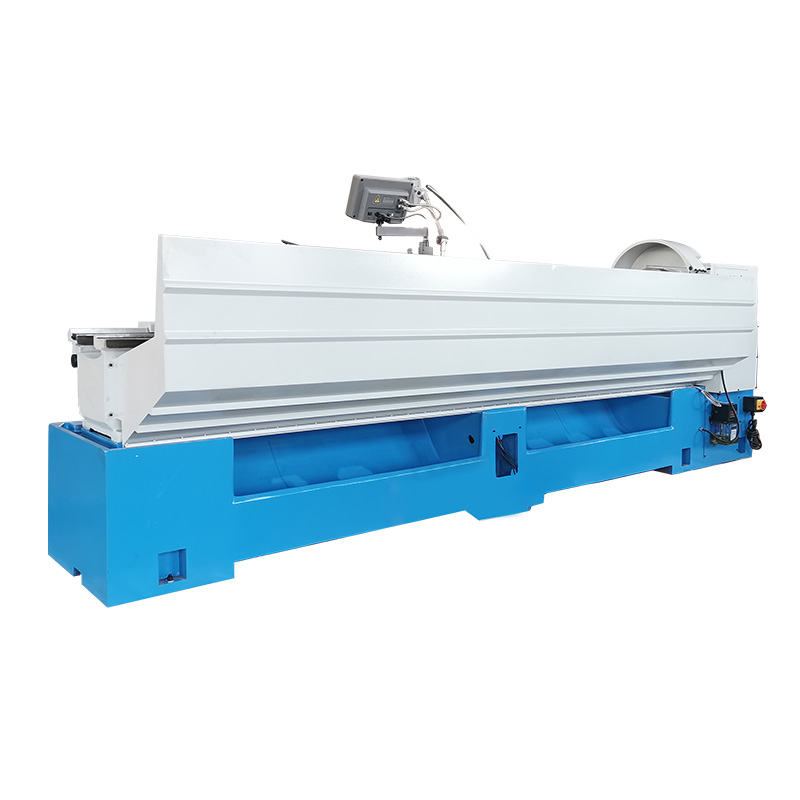

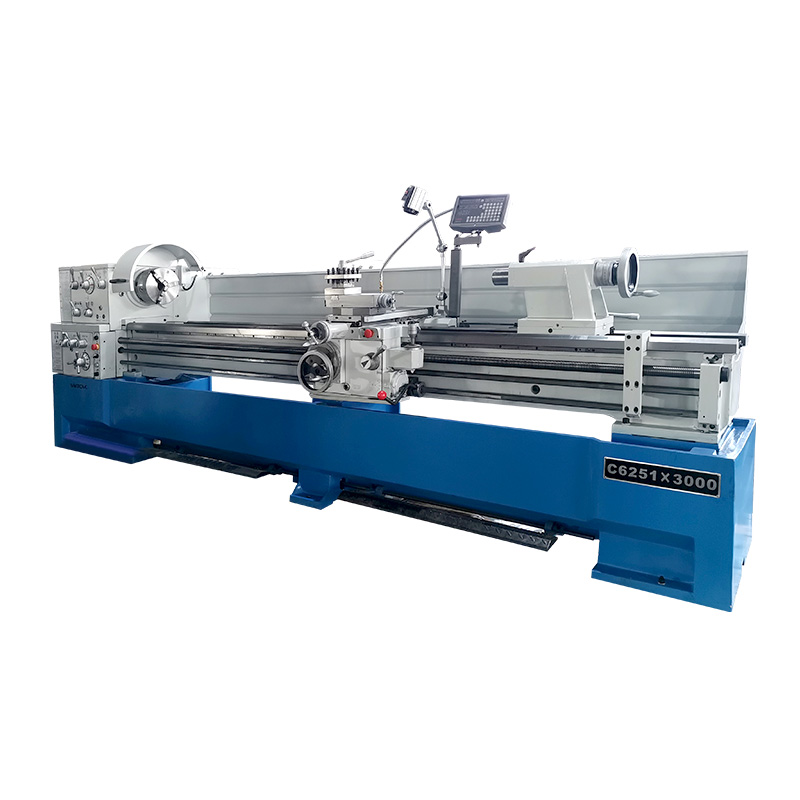

Engine Lathe C6251- 80mm Spidle Bore High Precision Metal Lathe

  • C6251
  • WMT
  • 84581900
Quantity:

Product Description

Features:

  • Surface hardening and precision grinding of the bed guide.

  • The spindle bearing adopts precision tapered roller bearings.

  • The spindle gear adopts high quality steel surface quenching and fine grinding.

  • The unloaded saddle provides a larger rotary diameter.

  • A pedal brake device.

  • The structure of the patented delivery box.

C6251

Specification C6251
Swing over bed Φ510mm
Swing over cross slide Φ300mm
Swing in gap Φ738mm
Distance between centers 1000mm/1500mm/2000mm/3000mm
Valid length of gap 165mm 200mm
Width of bed 300mm 350mm
Spindle nose D1-6 D1-8
Spindle bore Φ58mm Φ80mm
Taper of spindle bore MT6 MT7
Range of spindle speed 12 changes, 25-2000r/min 12changes,25-1600r/min
Max.travel of top slide 128mm 130mm
Max.travel of cross slide 285mm 326mm
Max.section of tool 25×25mm
Pitch thread of leadscrew 6mm or 4T.P.I.
Longitudinal feeds range 42 kinds,0.031-1.7mm/rev 35kinds,0.059-1.646mm/rev
Cross feeds range 42 kinds, 0.014-0.784mm/rev 35kinds,0.020-0.573mm
Metric threads range 41 kinds, 0.1-14mm 47kinds,0.2-14mm
Inch threads range 60 kinds, 2-112T.P.I. 60kinds,2-112T.P.I
Diametrical pitches range 50 kinds, 4-112DP 50kinds,4-112D.P.
Module pitches range 34 kinds, 0.1-7MP 39kinds,0.1-7M.P.
Tailstock quill diameter Φ60mm Φ75mm
Tailstock quill travel 128mm 180mm
Tailstock quill taper MT4 MT5
Power of main motor 5.5kw(7.5HP) 3PH 7.5kw(10HP)3PH
Power of coolant pump 0.1kw(1/8HP) 3PH
Overall dimension  2200/2750/3250×1080×1370mm 2900/3400×1120×1430mm
Packing size 2250/2800/3300×1120×1620mm 2960/3460×1130×1820mm
Net weight 1670/1920/2070kgs 2335/2685kgs
Gross weight 1980/2265/2450kgs 2700/3070kgs

Standard accessories:

  • 3 jaw chuck

  • 4 jaw chuck

  • Face plate

  • Coolant system

  • Working light

  • Foot brake

  • Rapid travel

  • Steady rest

  • Follow rest

  • Change gears set

  • Tool box& tools
