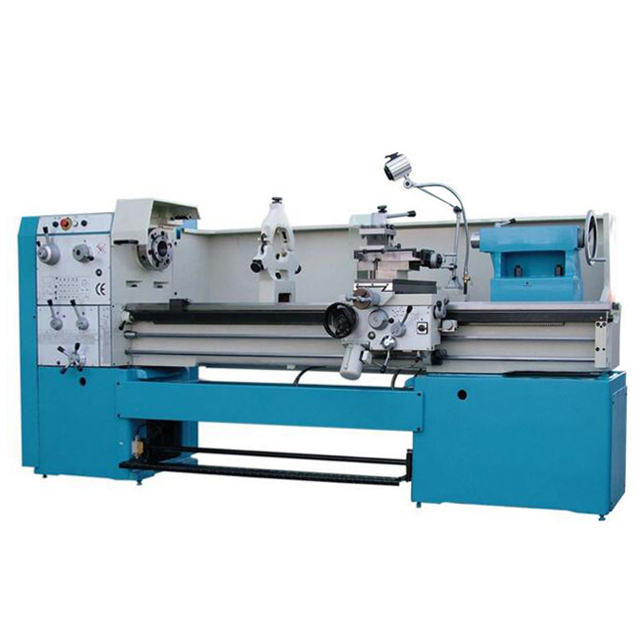

Engine Lathe CD6240B-Precision Toolroom Metal Lathe Three-Phase

  • CD6240B

  • WMT

  • 84581900

Availability:
Quantity:

Product Description

Features:

  • Oversized spindle bore of 65/80mm;

  • Main spindle dynamic balanced, and supported at 2 points with taper roller bearing of Harbin brand;

  • Outward appearance of machine features large plains, making the machine more good-looking;

  • Gapped bedways, which are super-audio frequency hardened (HB450 plus);

  • All gears hardened and ground by Reishauer grinding machine;

  • Leadscrew and feedrod interlocked, both with overload protection;

CD6240B

Specification CD6240B/C
Max.swing over bed Φ400mm
Max.swing over cross slide Φ225mm
Max.swing over gap Φ550mm
Effective length of gap 260mm
Center Distance 1000mm/1500mm/2000mm/3000mm
Bed Width 330mm
Spindle hole B:Φ65mm,C: Φ80mm
Spindle nose B:ISO-D6,C:ISO-D8
Spindle speed(Number) B:20-1800rpm(15steps)                                              C:/24-1600rpm(15steps)
Longitudinal feeds range 66kinds 0.072-4.038mm/rev(0.0027-0.15inch/rev)
Cross feeds range 66kinds 0.036-2.019mm/rev(0.0013-0.075inch/rev)
Metric threads range 66kinds 0.5-28
Inch threads range 66kinds 1-56inch
Module threads range 33kinds 0.5-3.5mπ
Diametric threads range 33kinds 8-56D.P
Max.travel of top slide 130mm
Max.travel of cross slide 300mm
Max.size of tool shank 20×20mm/25×25mm
Dia.of tailstock sleeve Φ65mm
Taper of tailstock sleeve MT5
Max.travel of tailstock 120mm
Main drive motor 5.5kw or 7.5kw
Rapid traverse motor 250w
Coolant pump motor 125w
Packing size 1000mm:2420mm×1150mm×1800mm   1500mm:2920mm×1150mm×1800mm      2000mm:3460mm×1150mm×1800mm    3000mm:4720mm×1150mm×1800mm
N.W/G.W 1000mm:1560/2210kgs 1600/2250kgs 1640/2290kgs
1500mm:1770/2410kgs 1830/2470kgs 1870/2530kgs
2000mm:2010/2780kgs 2070/2820kgs 2130/2860kgs
3000mm:2400/3200kgs 2460/3260kgs 2580/3400kgs

Standard accessories:

  • 3 jaw chuck 200mm

  • 4 jaw chuck 250mm

  • Face plate

  • Coolant system

  • Working light

  • Foot brake

  • Rapid travel

  • Steady rest

  • Follow rest

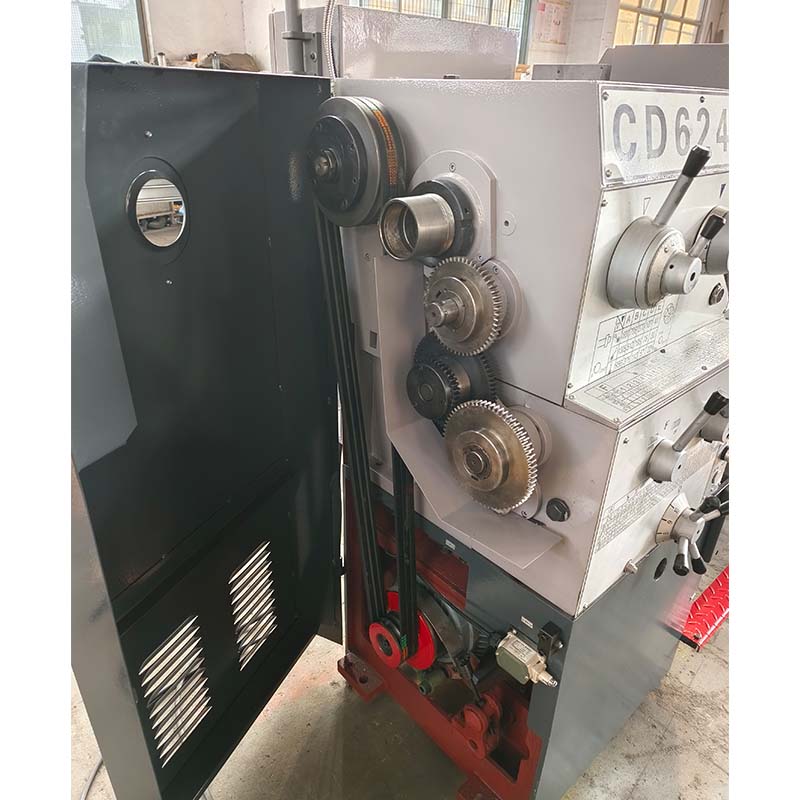

  • Change gears set

  • Tool box& tools
