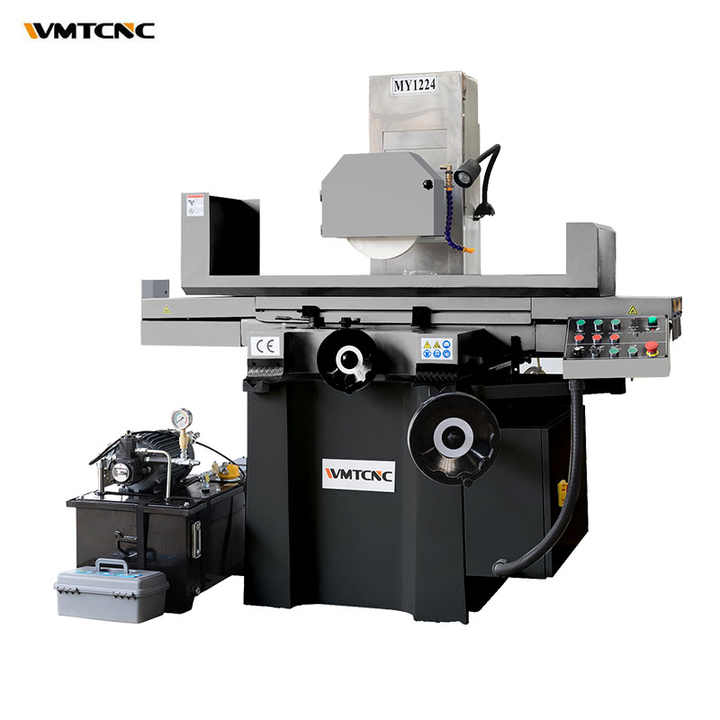

MY1224
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Features:
1. Machine reasonable structure, good rigidity, good looks, easy to operate.
2. Table movement in longitudinal is the hydraulic transmission.
3. Spindle motor no vibration and low noise.
4. X-axis moving by hydraulic driven.
5. Y-axis built-in power feed.
6. Z-axis moving by rapid elevating motor.
| Spcifications | MY1224 |
| Worktable size | 600×300 mm |
| Max.travel of table | 640×320 mm |
| Table max.cutting area | 640×320 mm |
| T-solt(number×width) | 1×14 mm |
| Distance from table surface to spindle center | 490 mm |
| Wheel size(dia×width×bore) | 300x30x75 mm |
| Spindle speed | 1440 rpm |
| Table longitudinal(left and right)speed | 3-20 m/min |
| Worktable cross continuous speed | 150 mm/min |
| Worktable cross intermittent speed | 0-5 mm/min |
| Worktable cross handweel-storke per revolution | 4 mm |
| Worktable cross handweel-storke per grid | 0.02 mm |
| Worktable vertical handweel-storke per revolution | 2 mm |
| Worktable vertical handweel-storke per grid | 0.01 mm |
| Spindle motor | 4 kw |
| Cooling motor | 0.4 kw |
| Hydraulic motor | 1.5 kw |
| Working pressure | 3 mpa |
| Oil tank capacity | 80 L |
| Max.flow capacity | 18 L/min |
| The mechanical surface of the base of parallelism | 300/0.004 mm |
| Surface roughness | Ra0.32 μm |
| N.W | 1500 kg |
| G.W | 1650 kg |
| Machine size | 1960×1630×1870 mm |
