CK6163x1500
WMTCNC
| Quantity: | |
|---|---|
Product Description
Main Features:
1. Big torque, high precision spindle.
2. Hydraulic chuck, easy and reliable operation.

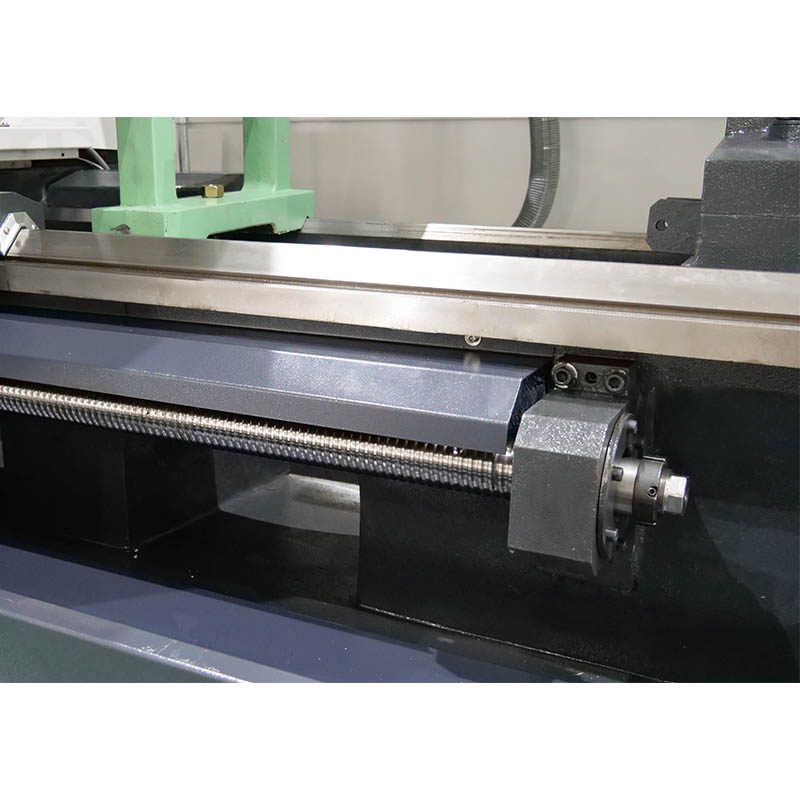

3. Z axis feed is directly connected which has high transmission accuracy an d high positioning accuracy.

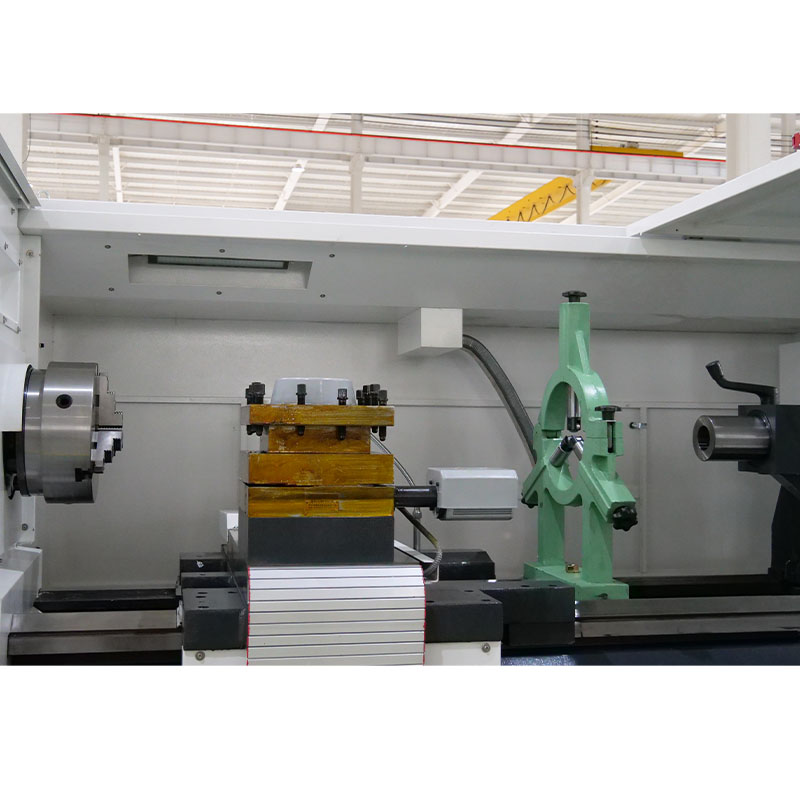

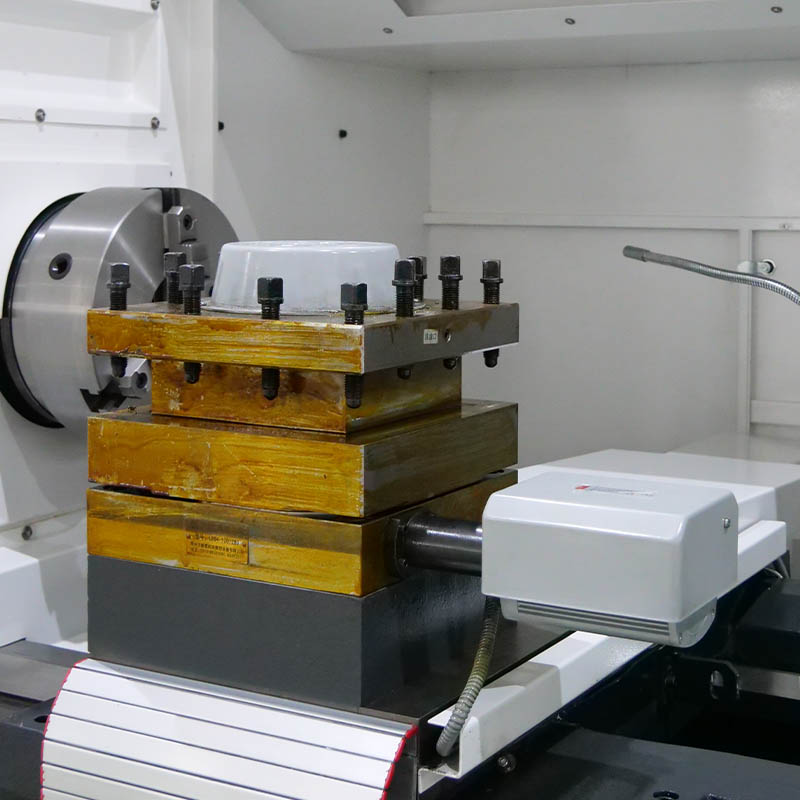

4. Vertical 4-position electric toolpost with high positioning accuracy.
| Specification | CK6163 |
| Capacity | |
| Chuck size | 12'' |
| Max. swing dia. over bed | 630mm |
| Max. swing dia. over slide | 420mm |
| Distance between center | 1000/1500/2000/3000mm |
| Width of bed | 400mm |
| Spindle | |
| Spindle speed range | 45-180/180-750/600-1600rpm |
| Spindle bore | Ф80mm,*Ф105mm |
| Max. dia. of through-hole | Ф60mm,*Ф77mm |
| Spindle nose | A2-8(*105mm for C-11) |
| Spindle taper | Φ90mm 1:20,*105mm for 120mm 1:20 |
| Axis | |
| X axis travel | 360mm |
| Z axis travel | 1000/1500/2000/3000mm |
| X/Z axis rapid traverse | 4/6m/min |
| Turret | |
| Type | Electrical type |
| No. of tool stations | 4,*6,*8 position |
| Max. section of tool | 25x25mm |
| Tailstock | |
| External diameter | Φ75mm |
| Travel of tailstock quill | 150mm |
| Taper of tailstock quill | MT5 |
| Motor | |
| Spindle motor power | 11kw |
| Coolant pump power | 90w |
| Machine Dimensions | |
| Overal dimension (L×W×H) | 2750/3250/3700/4600x1800X2000mm |
| Packing size(L×W×H) | 2900/3400/3800/4700x2000x2250mm |
| N.w | 2700/2900/3300/3800kg |
| G.w | 2900/3200/3600/4300kg |
