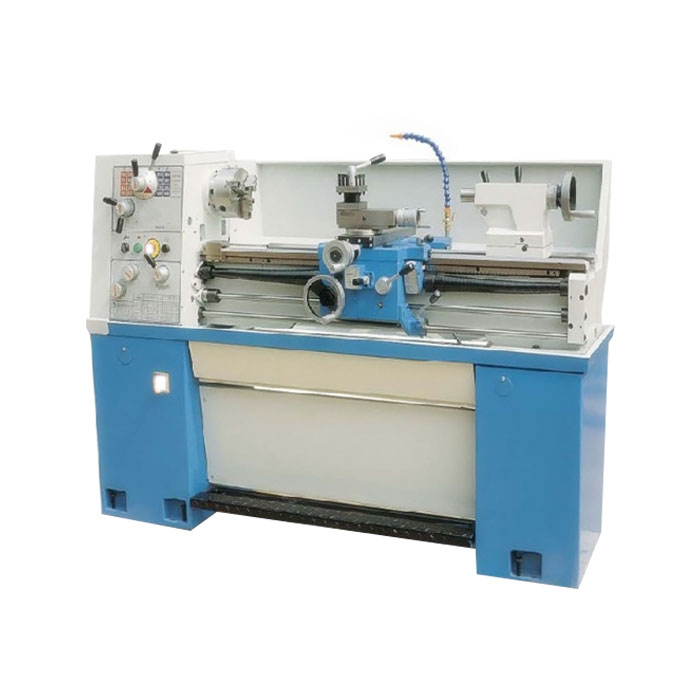

GH1340W
WMTCNC
| Quantity: | |
|---|---|
Product Description
Features:
1) Precision ground and hardened bed ways.
2) The spindle is supported with precision roller bearings.
3) Headstock gears are made of high quality steel, ground and hardened.
4) Easy operating speed change levers.
5) With or without cabinet according to requirement.
| Specification | GH1340W | |
| General | Max.Swing.over bed | Φ330mm(13") |
| Capacity | ||
| Max.Swing.over cross slide | Φ185mm(7-7/25") | |
| Max.Swing.over gap | Φ480mm(19") | |
| Bed width | 260mm(10") | |
| Distance between centers | 1000mm(40") | |
| Spindle | Taper of spindle bore | MT5 |
| spindle bore | Φ40(1-1/2") | |
| Steps of spindle speeds | 12steps | |
| Range of spindle speeds | 40-1800rpm | |
| Spindle nose | D-4 | |
| Metric thread range | 0.45~7.5mm(22kinds) | |
| Threading | ||
| and | ||
| Feeding | ||
| Inch screw thread range | 4~112TPI(40kinds) | |
| Range of longitudinal feeds | 0.03-0.688mm(0.0011-0.0271" in/rev) | |
| Range of cross feeds | 0.015-0.220mm(0.0003" -0.01" in/rev) | |
| Leadscrew | Diameter of leadscrew | Φ22mm(7/8") |
| Pitch thread of leadscrew | 4mm(8T.P.I) | |
| Travel of tailstock quill | 120mm(4-3/4") | |
| Tailstock | ||
| Diameter of tailstock quill | 45mm(1-25/32") | |
| Taper of tailstock quill | MT3 | |
| Power | Main motor power | 2.4(3HP) |
| Coolant pump motor power | 0.04(0.055HP) | |
| Overall dimensions of lathe(L×W×H) | 1900×740×1150mm | |
| Packing size of lathe(L×W×H) | 1970×760×1460mm | |
| Net Weight | 960kgs | |
| Gross Weight | 1090kgs | |
